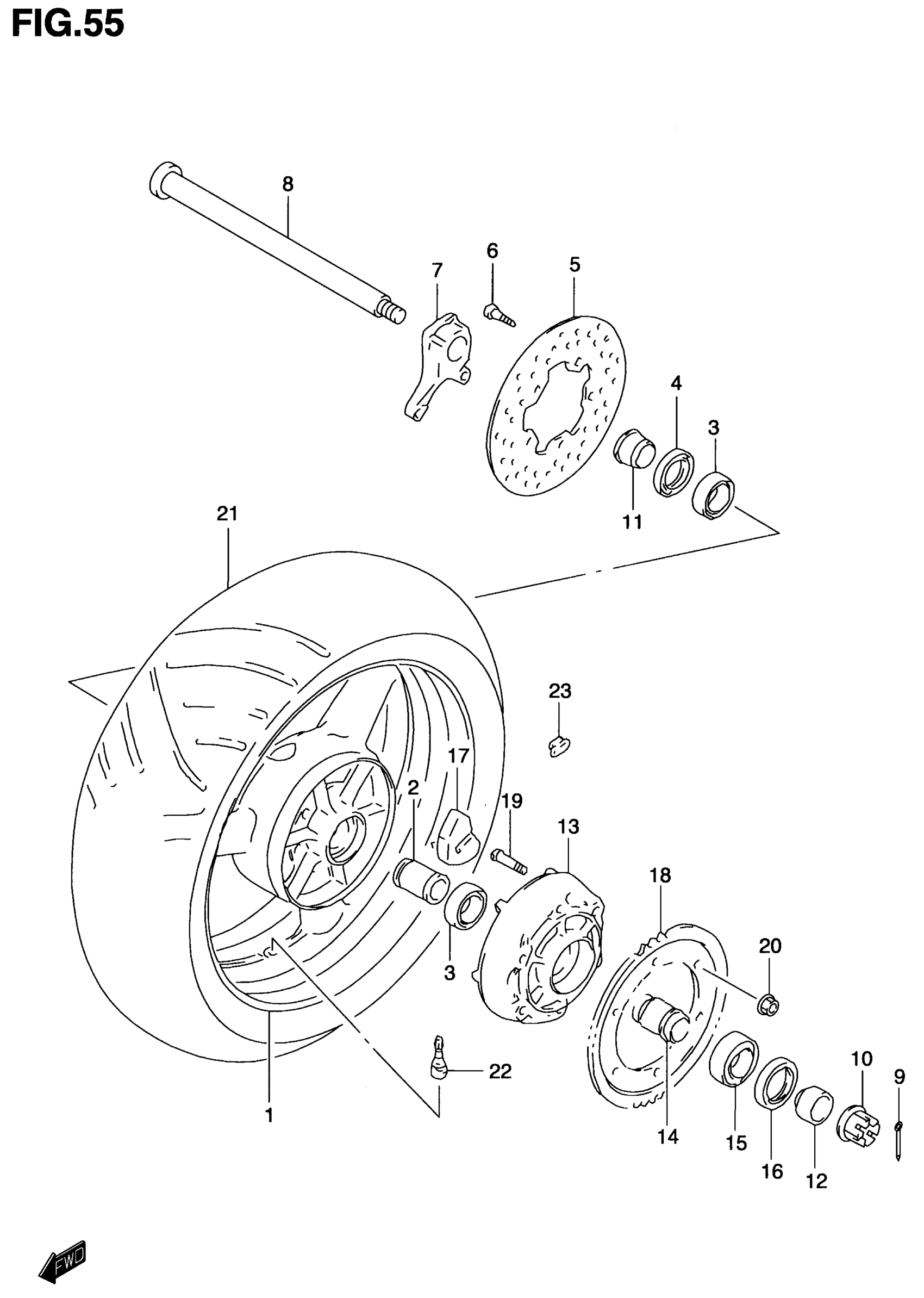

Suzuki TL1000S (2001) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17XMT6.00)(GOLD) | MODEL V/W/X ?64111-33E10-35B This part replaces 64111-33E00-35B.

64111-33E10-35B

Unavailable

1

WHEEL, REAR (17XMT6.00)(GOLD) | MODEL Y

64111-33E10-35B

Unavailable

1

WHEEL, REAR (17XMT6.00) (SILVER) | MODEL K1 MODEL W ~F.NO.W2100483 ?64731-33E10 This part replaces 64111-33E10-Y6G.

64111-33E11-Y6G

Unavailable

2

SPACER, HUB BEARING | MODEL W F.NO.W2100484~

64731-33E10

$67.25

2

SPACER, HUB BEARING | MODEL X/Y/K1

64731-33E10

$67.25

3

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

$31.25

4

SEAL, RH (38X58X7)

09285-38001

$8.47

5

DISC, REAR BRAKE

69211-33E10

$324.10

6

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

7

BRACKET, REAR CALIPER

69721-33E00

Unavailable

8

AXLE, REAR

64711-33E30

Unavailable

9

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

10

NUT

09141-25001

$23.94

11

SPACER, AXLE RH

64741-33E00

$25.30

12

SPACER, AXLE LH

64751-33E00

$28.73

13

DRUM, REAR SPROCKET

64611-33E02

Unavailable

14

RETAINER, SPROCKET DRUM

64733-33E00

$32.86

15

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

16

SEAL (39X65X7)

09285-39001

$10.62

17

ABSORBER, HUB SHOCK

64651-17E00

$15.63

18

SPROCKET, REAR (NT:38)

64511-02F00

$95.85

19

BOLT (10X38)

09119-10059

$3.12

20

NUT

08319-31107

$2.73

21

NO DESCRIPTION AVAILABLE | PURCHASE LOCALLY This part replaces 65110-02F00.

65110-02F01

Unavailable

22

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

23

BALANCER (10G)

55411-00A00

$1.49

23

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
