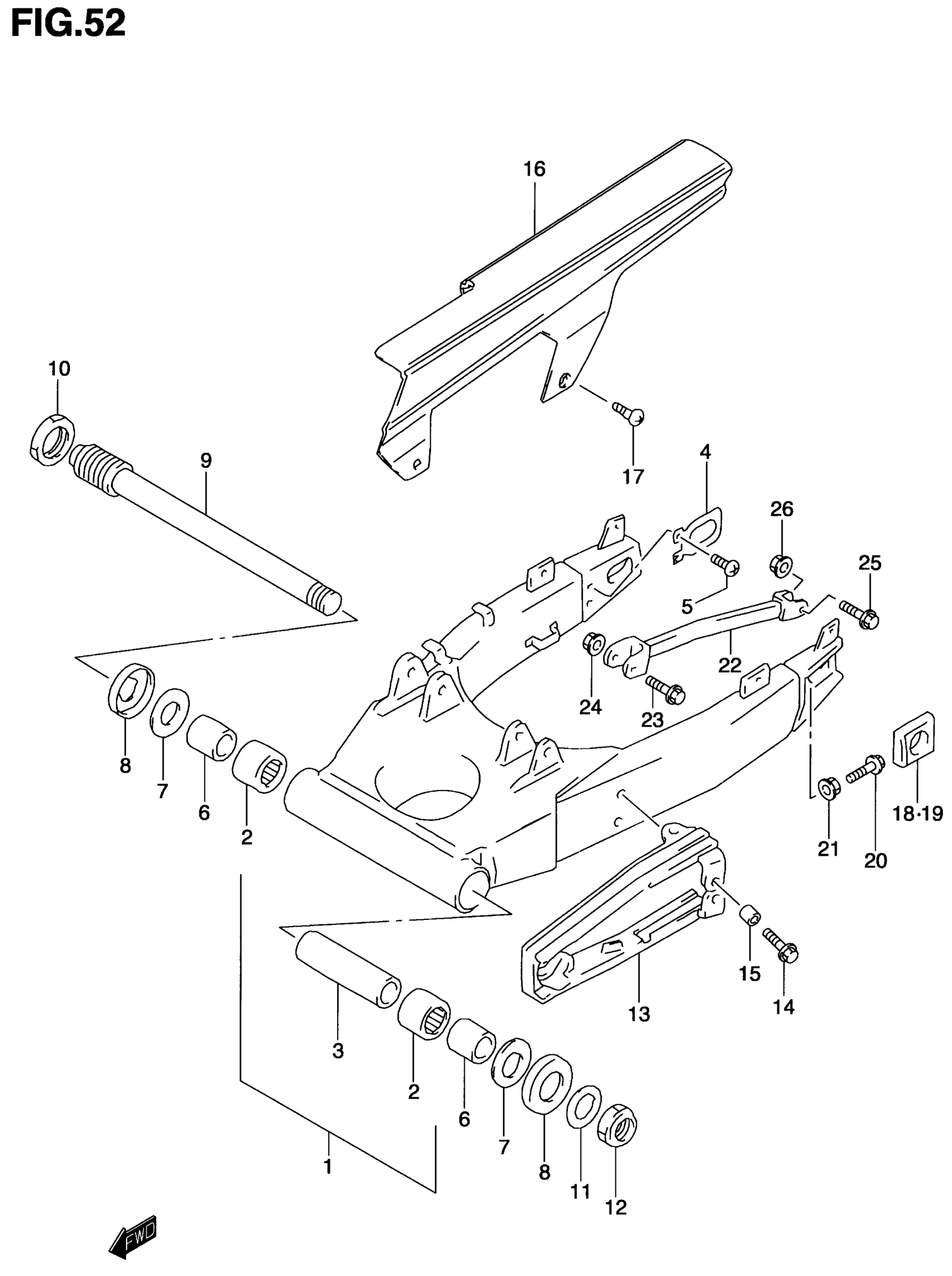

Suzuki TL1000S (2001) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 3

61000-02F10

Unavailable

2

BEARING, PIVOT (30X40X25)

09263-30040

$38.65

3

SPACER, CENTER | MODEL V MODEL W ~F.NO.W2100483 ?61281-33E10 This part replaces 61280-33E00.

61281-33E20

$56.48

3

SPACER, CENTER | MODEL W F.NO.W2100484~ This part replaces 61281-33E10.

61281-33E20

$56.48

3

SPACER, CENTER | MODEL X/Y/K1 This part replaces 61281-33E10.

61281-33E20

$56.48

4

PLATE, BRACKET

61124-33E00

$6.85

5

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

6

SPACER,RR SWGARM PIVOT BEARIN This part replaces 61251-17E10.

61251-17E20

$13.12

7

WASHER, THRUST

08211-25481

$5.64

8

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$9.05

9

SHAFT, PIVOT

61211-33E00

Unavailable

10

NUT, PIVOT BOLT

61214-40C31

$56.90

11

WASHER

09160-25070

$4.77

12

NUT This part replaces 09159-25001.

09159-25003

$31.85

13

BUFFER,CHAIN TO This part replaces 61273-02F00.

61273-02F01

Unavailable

14

BOLT (6X20)

09116-06152

$2.36

15

SPACER (6.5X9X5)

09180-06306

$2.03

16

CASE, CHAIN

61310-34E00

$94.72

17

SCREW (6X16)

09139-06083

$2.26

18

WASHER, CHAIN ADJUSTER RH

61445-33E00

$53.73

19

WASHER, CHAIN ADJUSTER LH

61446-33E10

$53.98

20

BOLT (8X50)

09100-08287

$3.10

21

NUT This part replaces 08316-10083.

08316-1008B

$2.66

22

TORQUE LINK, REAR

64310-33E00

Unavailable

23

BOLT, FRONT (8X44)

09111-08083

Unavailable

24

NUT

08319-31087

$2.32

25

BOLT, REAR (10X37)

09103-10019

$2.63

26

NUT

08319-31107

$2.73
