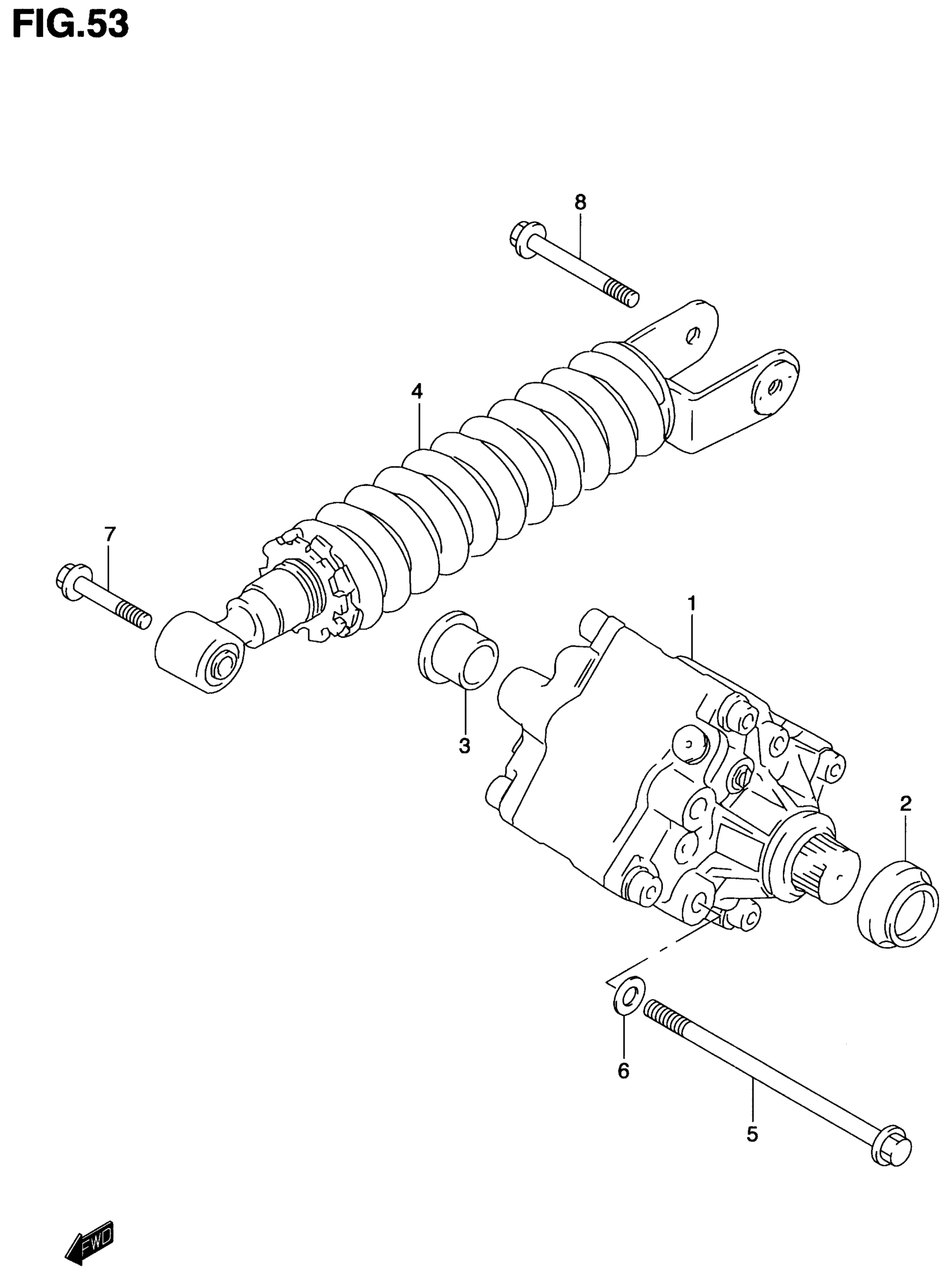

Suzuki TL1000S (2001) REAR DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, REAR | MODEL V E3 This part replaces 62110-02F20.

62110-02F00

Unavailable

1

DAMPER ASSY, REAR | MODEL V E28

62110-02F00

Unavailable

1

DAMPER ASSY, REAR | MODEL W/X/Y This part replaces 62110-02F40.

62110-02F41

Unavailable

1

DAMPER ASSY, REAR | MODEL K1 E3,E33

62110-02F50

Unavailable

1

DAMPER ASSY, REAR | MODEL K1 E28; Includes Item(s) 2 - 3

62110-02F41

Unavailable

2

CAP

62138-02F00

Unavailable

3

CAP

62139-02F00

Unavailable

4

UNIT ASSY, REAR SPRING (RED) | MODEL V

62200-02F00-37W

Unavailable

4

UNIT ASSY, REAR SPRING (RED) | MODEL W/X/Y/K1

62200-02F20-37W

Unavailable

5

BOLT, DAMPER (10X130)

09103-10122

$8.38

6

WASHER, DAMPER (10.2X20X1.0)

09164-10008

$1.71

7

BOLT, UPPER (10X54)

09103-10101

$4.00

8

BOLT, LOWER (10X60)

09103-10050

Unavailable
