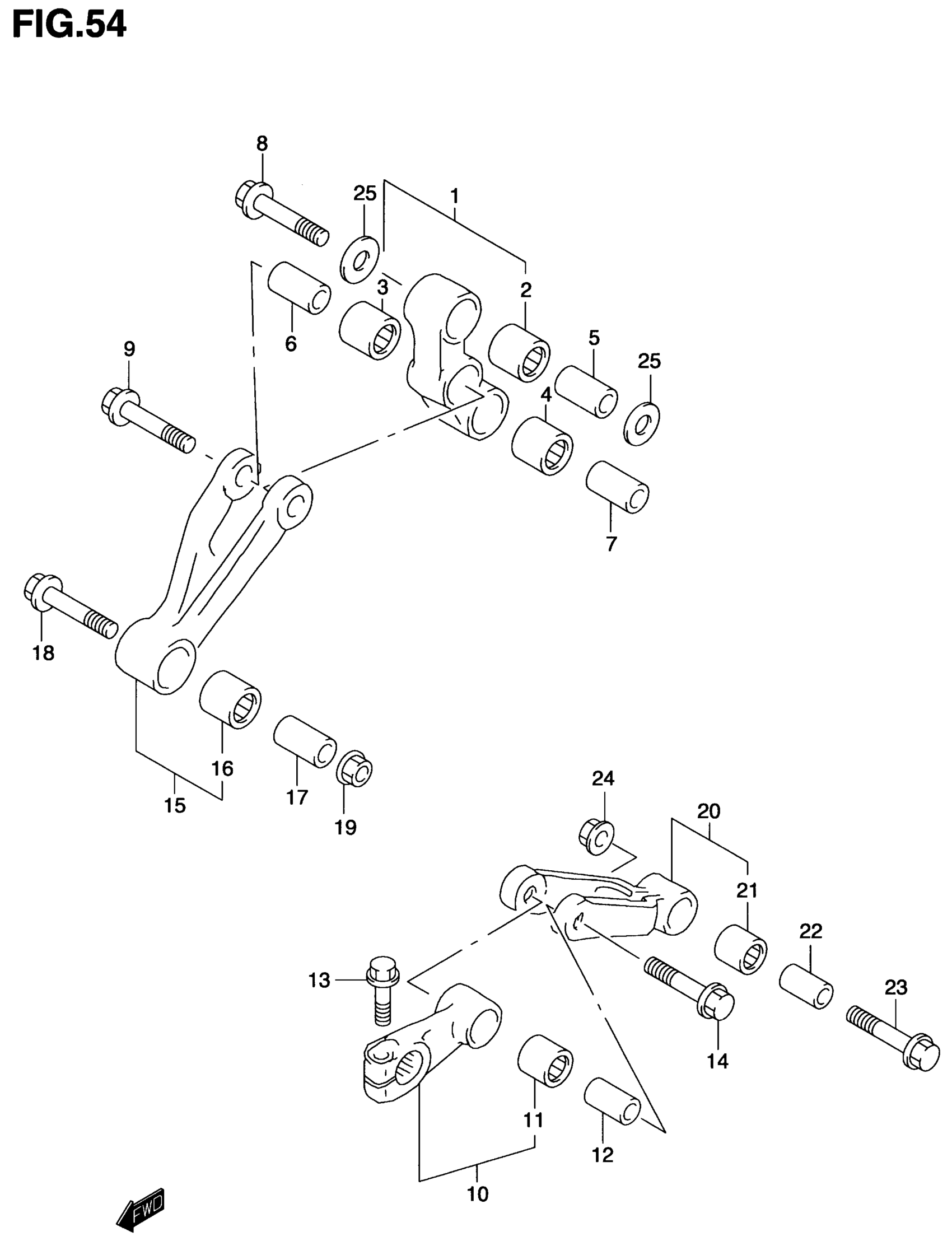

Suzuki TL1000S (2001) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-02810

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$16.32

3

.BEARING This part replaces 09263-20074.

09263-20116

$28.11

4

.BEARING This part replaces 09263-17039.

09263-17058

$14.85

5

SPACER, LEVER FRONT (12X20X34)

62317-27C10

$15.78

6

SPACER, LEVER CENTER (12X20X34)

62317-27C10

$15.78

7

SPACER, LEVER REAR (10X17X45)

62684-02F00

Unavailable

8

BOLT, LEVER FRONT (12X65)

62658-01C60

$15.28

9

BOLT, LEVER CENTER (12X62)

62668-42A02

$12.03

10

ARM SET, REAR CUSHION | Includes Item(s) 11

62600-02860

Unavailable

11

BEARING (14X20X25)

09263-14025

Unavailable

12

SPACER, ARM (10X14X29)

62646-02F00

Unavailable

13

BOLT, ARM (8X31)

09103-08042

$5.17

14

BOLT, ARM (10X48)

62648-14500

$4.09

15

ROD SET, REAR CUSHION RH | Includes Item(s) 16

62650-02810

Unavailable

16

.BEARING This part replaces 09263-20074.

09263-20116

$28.11

17

SPACER, ROD RH (12X20X34)

62317-27C10

$15.78

18

BOLT, ROD RH (12X72)

62668-27A00

$13.87

19

NUT This part replaces 08319-31128.

08319-3112A

$3.38

20

ROD SET, REAR CUSHION LH | Includes Item(s) 21

62640-02810

Unavailable

21

BEARING (14X20X25)

09263-14025

Unavailable

22

SPACER, ROD LH (10X14X29)

62646-02F00

Unavailable

23

BOLT (10X58) This part replaces 62311-14501.

09103-10428

$5.52

24

NUT

08319-31107

$2.73

25

WASHER, LEVER FRONT

09181-20186

$2.88
