2001 Suzuki TL1000S Front Wheel Diagram

← All diagrams

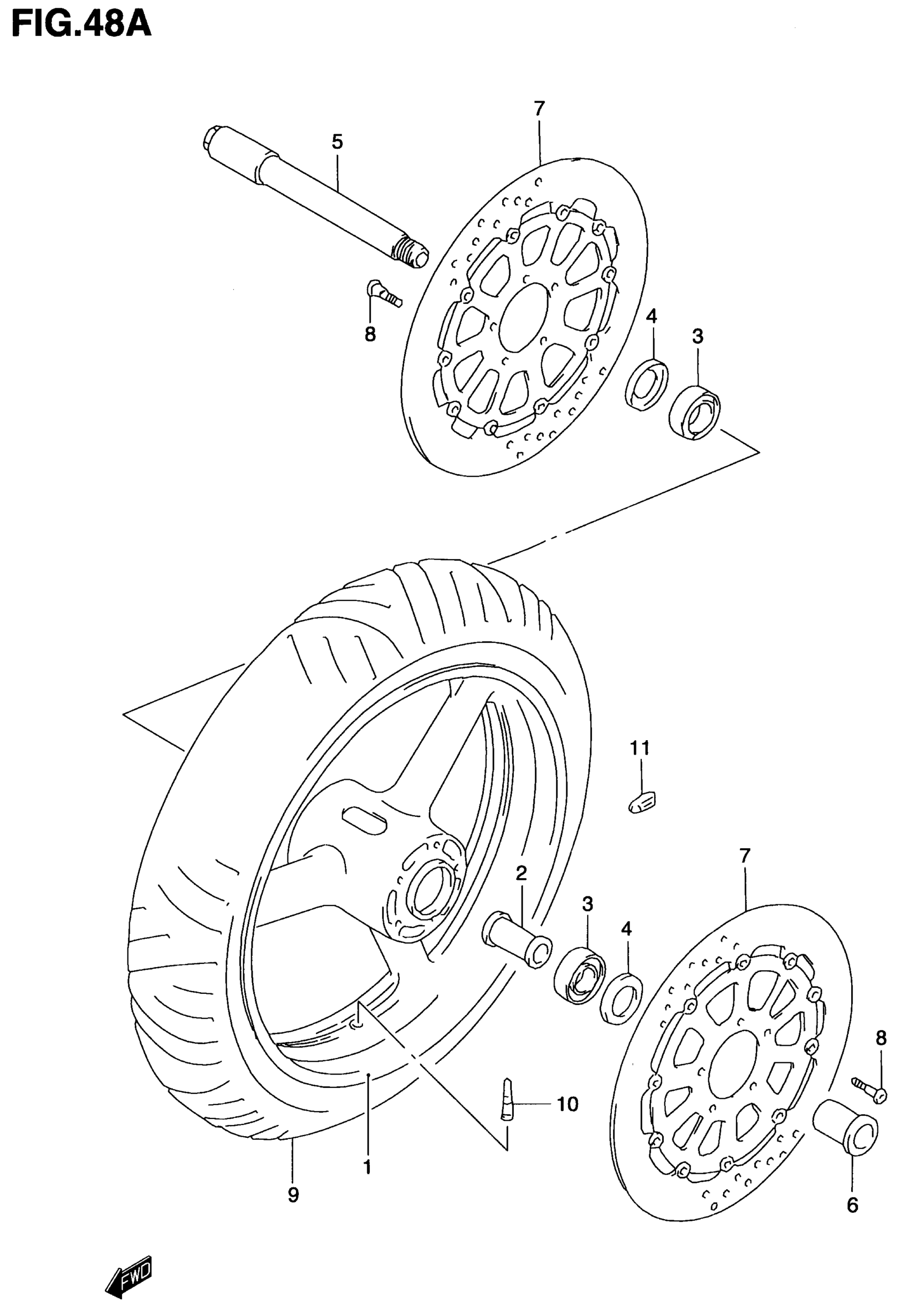

Find the part on the Front Wheel diagram for your 2001 Suzuki TL1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki TL1000S Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (17XMT3.50) (SILVER) This part replaces 54111-33E10-Y6G.

54111-33E11-Y6G

1
Out of stock

2

SPACER, HUB BEARING

54731-33E10

1
Out of stock

3

BEARING (25X52X15)

09262-25061

2
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

AXLE, FRONT

54711-33E00

1
Out of stock

6

NUT, AXLE

54712-33E00

1
Out of stock

7

DISC, FRONT BRAKE

59210-33E20

2
Out of stock

8

BOLT (8X33) This part replaces 09106-08125.

09106-08148

10
Out of stock

9

TIRE, FRONT 120/70 ZR17(58W),METZELER | PURCHASE LOCALLY MEZ1A FRONT

55110-02F00

1
Out of stock

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

11

BALANCER (10G)

55411-00A00

1
Out of stock

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

1
Out of stock
