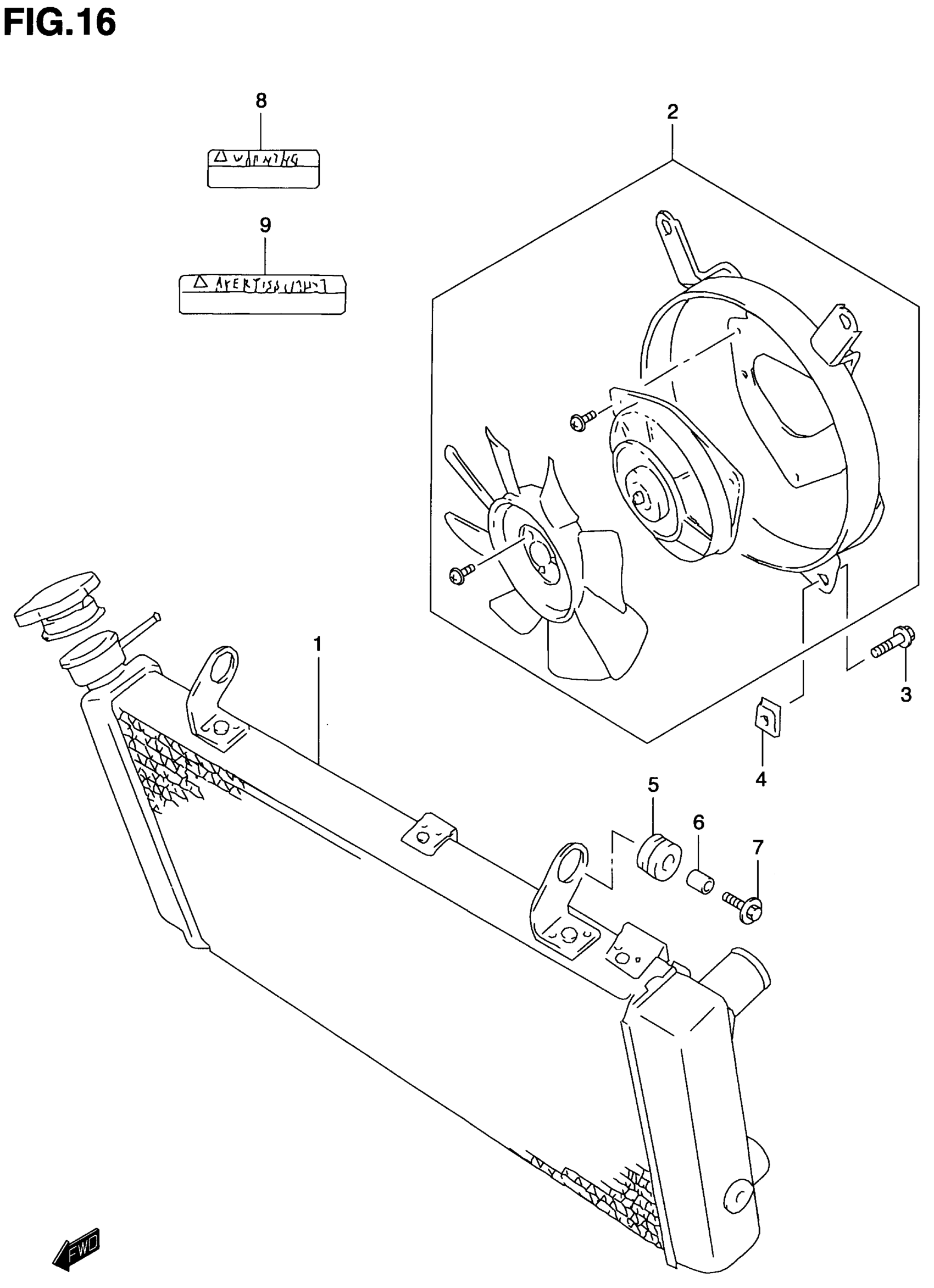

Suzuki TL1000S (2001) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER | MODEL V

17710-02F00

Unavailable

1

RADIATOR ASSY, WATER | MODEL W/X/Y/K1

17710-02F10

Unavailable

2

FAN ASSY

17800-02F00

Unavailable

3

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

4

NUT, FAN ASSY | MODEL V/W This part replaces 17762-39A00.

09148-06015

$3.04

4

NUT, FAN ASSY | MODEL X/Y/K1

09148-06015

$3.04

5

CUSHION

09320-10042

$3.12

6

SPACER

09180-06290

$2.35

7

BOLT (6X20) | MODEL V

09118-06097

$2.50

7

BOLT (6X20) | MODEL W/X/Y/K1

09118-06097

$2.50

8

LABEL, COOLING FAN This part replaces 17991-02F00.

17991-02F02

$4.48

9

LABEL, COOLING FAN | E28

17991-02F10

Unavailable
