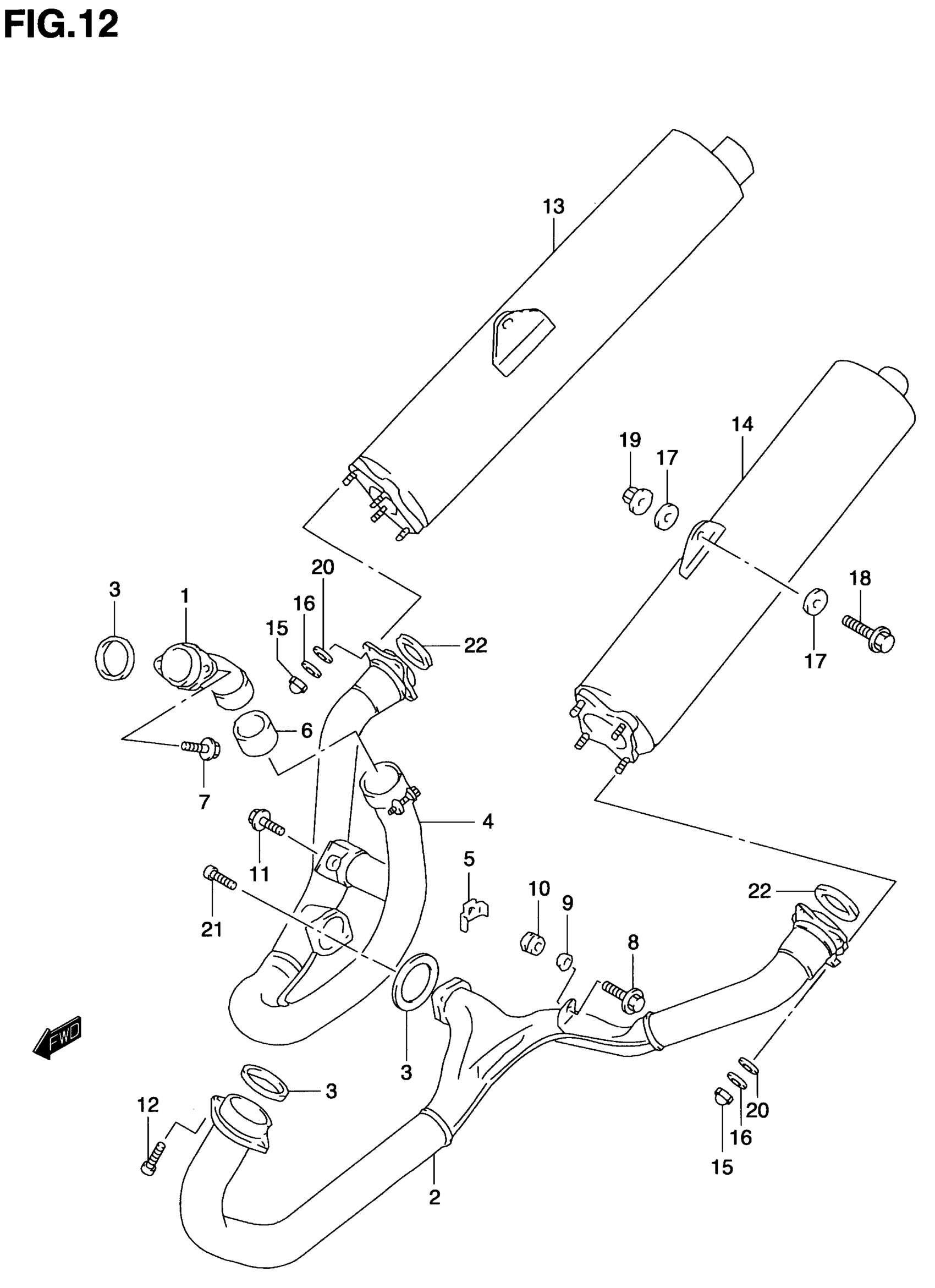

Suzuki TL1000S (2001) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-02F00

Unavailable

2

PIPE, EXHAUST LH

14160-02F00

Unavailable

3

GASKET

14181-31D00

$10.28

4

PIPE, EXHAUST JOINT

14210-02F00

Unavailable

5

NUT, EXHAUST SUPPORT

14414-02F00

Unavailable

6

CONNECTOR

14771-02F00

$21.84

7

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

8

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

9

SPACER

09180-08152

$5.83

10

CUSHION

09320-12048

$5.11

11

BOLT

01550-08257

$2.81

12

BOLT | MODEL V

07130-08257

$3.43

12

BOLT (8X25) | MODEL W/X/Y/K1 This part replaces 09106-08104.

09106-08165

$4.03

13

BODY, MUFFLER RH

14310-02F00-H01

Unavailable

14

BODY, MUFFLER LH

14340-02F00-H01

Unavailable

15

NUT | MODEL V/W/X This part replaces 09159-08101.

09159-08116

$9.00

15

NUT | MODEL Y/K1 This part replaces 09159-08115.

09159-08116

$9.00

16

WASHER (8.5X18X2.0) This part replaces 09160-08114.

09160-08120

$2.19

17

WASHER This part replaces 09160-08131.

09160-08130

$2.03

18

BOLT

01550-08357

$3.49

19

NUT This part replaces 08361-25088.

08361-2508A

$1.97

20

O RING

09280-08012

$3.68

21

BOLT, EXHAUST JOINT

14118-73G01

$13.47

22

GASKET, MUFFLER JOINT

14181-02F00

$6.93
