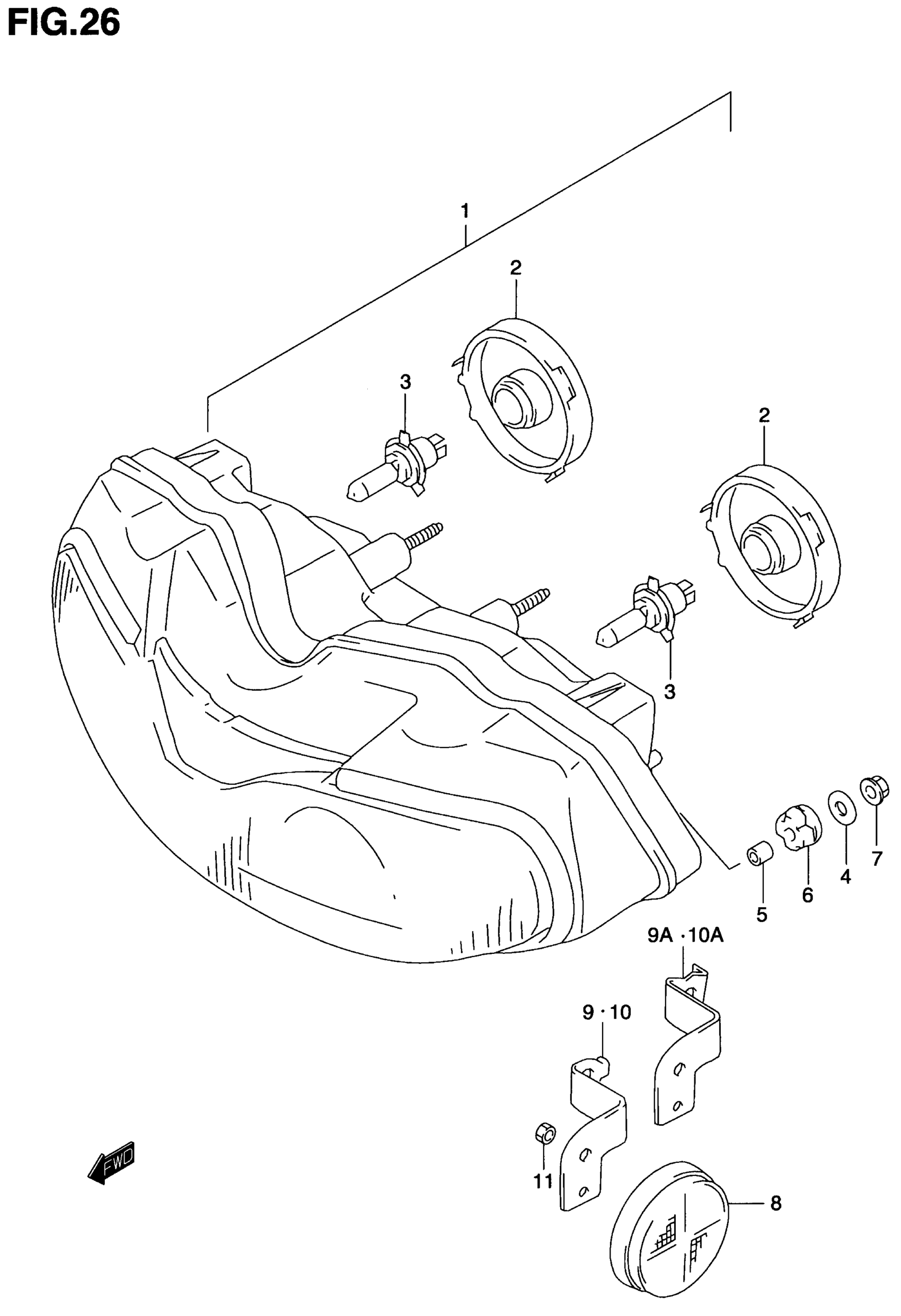

Suzuki TL1000S (2001) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL V/W/X This part replaces 35100-02F30-999.

35100-02F31-999

Unavailable

1

HEADLAMP ASSY | MODEL Y/K1; Includes Item(s) 2

35100-02F31-999

Unavailable

2

SOCKET, COVER

35125-02F00

$17.28

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

4

.WASHER (6.5X20X1.6) | MODEL V/W/X

09160-06088

$1.65

4

WASHER (6.5X18X1.60) | MODEL Y/K1

09160-06109

$1.49

5

SPACER (6.5X9X12.5)

09180-06267

$4.10

6

CUSHION

09320-09010

$2.84

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

REFLEX REFLECTOR ASSY, FR

35950-14A00

$16.94

9

BRACKET, FR RH | MODEL V/W

35956-17D00

Unavailable

9A

BRACKET, FR RH | MODEL X/Y/K1

35956-02F00

Unavailable

10

BRACKET, FR LH | MODEL V/W

35957-17D00

Unavailable

10A

BRACKET, FR LH | MODEL X/Y/K1

35957-02F00

Unavailable

11

NUT This part replaces 08310-00053.

08310-0005A

$1.84
