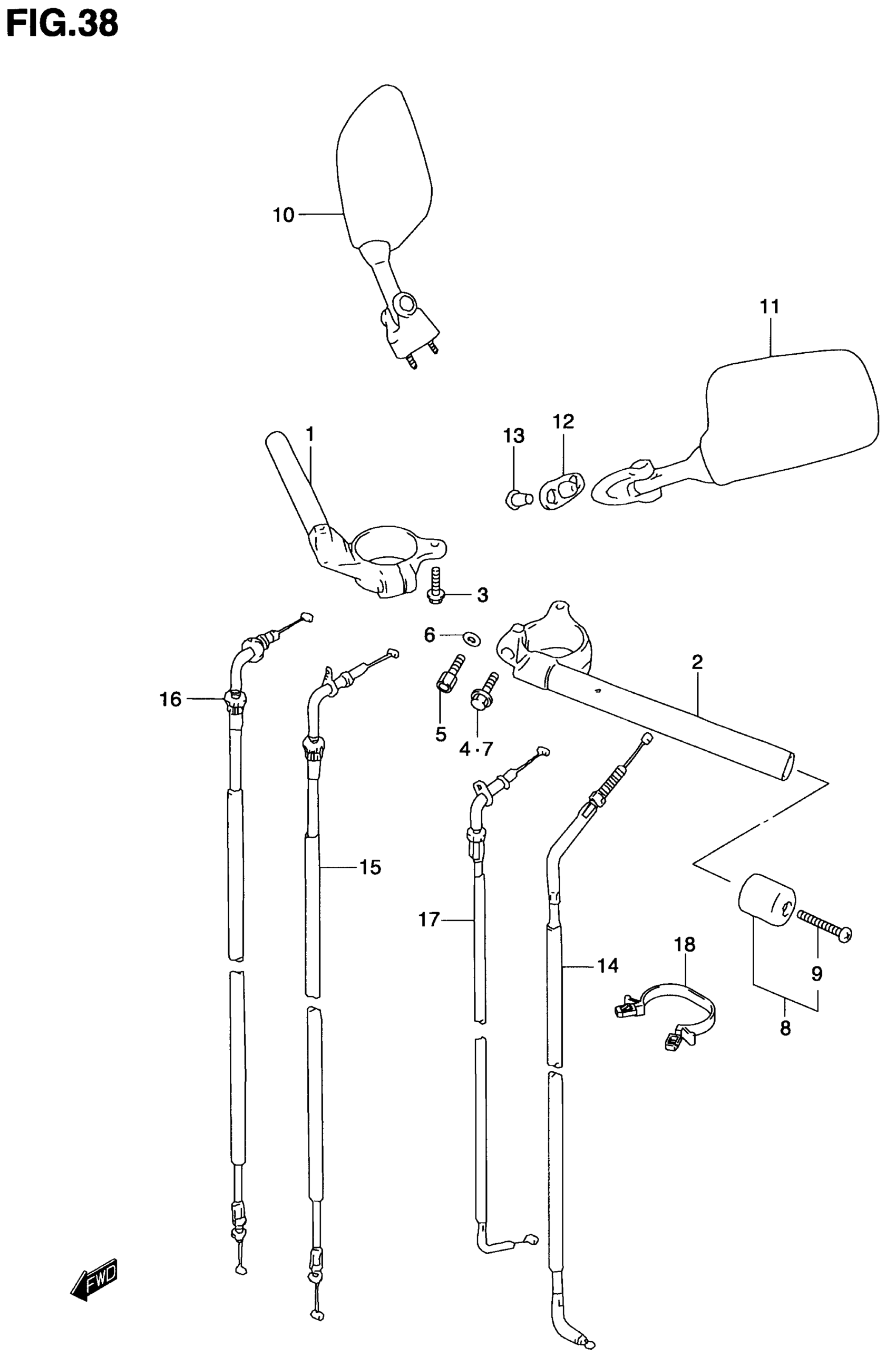

Suzuki TL1000S (2001) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-02F00

Unavailable

2

HANDLEBAR, LH

56151-02F00

Unavailable

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

BOLT, HANDLEBAR RH | MODEL V

09103-08269

$2.71

5

BOLT, HANDLEBAR LH | MODEL V

56121-02F00

Unavailable

6

WASHER | MODEL V This part replaces 08322-01083.

08322-0108A

$1.92

7

BOLT, HANDLEBAR | MODEL W/X/Y/K1

09103-08269

$2.71

8

BALANCER SET, HANDLEBAR | Includes Item(s) 9

56200-04821

$45.92

9

SCREW This part replaces 02122-06603.

02122-0660B

$3.04

10

MIRROR ASSY, REAR VIEW RH

56500-22D11

Unavailable

11

MIRROR ASSY, REAR VIEW LH

56600-22D11

$242.27

12

CUSHION

94576-22D00

$5.44

13

NUT

56619-17C00

$7.72

14

CABLE ASSY, CLUTCH

58200-02F00

Unavailable

15

CABLE ASSY, THROTTLE NO.1 | MODEL V

58300-02F00

Unavailable

15

CABLE ASSY, THROTTLE NO.1 | MODEL W/X/Y/K1

58300-02F01

Unavailable

16

CABLE ASSY, THROTTLE NO.2 | MODEL V

58300-02F10

Unavailable

16

CABLE ASSY, THROTTLE NO.2 | MODEL W/X/Y/K1

58300-02F11

Unavailable

17

CABLE, STARTER

58410-02F00

Unavailable

18

CLAMP

09403-24302

Unavailable
