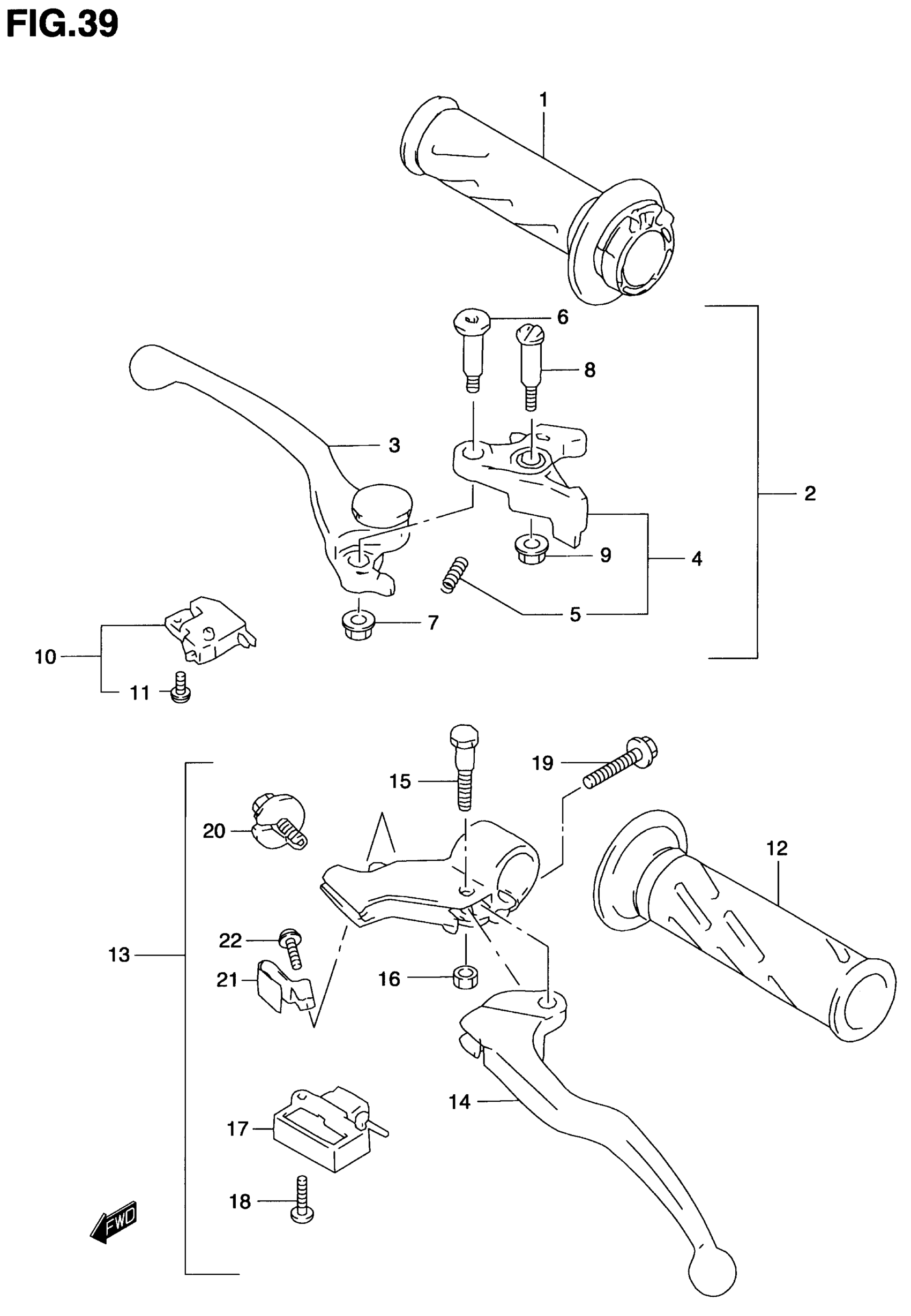

Suzuki TL1000S (2001) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, BRAKE | MODEL V This part replaces 57300-32C01.

57300-32C10

$78.02

2

LEVER ASSY, BRAKE | MODEL W/X/Y/K1; Includes Item(s) 3 - 9

57300-32C10

$78.02

3

LEVER, ADJUST

57420-32C00

$28.92

4

KNOCKER | MODEL V/W This part replaces 57430-32C00.

57430-32C10

$60.37

4

KNOCKER | MODEL X/Y/K1

57430-32C10

$60.37

5

SPRING

57438-32C00

$5.67

6

BOLT, LEVER

57437-32C01

$8.60

7

NUT This part replaces 08319-31063.

08319-3106A

$2.03

8

BOLT, KNOCKER

57431-17C00

$7.11

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

13

LEVER ASSY,CLUT | MODEL V/W/X/Y This part replaces 57500-33E20.

57500-40F11

$51.48

13

LEVER ASSY,CLUT | MODEL K1; Includes Item(s) 14 - 21 This part replaces 57500-33E21.

57500-40F11

$51.48

14

LEVER ASSY, CLUTCH | MODEL V/W/X/Y This part replaces 57621-33E00.

57621-40F00

$18.77

14

LEVER ASSY, CLUTCH | MODEL K1 This part replaces 57621-33E01.

57621-40F00

$18.77

15

..BOLT,LEVER PIVOT | MODEL V/W/X/Y This part replaces 57431-45C00.

57431-21D11

$9.76

15

..BOLT,LEVER PIVOT | MODEL K1 This part replaces 57431-45C01.

57431-21D11

$9.76

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

17

.SWITCH,CLUTCH

57560-05A00

$12.15

18

SCREW This part replaces 02122-03208.

02122-0320A

$2.14

19

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

20

.NUT, CABLE ADJUSTER This part replaces 57641-33E20.

57641-33E21

$35.94

21

SPRING

57644-33E00

$9.07

22

SCREW, SPRING

57642-33E00

$4.02
