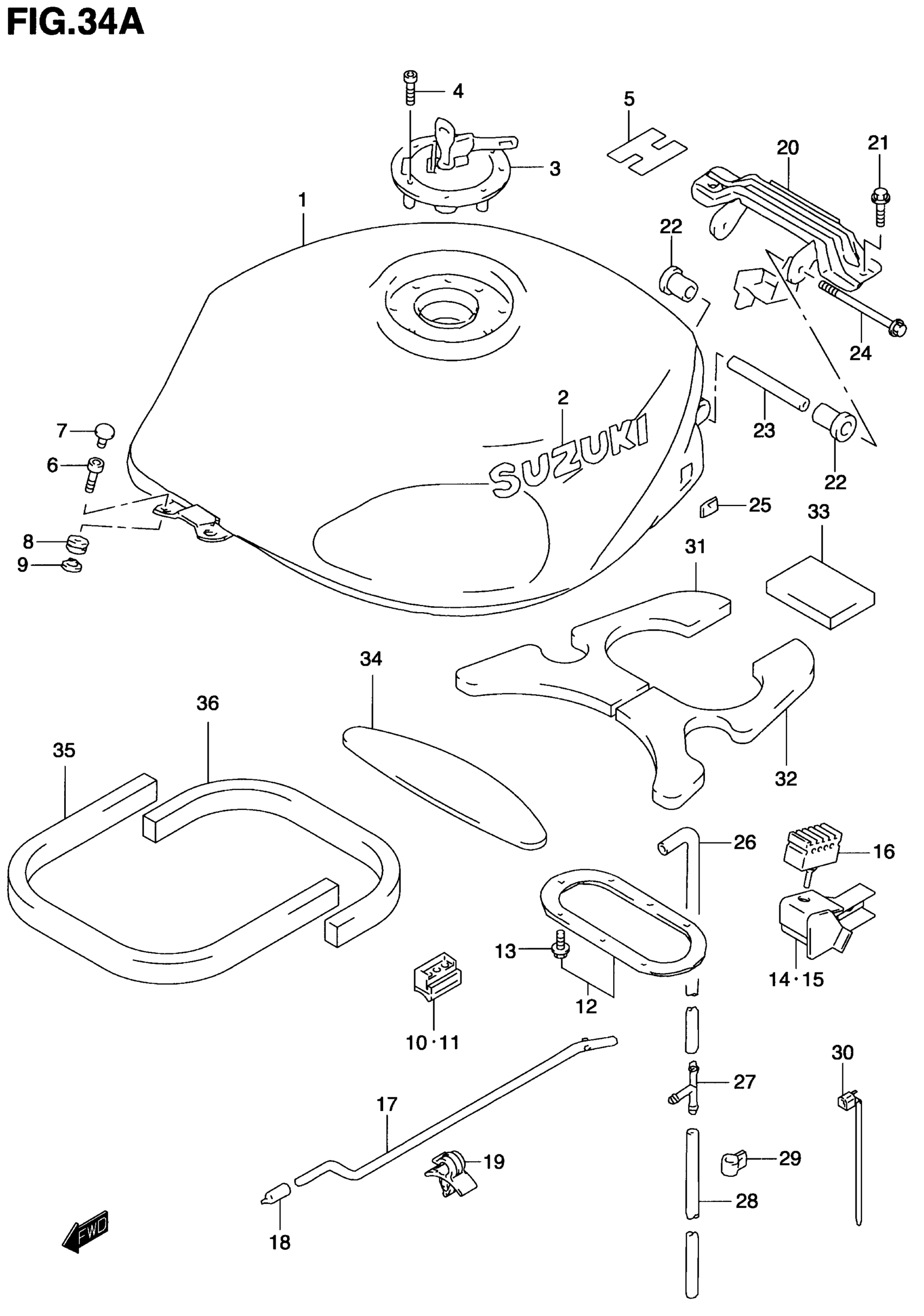

Suzuki TL1000S (2001) FUEL TANK (MODEL Y/K1) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 44100-02F01-Y7M.

44100-02F90-Y7M

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL Y E28

44100-02F01-Y9H

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K1

44100-02F01-Y7L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 44100-02F01-YC2.

44100-02F90-YC2

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL Y E33 This part replaces 44100-02F11-Y7M.

44100-02F40-Y7M

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K1 E33

44100-02F11-Y7L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K1 E33; Includes Item(s) 2 - 2 This part replaces 44100-02F11-YC2.

44100-02F40-YC2

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68111-12C00-0AT.

68111-12CA0-0AT

Unavailable

2

EMBLEM (BLACK) | MODEL Y E28 FOR Y9H

68111-12C00-YC9

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

4

BOLT

09106-05017

$2.83

5

LABEL, INNER

44261-02F00

Unavailable

6

BOLT This part replaces 07130-06653.

07130-0665B

$3.79

7

CAP, BOLT

44514-02F00

Unavailable

8

CUSHION

09320-09009

$4.64

9

WASHER

09169-06062

$2.50

10

CUSHION, SIDE RH

44559-02F00

Unavailable

11

CUSHION, SIDE LH

44569-02F00

Unavailable

12

GASKET SET,FUEL | Includes Item(s) 13 This part replaces 44590-02820.

44590-02821

$47.20

13

BOLT This part replaces 15211-02F00..

09103-05017

$2.86

14

BRACKET, REAR RH

44560-02F00

Unavailable

15

BRACKET, REAR LH

44570-02F00

Unavailable

16

CUSHION, REAR SIDE

44542-02F00

Unavailable

17

STAY, FUEL TANK

44574-33E01

$15.45

18

PLUG

09251-05006

$5.85

19

CLAMP

09403-05310

$2.66

20

BRACKET, REAR

44550-02F01

Unavailable

21

BOLT, BRACKET

09106-08140

$6.38

22

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

$11.60

23

SPACER, JOINT

44561-33E10

Unavailable

24

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

25

FASTENER This part replaces 44572-02F00.

44572-02F01

$11.07

26

HOSE,FUEL TANK This part replaces 44423-02F01.

44423-02F02

Unavailable

27

3 WAY, DRAIN HOSE

09367-08005

$4.83

28

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

29

CLIP

09403-14408

Unavailable

30

CLAMP

09407-14403

$2.26

31

SHIELD, TANK HEAT RH | E33

44191-02F01

Unavailable

32

SHIELD, TANK HEAT LH | E33

44192-02F01

Unavailable

33

SHIELD, TANK HEAT REAR | E33

44193-02F00

Unavailable

34

SHIELD, TANK HEAT FRONT | E33

44194-02F00

Unavailable

35

SHIELD, TANK HEAT NO.1 | E33

44195-02F00

Unavailable

36

SHIELD, TANK HEAT NO.2 | E33

44196-02F00

Unavailable
