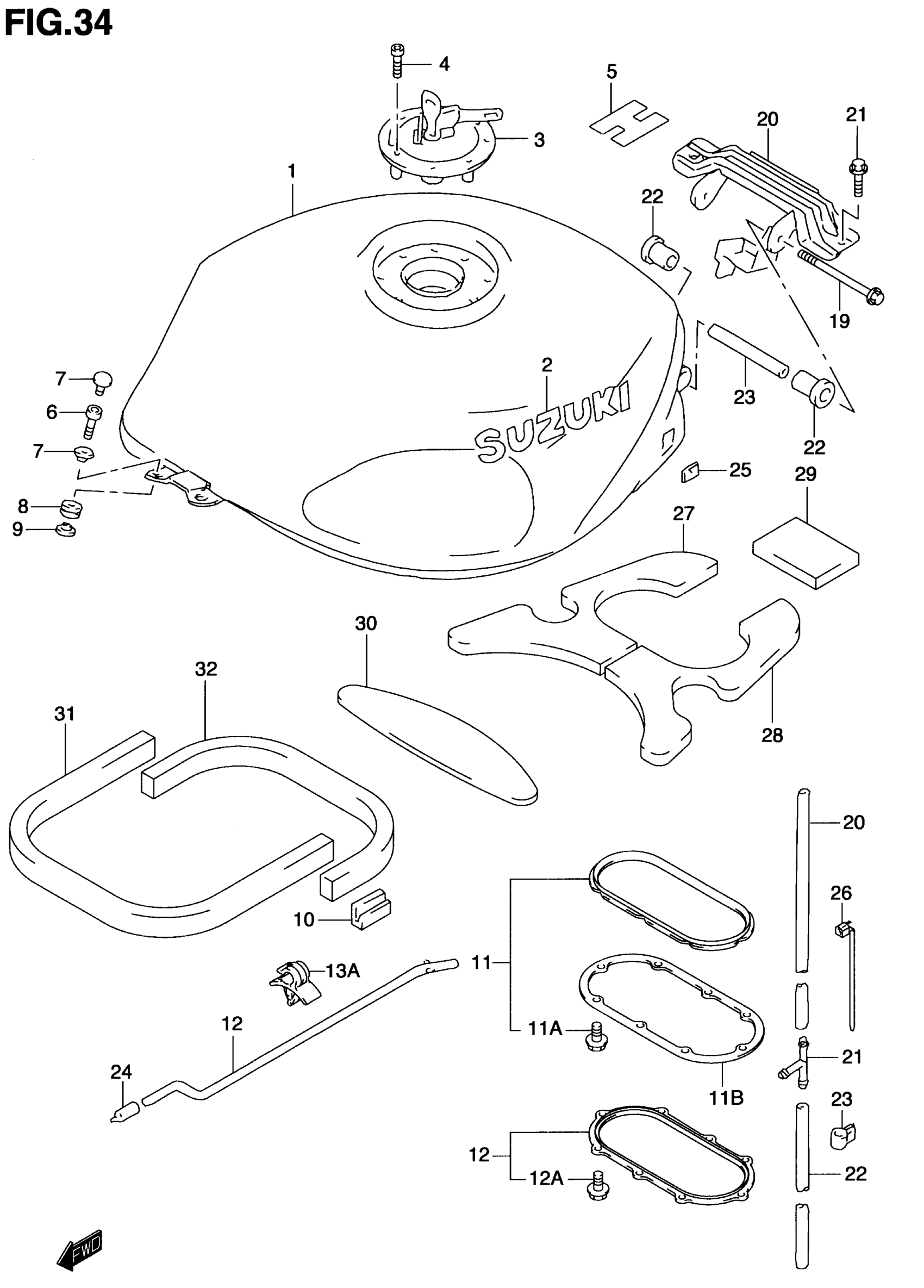

Suzuki TL1000S (2001) FUEL TANK (MODEL V/W/X) Diagram

#

Description
Price

1

TANK ASSY,FUEL | MODEL V/W This part replaces 44100-02F00-28V.

44100-02F01-28V

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 44100-02F00-1UH.

44100-02F01-1UH

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V/W This part replaces 44100-02F00-33J.

44100-02F01-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 44100-02F00-Y0W.

44100-02F01-Y0W

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL X E28

44100-02F01-Y7H

Unavailable

1

TANK ASSY,FUEL | MODEL V/W E33 This part replaces 44100-02F10-28V.

44100-02F11-28V

Unavailable

1

TANK ASSY,FUEL | MODEL V E33 This part replaces 44100-02F10-1UH.

44100-02F11-1UH

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V/W E33 This part replaces 44100-02F10-33J.

44100-02F11-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X E33; Includes Item(s) 2 - 2 This part replaces 44100-02F10-Y0W.

44100-02F11-Y0W

Unavailable

2

EMBLEM | FOR 28V,Y0W This part replaces 68111-12C00-20G.

68111-12C30-20G

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR 1UH,33J This part replaces 68111-12C00-0SF.

68111-12C30-0SF

Unavailable

2

EMBLEM | E28 FOR Y7H This part replaces 68111-12C00-1ZY.

68111-12C30-1ZY

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

4

BOLT, CAP

09106-05017

$2.83

5

BOLT This part replaces 07130-06553.

07130-0655B

$4.10

6

CAP, BOLT

44514-02F00

Unavailable

7

WASHER | MODEL V This part replaces 09160-06132.

09160-06084

$1.78

8

CUSHION

09320-09009

$4.64

9

SPACER

09169-06062

$2.50

10

CUSHION,FUEL TA This part replaces 44541-33E00.

44541-33E01

$8.83

11

PACKING SET,FUE | MODEL V; Includes Item(s) 11A This part replaces 44590-02830.

44590-02831

Unavailable

11A

BOLT | MODEL V This part replaces 15211-02F00..

09103-05017

$2.86

11B

PLATE, FUEL PUMP | MODEL V

44597-02F00

Unavailable

12

GASKET SET,FUEL | MODEL W/X; Includes Item(s) 12A This part replaces 44590-02820.

44590-02821

$47.20

12A

BOLT | MODEL W/X This part replaces 15211-02F00..

09103-05017

$2.86

13

STAY, FUEL TANK

44574-33E01

$15.45

13A

CLAMP

09403-05310

$2.66

14

BRACKET, REAR This part replaces 44550-02F00.

44550-02F01

Unavailable

15

BOLT (8X16) | MODEL V This part replaces 01550-08163.

01550-0816A

$2.32

15

BOLT, REAR BRACKET | MODEL W/X

09106-08140

$6.38

16

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

$11.60

17

FASTENER This part replaces 44572-02F00.

44572-02F01

$11.07

18

SPACER, JOINT | MODEL V

44561-33E00

Unavailable

18

SPACER, JOINT | MODEL W/X

44561-33E10

Unavailable

19

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

20

HOSE(7X10.2X600 | MODEL V This part replaces 09352-70103-600.

09352-70104-600

$5.63

20

HOSE,FUEL TANK | MODEL W This part replaces 44423-02F00.

44423-02F02

Unavailable

20

HOSE,FUEL TANK | MODEL X This part replaces 44423-02F01.

44423-02F02

Unavailable

21

3 WAY, DRAIN HOSE

09367-08005

$4.83

22

HOSE(7X10.2X600 | MODEL V/W This part replaces 09352-70103-600.

09352-70104-600

$5.63

22

HOSE(7X10.2X600 | MODEL X This part replaces 09352-70103-600.

09352-70104-600

$5.63

23

CLAMP

09403-14408

Unavailable

24

PLUG, FUEL RETURN PIPE

09251-05006

$5.85

25

LABEL, FUEL TANK INNER

44261-02F00

Unavailable

26

CLAMP, DRAIN HOSE | MODEL W/X

09407-14403

$2.26

27

SHIELD, TANK HEAT RH | E33 This part replaces 44191-02F00.

44191-02F01

Unavailable

28

SHIELD, TANK HEAT LH | E33 This part replaces 44192-02F00.

44192-02F01

Unavailable

29

SHIELD, TANK HEAT REAR | E33

44193-02F00

Unavailable

30

SHIELD, TANK HEAT FRONT | PE33

44194-02F00

Unavailable

31

SHIELD, TANK HEAT NO.1 | E33

44195-02F00

Unavailable

32

SHIELD, TANK HEAT NO.2 | E33

44196-02F00

Unavailable
