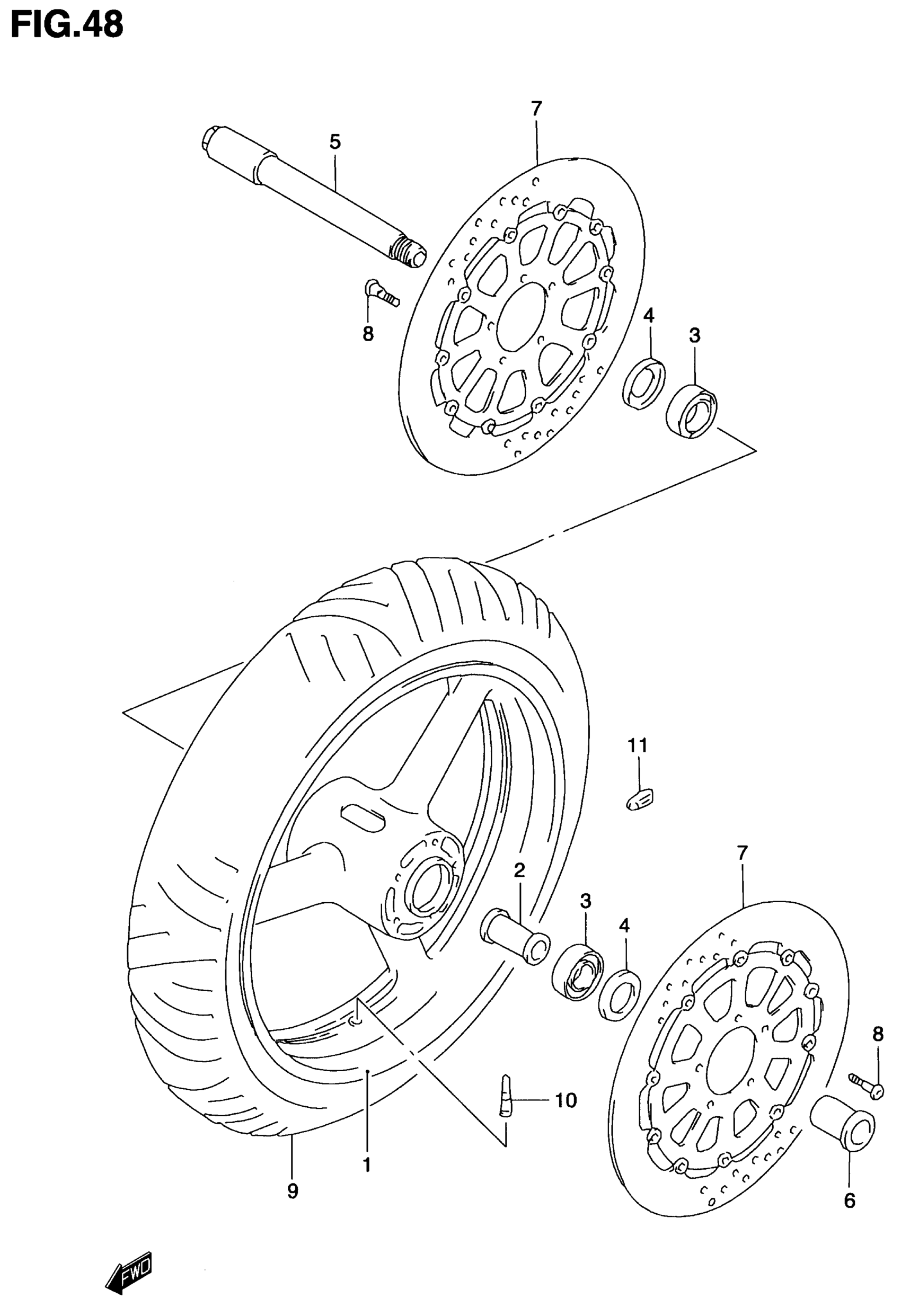

Suzuki TL1000S (2001) FRONT WHEEL (MODEL V/W/X/Y) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL V/W/X ?54111-33E10-35B This part replaces 54111-33E00-35B.

54111-33E11-35B

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL Y MODEL W ~F.NO.W2100483 ?54731-33E10 This part replaces 54111-33E10-35B.

54111-33E11-35B

Unavailable

2

SPACER, HUB BEARING | MODEL W F.NO.W2100484~

54731-33E10

$41.11

2

SPACER, HUB BEARING | MODEL X/Y

54731-33E10

$41.11

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-33E00

$156.07

6

NUT, AXLE

54712-33E00

$58.96

7

DISC, FRONT BRAKE

59210-33E20

Unavailable

8

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

9

TIRE, FRONT 120/70 ZR17(58W),METZELER | PURCHASE LOCALLY MEZ1A FRONT

55110-02F00

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

BALANCER (10G)

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
