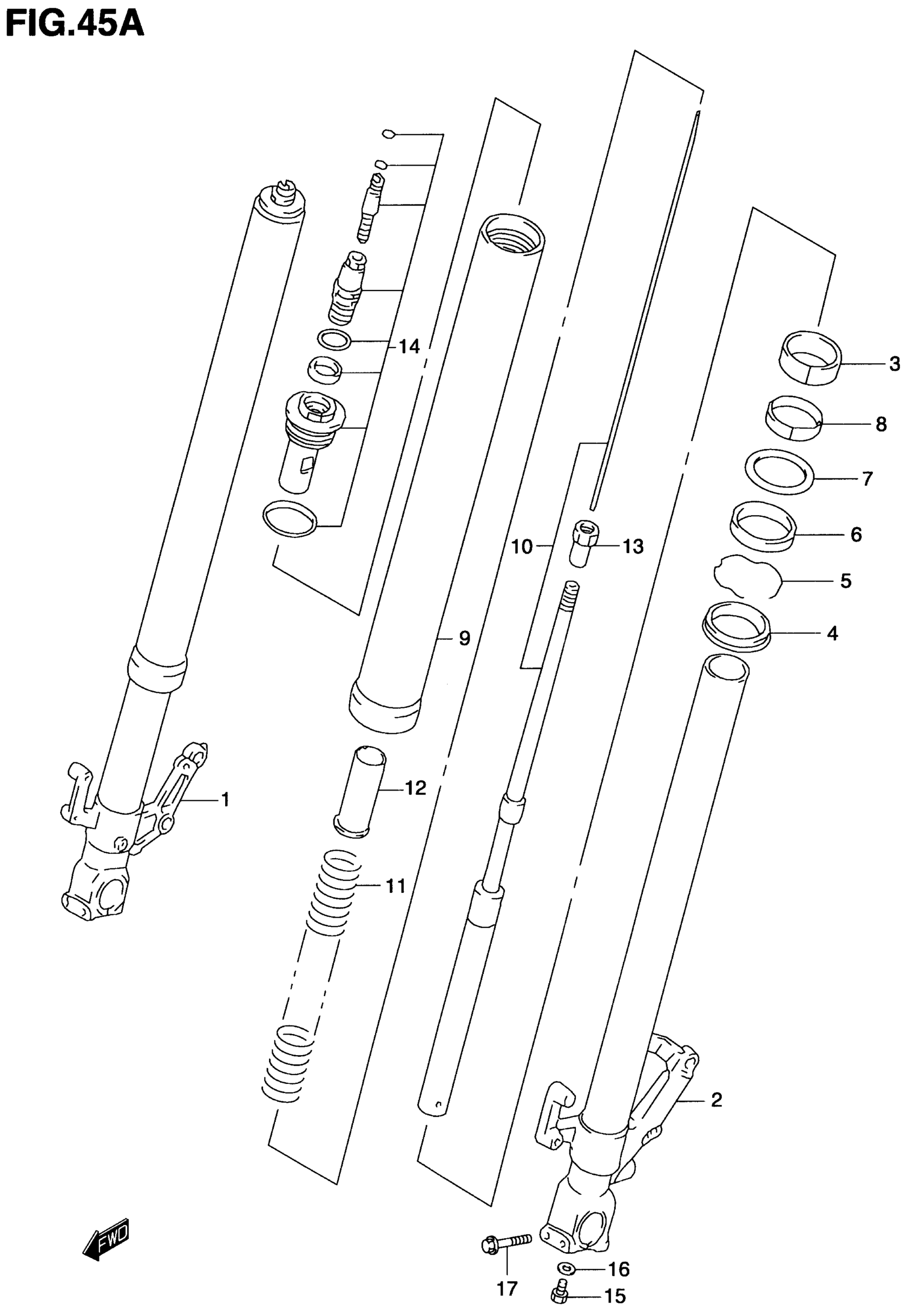

Suzuki TL1000S (2001) FRONT DAMPER (MODEL W/X/Y/K1) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-02F20

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 16

51104-02F20

Unavailable

1

TUBE, INNER RH

51110-02F00

Unavailable

2

TUBE, INNER LH

51120-02F00

Unavailable

3

PISTON

51121-40C00

$21.09

4

SEAL, DUST

51173-46E20

$32.97

5

RING, SNAP

51156-14200

$5.05

6

SEAL, OIL

51153-46E20

$27.57

7

WASHER

51158-14200

$5.05

8

METAL, SLIDE

51167-02F00

$24.55

9

TUBE, OUTER

51130-02F00

Unavailable

10

CYLINDER

51146-02F20

Unavailable

11

SPRING, FRONT

51171-02F20

Unavailable

12

SPACER

51176-02F20

Unavailable

13

NUT

51129-27C00

Unavailable

14

CAP, FORK

51351-02F00

Unavailable

15

BOLT

51147-40C00

$22.74

16

GASKET

51148-40300

$2.03

17

BOLT

01550-08457

$4.00
