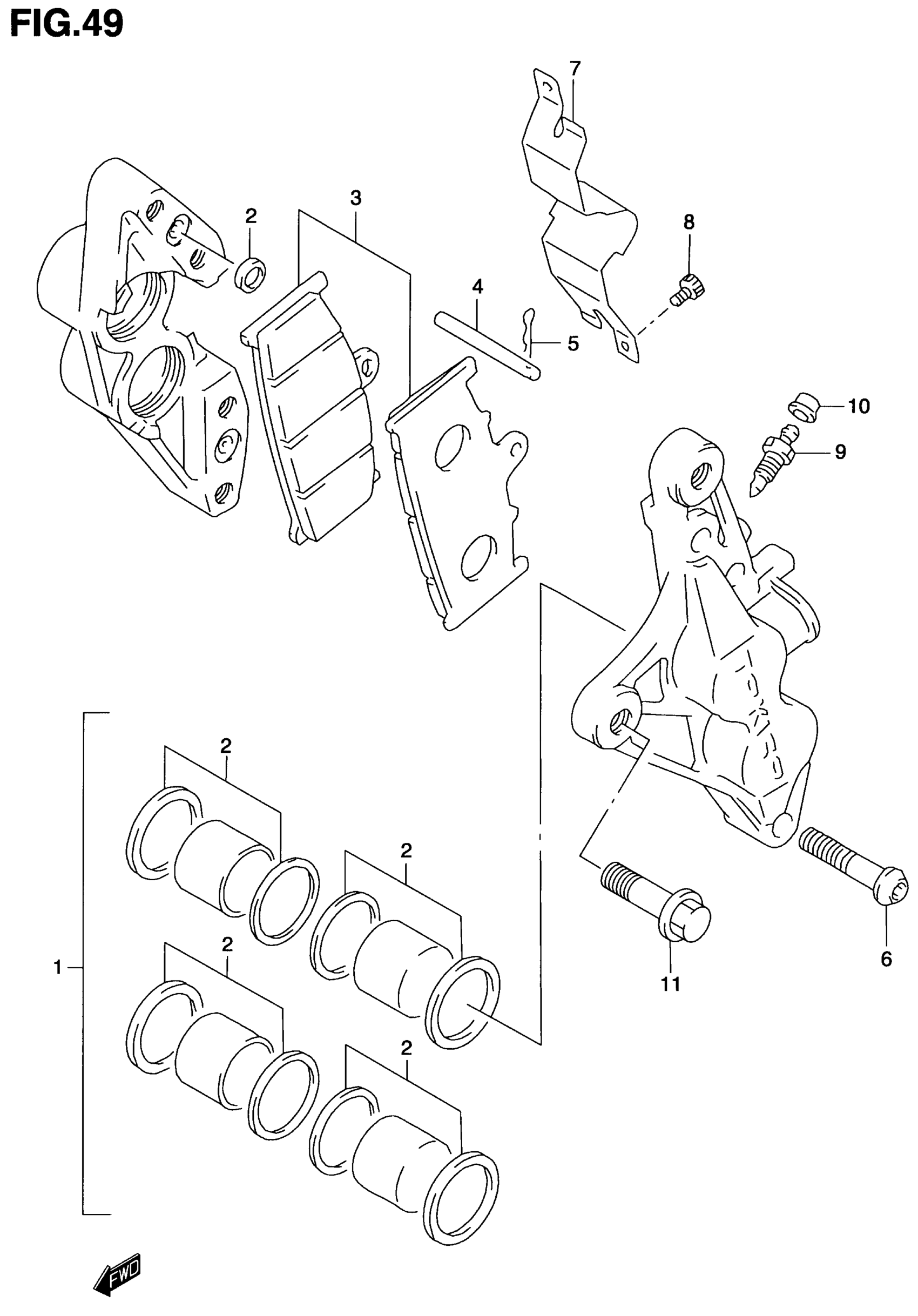

Suzuki TL1000S (2001) FRONT CALIPERS Diagram

#

Description
Price

CALIPER ASSY, FRONT RH

59100-34E00

Unavailable

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 10

59300-34E00

Unavailable

1

.PISTON SET This part replaces 59300-34810.

59300-34811

$98.92

2

..SEAL SET,PISTON This part replaces 59300-34820.

59300-34821

$40.98

3

PAD SET

59300-34830

Unavailable

4

PIN

69141-45000

$5.17

5

.CLIP, PAD PIN

69142-45000

$4.34

6

BOLT

59145-34E00

$8.90

7

COVER, RH

59152-22D01

Unavailable

7

COVER, LH

59151-22D01

Unavailable

8

.SCREW

59153-22D00

$6.30

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

BOLT (10X30)

09103-10296

$6.44
