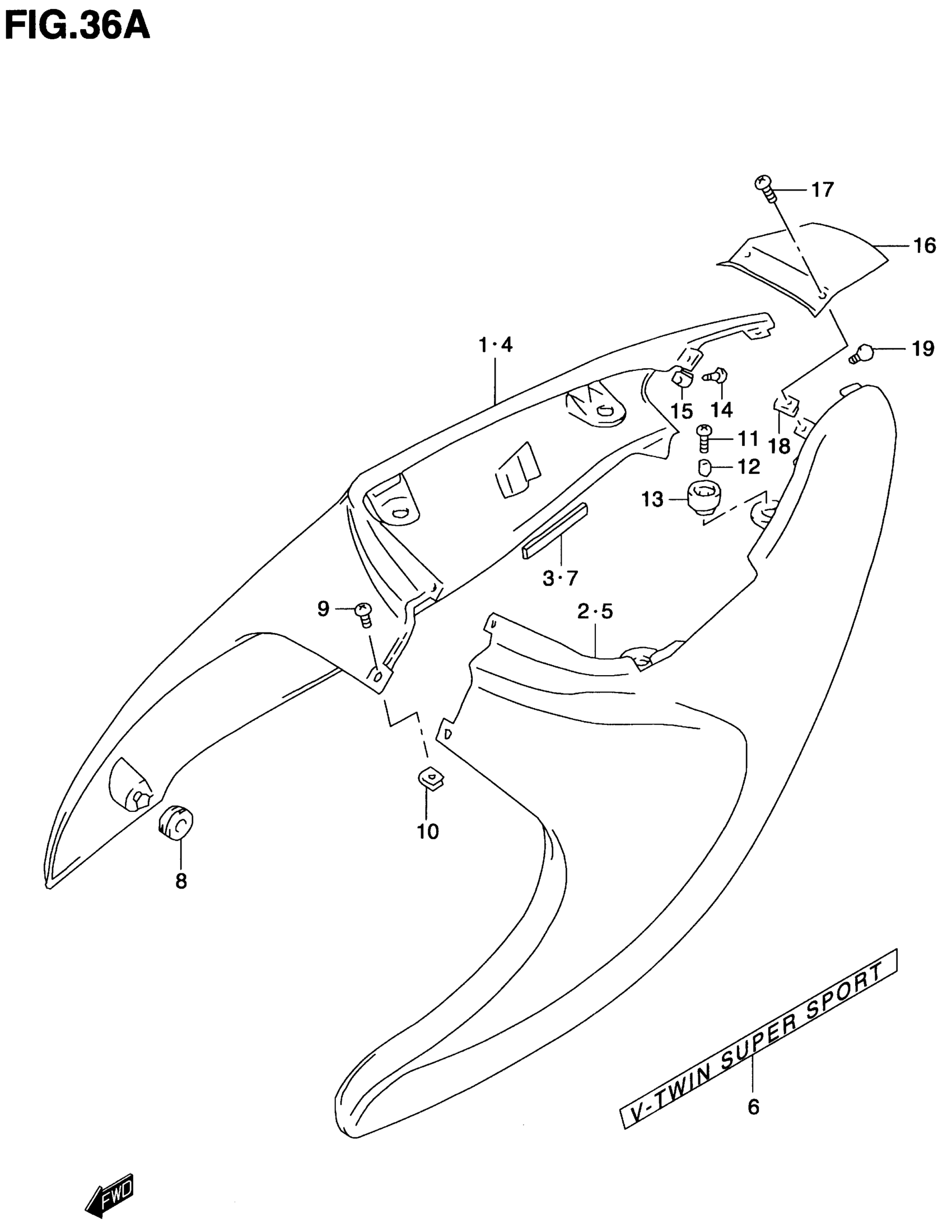

Suzuki TL1000S (2001) FRAME COVER (MODEL X/Y) Diagram

#

Description
Price

1

COVER, FRAME RH (ORANGE) | MODEL X

47110-02F10-Y0W

Unavailable

1

COVER, FRAME RH (RED) | MODEL Y

47110-02F10-Y7M

Unavailable

1

COVER, FRAME RH (YELLOW) | MODEL Y E28

47110-02F10-Y9H

Unavailable

2

COVER, FRAME LH (ORANGE) | MODEL X

47210-02F10-Y0W

Unavailable

2

COVER, FRAME LH (RED) | MODEL Y

47210-02F10-Y7M

Unavailable

2

COVER, FRAME LH (YELLOW) | MODEL Y E28; Includes Item(s) 3

47210-02F10-Y9H

Unavailable

3

CUSHION

47161-02F00

Unavailable

4

COVER, FRAME RH (BLUE) | MODEL X E28

47110-02F20-Y7H

Unavailable

5

COVER, FRAME LH (BLUE) | MODEL X E28; Includes Item(s) 6 - 7

47210-02F20-Y7H

Unavailable

6

EMBLEM | MODEL X E28

68131-02F20-M1E

Unavailable

7

CUSHION

47161-02F00

Unavailable

8

CUSHION, FRONT

09320-08018

$3.04

9

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

10

NUT

09148-05038

$1.97

11

SCREW

09136-06105

$1.97

12

SPACER

09180-06286

$2.50

13

CUSHION, UPPER

09320-10045

$3.76

14

SCREW, REAR LOWER

09136-05034

$2.38

15

NUT

09148-05038

$1.97

16

COVER, CENTER (ORANGE) | MODEL X

47311-02F00-Y0W

Unavailable

16

COVER, CENTER (RED) | MODEL Y

47311-02F00-Y7M

Unavailable

16

COVER, CENTER (BLUE) | M0DEL X E28

47311-02F00-Y7H

Unavailable

16

COVER, CENTER (YELLOW) | MODEL Y E28

47311-02F00-Y9H

Unavailable

17

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

18

NUT

09148-05038

$1.97

19

CUSHION, REAR

47129-02F00

Unavailable
