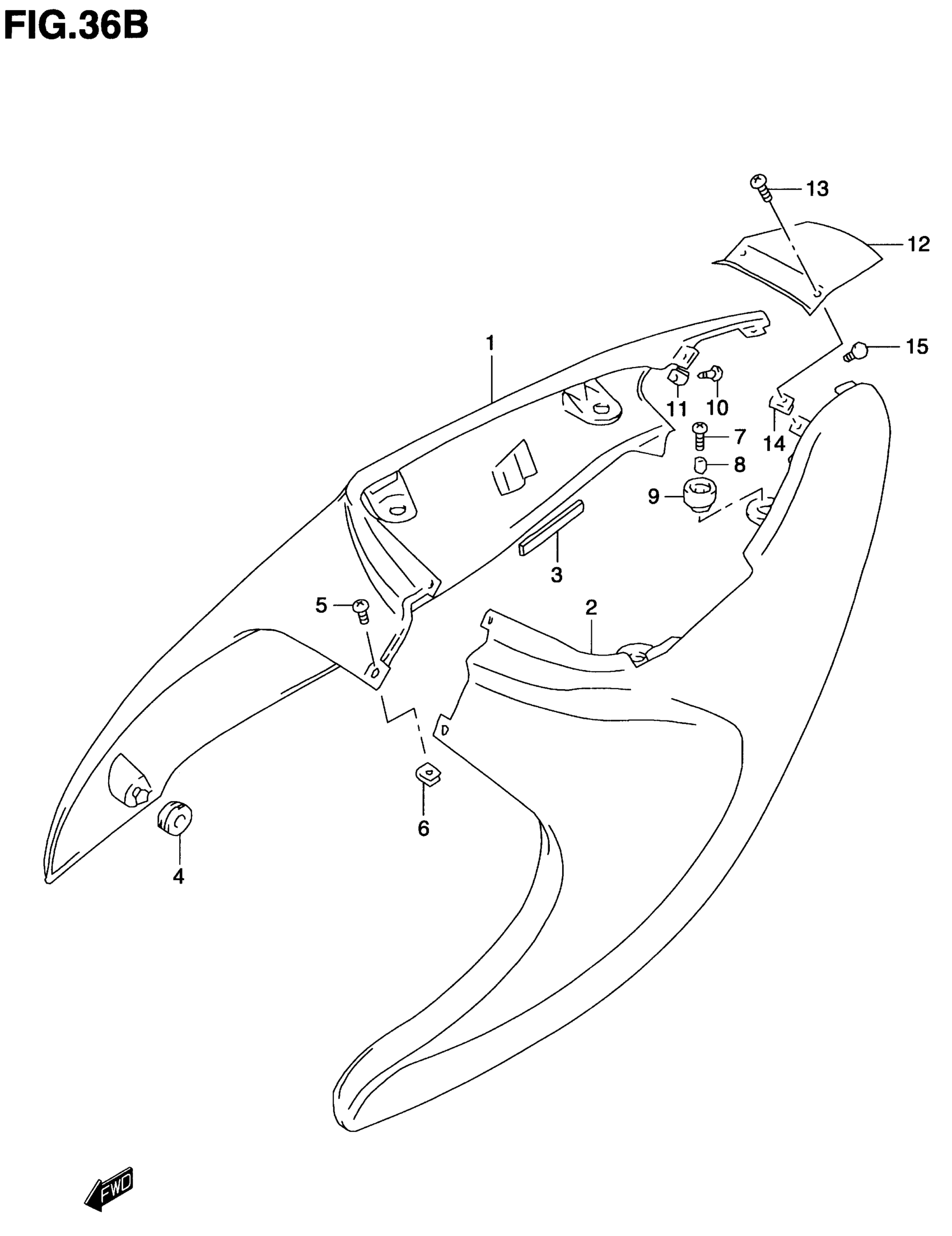

Suzuki TL1000S (2001) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47110-02F10-Y7L

Unavailable

1

COVER, FRAME RH (BLUE)

47110-02F10-YC2

Unavailable

2

COVER, FRAME LH (BLACK)

47210-02F10-Y7L

Unavailable

2

COVER, FRAME LH (BLUE) | Includes Item(s) 3

47210-02F10-YC2

Unavailable

3

CUSHION

47161-02F00

Unavailable

4

CUSHION, FRONT

09320-08018

$3.04

5

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

6

NUT

09148-05038

$1.97

7

SCREW

09136-06105

$1.97

8

SPACER

09180-06286

$2.50

9

CUSHION, UPPER

09320-10045

$3.76

10

SCREW, REAR LOWER

09136-05034

$2.38

11

NUT

09148-05038

$1.97

12

COVER, CENTER (BLACK)

47311-02F00-Y7L

Unavailable

12

COVER, CENTER (BLUE)

47311-02F00-YC2

Unavailable

13

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

14

NUT

09148-05038

$1.97

15

CUSHION, REAR

47129-02F00

Unavailable
