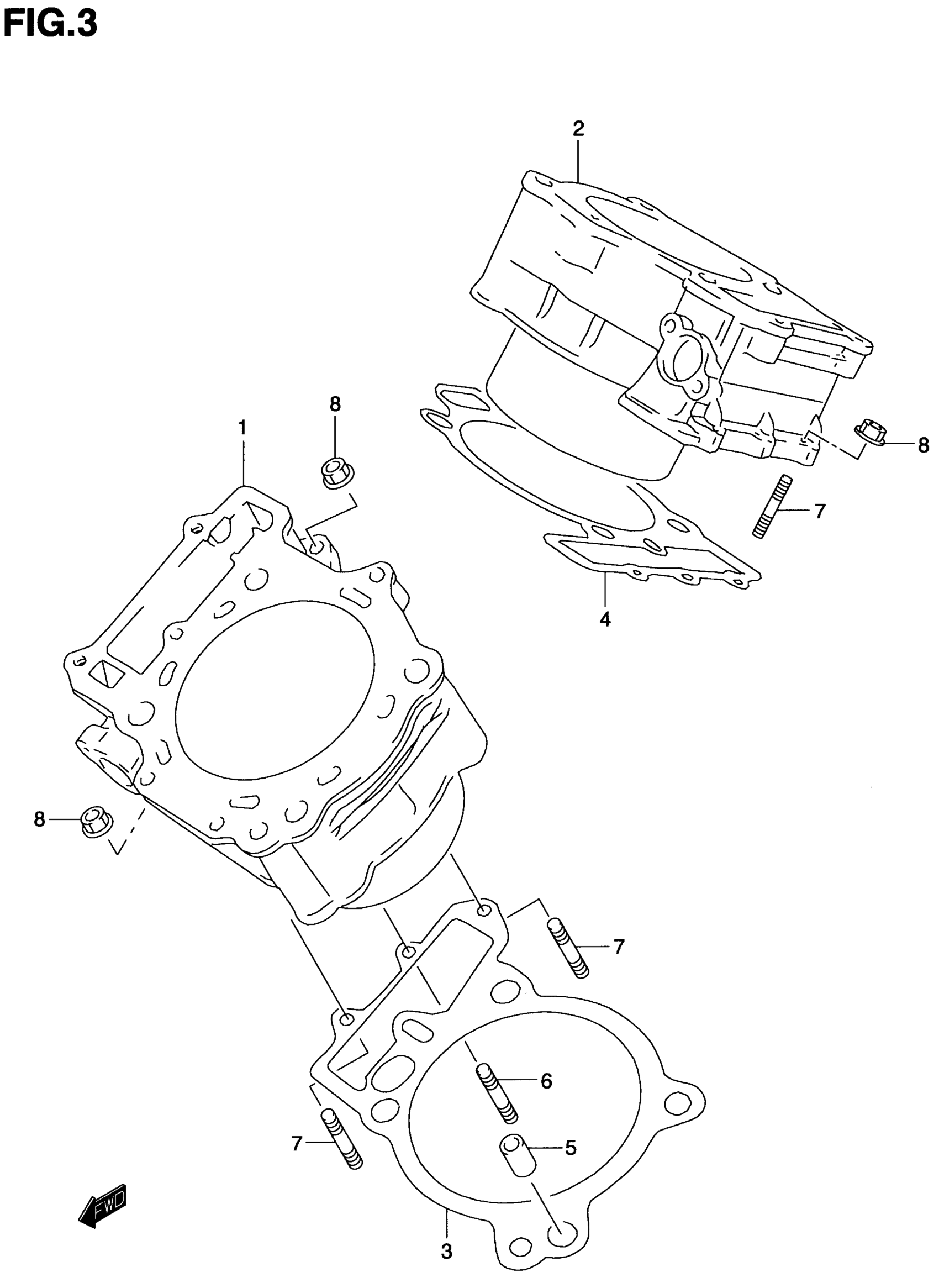

Suzuki TL1000S (2001) CYLINDER Diagram

#

Description
Price

1

CYLINDER, FRONT | MODEL V This part replaces 11211-02F00-0F0.

11211-02F02-0F0

Unavailable

1

CYLINDER, FRONT | MODEL W/X/Y This part replaces 11211-02F01-0F0.

11211-02F02-0F0

Unavailable

1

CYLINDER, FRONT | MODEL K1

11211-02F02-0F0

Unavailable

2

CYLINDER, REAR | MODEL V This part replaces 11221-02F00-0F0.

11221-02F02-0F0

Unavailable

2

CYLINDER, REAR | MODEL W/X/Y This part replaces 11221-02F01-0F0.

11221-02F02-0F0

Unavailable

2

CYLINDER, REAR | MODEL K1

11221-02F02-0F0

Unavailable

3

GASKET, CYLINDER FRONT | ~E.NO.111954 This part replaces 11241-02F00.

11241-02F01

$25.23

3

GASKET, CYLINDER FRONT | E.NO.111955~

11241-02F01

$25.23

4

GASKET, CYLINDER REAR | ~E.NO.111954 This part replaces 11242-02F00.

11242-02F01

$25.35

4

GASKET, CYLINDER REAR | E.NO.111955~

11242-02F01

$25.35

5

PIN

04211-13189

$2.19

6

STUD BOLT

09108-06118

Unavailable

7

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.91

8

NUT This part replaces 08316-10063.

08316-1006B

$2.50
