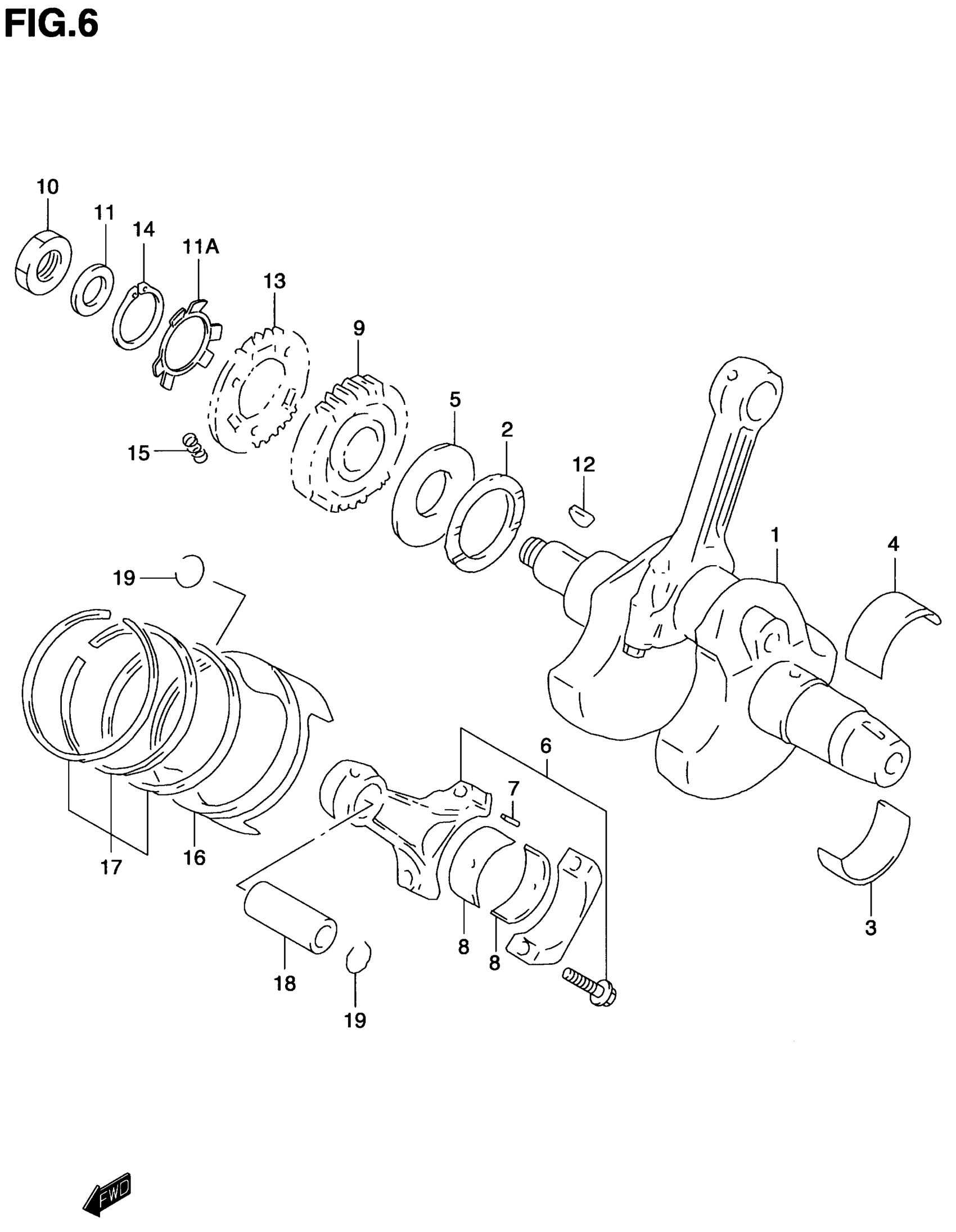

Suzuki TL1000S (2001) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | MODEL V/W/X

12000-02810

Unavailable

1

CRANKSHAFT SET | MODEL Y/K1; Includes Item(s) 2 - 2

12000-02830

Unavailable

2

WASHER, CRANK THRUST (T:1.94)

09160-48001

Unavailable

2

WASHER, CRANK THRUST (T:1.96)

09160-48002

Unavailable

2

WASHER, CRANK THRUST (T:1.99)

09160-48003

Unavailable

2

WASHER, CRANK THRUST (T:2.01)

09160-48004

Unavailable

2

WASHER, CRANK THRUST (T:2.04)

09160-48005

Unavailable

2

WASHER, CRANK THRUST (T:2.06)

09160-48006

$30.35

2

WASHER, CRANK THRUST (T:2.09)

09160-48007

Unavailable

2

WASHER, CRANK THRUST (T:2.11)

09160-48008

Unavailable

2

WASHER, CRANK THRUST (T:2.14)

09160-48009

Unavailable

2

WASHER, CRANK THRUST (T:2.16)

09160-48010

$30.35

3

BEARING, CRANKSHAFT | MODEL V/W This part replaces 12229-02F00-0A0.

12229-02F21-0A0

Unavailable

3

BEARING, CRANKSHAFT | MODEL V/W This part replaces 12229-02F00-0B0.

12229-02F21-0B0

$27.70

3

BEARING, CRANKSHAFT | MODEL V/W This part replaces 12229-02F00-0C0.

12229-02F21-0C0

$27.70

3

BEARING, CRANKSHAFT | MODEL X/Y/K1

12229-02F21-0A0

Unavailable

3

BEARING, CRANKSHAFT | MODEL X/Y/K1

12229-02F21-0B0

$27.70

3

BEARING, CRANKSHAFT | MODEL X/Y/K1

12229-02F21-0C0

$27.70

4

BEARING, CRANKSHAFT | MODEL V/W This part replaces 12229-02F10-0A0.

12229-02F21-0A0

Unavailable

4

BEARING, CRANKSHAFT | MODEL V/W This part replaces 12229-02F10-0B0.

12229-02F21-0B0

$27.70

4

BEARING, CRANKSHAFT | MODEL V/W This part replaces 12229-02F10-0C0.

12229-02F21-0C0

$27.70

4

BEARING, CRANKSHAFT | MODEL X/Y/K1

12229-02F21-0A0

Unavailable

4

BEARING, CRANKSHAFT | MODEL X/Y/K1

12229-02F21-0B0

$27.70

4

BEARING, CRANKSHAFT | MODEL X/Y/K1

12229-02F21-0C0

$27.70

5

WASHER,CRANK THRUST | ~E.NO.111954

12652-38B00

Unavailable

5

WASHER, CRANK THRUST | E.NO.111955~

12652-02F00

Unavailable

6

CONNECTING ROD ASSY

12160-02F00

Unavailable

7

PIN

12165-27A50

$1.54

8

BEARING, CRANK PIN | MODEL V/W/X

12164-02F00-0A0

Unavailable

8

BEARING, CRANK PIN | MODEL V/W/X

12164-02F00-0B0

Unavailable

8

BEARING, CRANK PIN | MODEL V/W/X

12164-02F00-0C0

Unavailable

8

BEARING, CRANK PIN | MODEL V/W/X

12164-02F00-0D0

Unavailable

8

BEARING, CRANK PIN (GREEN) | MODEL Y/K1 This part replaces 12164-02F11-0A0.

12164-02F12-0A0

Unavailable

8

BEARING, CRANK PIN (BLACK) | MODEL Y/K1 This part replaces 12164-02F11-0B0.

12164-02F12-0B0

$21.84

8

BEARING, CRANK PIN (BROWN) | MODEL Y/K1 This part replaces 12164-02F11-0C0.

12164-02F12-0C0

$25.68

8

BEARING, CRANK PIN (YELLOW) | MODEL Y/K1 This part replaces 12164-02F11-0D0.

12164-02F12-0D0

$25.68

9

GEAR, PRIMARY DRIVE | MODEL V/W

21111-02F00

Unavailable

9

GEAR, PRIMARY DRIVE | MODEL X/Y This part replaces 21111-02F10.

21111-02F11

Unavailable

9

GEAR, PRIMARY DRIVE | MODEL K1

21111-02F11

Unavailable

10

NUT

09140-22012

$13.20

11

WASHER

09164-22007

$7.35

11A

WASHER, WAVE | MODEL X/Y/K1

21114-02F00

$10.65

12

KEY | MODEL V/W/X

08341-31069

$5.65

12

KEY | MODEL Y/K1

09420-06001

$9.27

13

GEAR, PRIMARY DRIVE SCISSORS

21112-02F00

Unavailable

14

CIRCLIP | MODEL V/W

08331-31426

Unavailable

14

CIRCLIP | MODEL X/Y/K1 This part replaces 08331-31406.

08331-31409

$3.58

15

SPRING

09440-07001

$2.38

16

PISTON

12111-02F00-0F0

Unavailable

17

RING SET, PISTON | MODEL V This part replaces 12140-02F40.

12140-02F42

$74.78

17

RING SET, PISTON | MODEL W/X/Y/K1

12140-02F42

$74.78

18

PIN, PISTON

12151-02F00

$29.82

19

CIRCLIP

09381-22002

$1.65
