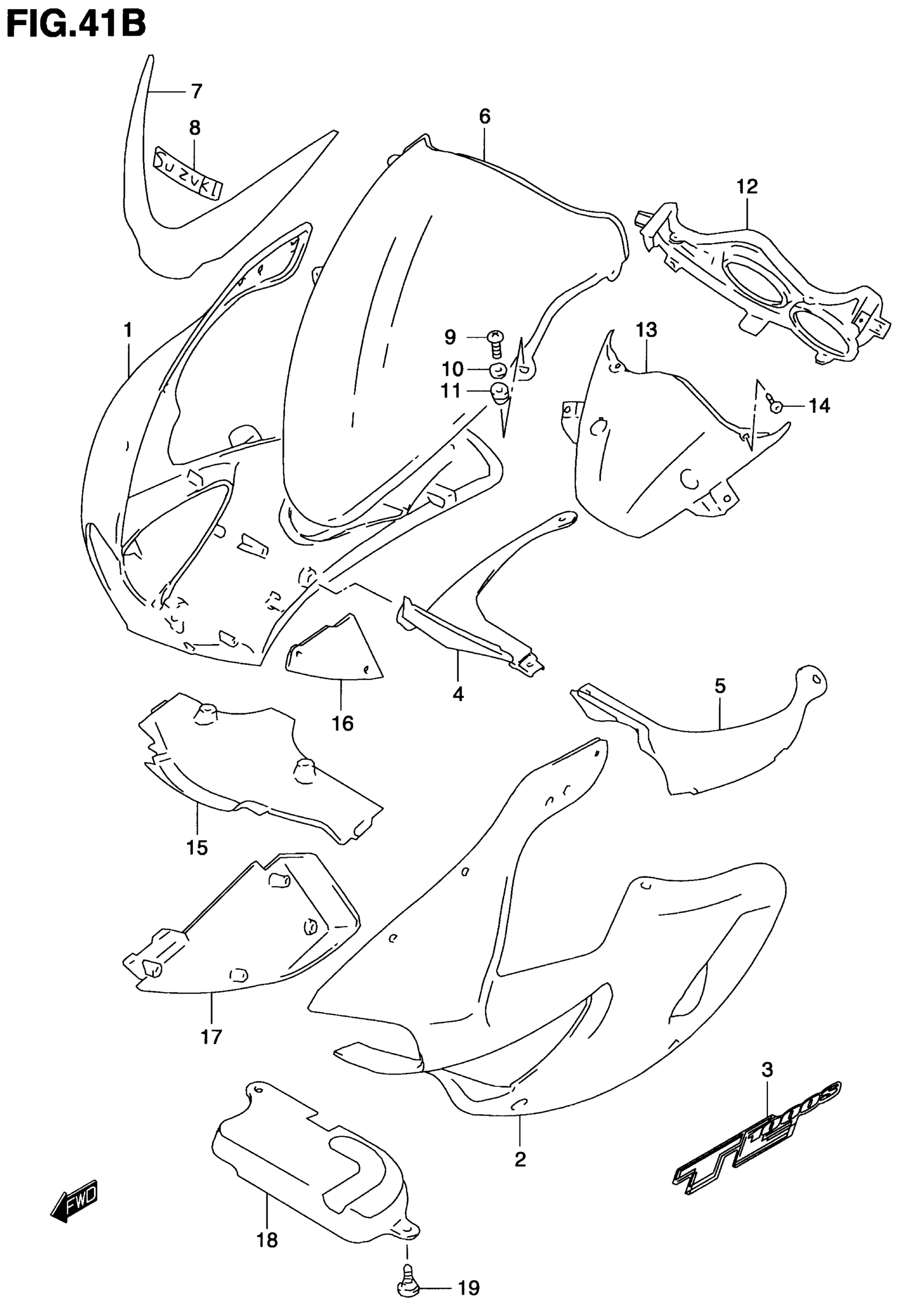

Suzuki TL1000S (2001) COWLING BODY (MODEL X) Diagram

#

Description
Price

1

COWLING, SIDE RH (ORANGE)

94410-02F20-Y0W

Unavailable

1

COWLING, SIDE RH (BLUE) | E28

94410-02F20-Y7H

Unavailable

2

COWLING, SIDE LH (ORANGE)

94420-02F20-Y0W

Unavailable

2

COWLING, SIDE LH (BLUE) | E28; Includes Item(s) 3 - 3

94420-02F20-Y7H

Unavailable

3

EMBLEM | FOR Y0W

68681-02F20-M1G

Unavailable

3

EMBLEM | E28 FOR Y7H

68681-02F20-M1J

Unavailable

4

PANEL, SIDE RH (ORANGE)

94415-02F00-Y0W

Unavailable

4

PANEL, SIDE RH (BLUE) | E28

94415-02F00-Y7H

Unavailable

5

PANEL,SIDE,L This part replaces 94425-02F00-Y0W.

94425-02F00

Unavailable

5

PANEL, SIDE LH (BLUE) | E28

94425-02F00-Y7H

Unavailable

6

WINDSCREEN (SILVER) | Includes Item(s) 7 - 8

94610-02F00-0FP

Unavailable

7

TAPE

68275-02F00

Unavailable

8

EMBLEM (SILVER)

68280-02F00-0FP

Unavailable

9

SCREW

09139-05025

$2.05

10

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

11

NUT

09159-05019

$7.14

12

PANEL, METER

94630-02F00

Unavailable

13

PANEL, FRONT

94640-02F00

Unavailable

14

CLIP (BLACK)

09409-06322-5PK

$3.10

15

COWLING, CENTER LOWER (ORANGE)

94430-02F00-Y0W

Unavailable

15

COWLING, CENTER LOWER (BLUE) | E28

94430-02F00-Y7H

Unavailable

16

COWLING, INNER RH

94461-02F00

Unavailable

17

COWLING, INNER LH

94460-02F00

Unavailable

18

COVER, COWL FRONT LOWER

94457-02F00

Unavailable

19

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60
