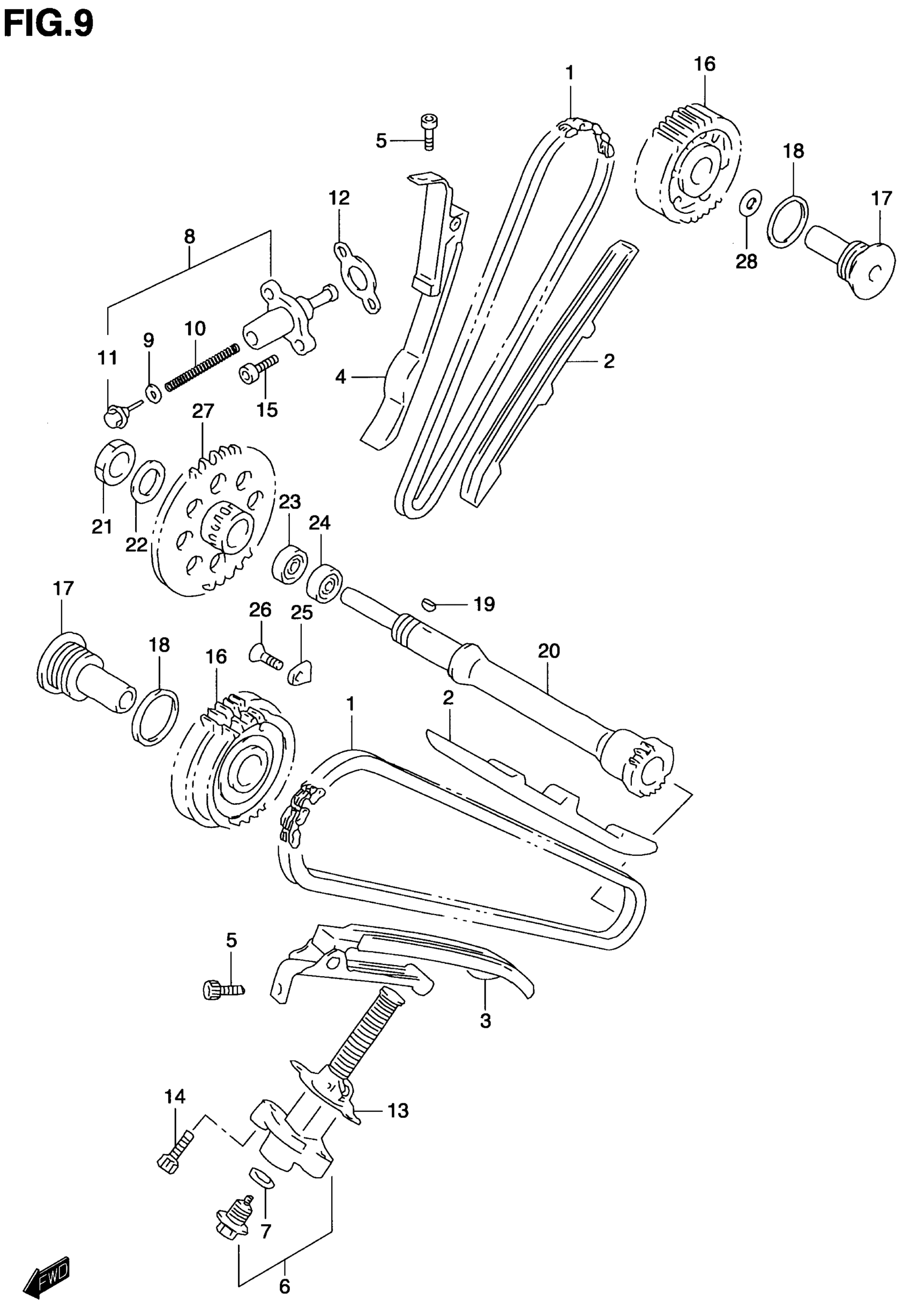

Suzuki TL1000S (2001) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-02F00

$135.35

2

GUIDE, CAM CHAIN

12771-02F00

Unavailable

3

TENSIONER, FRONT CAM CHAIN | ~E.NO.111570 This part replaces 12810-02F00.

12810-02F10

Unavailable

3

TENSIONER, FRONT CAM CHAIN | E.NO.111571~

12810-02F10

Unavailable

4

TENSIONER, REAR CAM CHAIN | ~E.NO.111570 This part replaces 12815-02F00.

12815-02F10

Unavailable

4

TENSIONER, REAR CAM CHAIN | E.NO.111571~

12815-02F10

Unavailable

5

BOLT | ~E.NO.111570 This part replaces 07130-06163.

07130-0616B

$2.39

5

BOLT, OIL GALLERY | E.NO.111571~ This part replaces 07120-06123.

07120-0612B

$3.04

6

ADJUSTER ASSY, FRONT TENSIONER | Includes Item(s) 7

12832-24A01

Unavailable

7

GASKET

09168-12018

$3.08

8

ADJUSTER ASSY,TENSIONER | Includes Item(s) 9 - 11

12830-30A01

$121.77

9

O RING

12832-02A00

$2.82

10

SPRING

12833-30A01

Unavailable

11

PLUG

12834-02A00

Unavailable

12

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.73

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

14

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

15

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$3.05

16

GEAR, CAM CHAIN IDLER NO.2 | MODEL V/W/X/Y ~F.NO.Y2100073 This part replaces 12750-02F00.

12750-02F10

Unavailable

16

GEAR, CAM CHAIN IDLER NO.2 | MODEL Y/K1 F.NO.2100074~

12750-02F10

Unavailable

17

SHAFT, IDLER NO.2

12755-02F01

$52.73

18

GASKET

09168-26001

$5.00

19

KEY

09421-04004

$3.99

20

SHAFT, IDLER

12716-02F00

Unavailable

21

NUT

09140-16005

$3.75

22

WASHER

09181-16212

Unavailable

23

BEARING, R

08113-63030

$23.65

24

BEARING, L | ~F.NO.T501-111997 E.NO.T501-112108~113971

08113-60050

$23.65

24

BEARING, L | E.NO.T501-111998~112107 E.NO.T501-113972~

09262-25123

Unavailable

25

RETAINER

24741-20A00

$2.81

26

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

27

SPROCKET, IDLER NO.1 | MODEL V/W This part replaces 12731-02F00.

12731-02F10

Unavailable

27

SPROCKET, IDLER NO.1 | MODEL X/Y/K1

12731-02F10

Unavailable

28

SHIM, CAM CHAIN IDLER NO.2

09181-15164

$3.03

28

SHIM, CAM CHAIN IDLER NO.2

09181-15166

$2.85

28

SHIM, CAM CHAIN IDLER NO.2

09181-15172

$3.08

28

SHIM, CAM CHAIN IDLER NO.2

09181-15176

$3.03

28

SHIM, CAM CHAIN IDLER NO.2

09181-15181

$3.03

28

SHIM, CAM CHAIN IDLER NO.2

09181-15182

$3.03
