Description

Price

1

BATTERY ASSY (12V,10AH)

33610-48E20

$98.67

2

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (40X20,115X50)

33651-37000

$4.48

3

PROTECTOR (50X20X8)

33652-35400

Unavailable

3A

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

33651-37000

$4.48

3B

PROTECTOR (50X50X5)

33652-20C00

$2.99

4

WIRE, STARTER MOTOR LEAD | Includes Item(s) 5

33810-02F00

Unavailable

5

CAP, STARTER MOTOR

31861-48B10

$6.55

6

WIRE,BATTERY PLUS LEAD | Includes Item(s) 7 - 7 This part replaces 33820-48E00.

33820-48E01

$20.00

7

CAP, BATTERY PLUG | MODEL V

33624-33C10

Unavailable

7

CAP, BATTERY PLUG | MODEL W/X/Y/K1

33624-16E00

$6.00

8

WIRE, BATTERY MINUS

33860-02F00

Unavailable

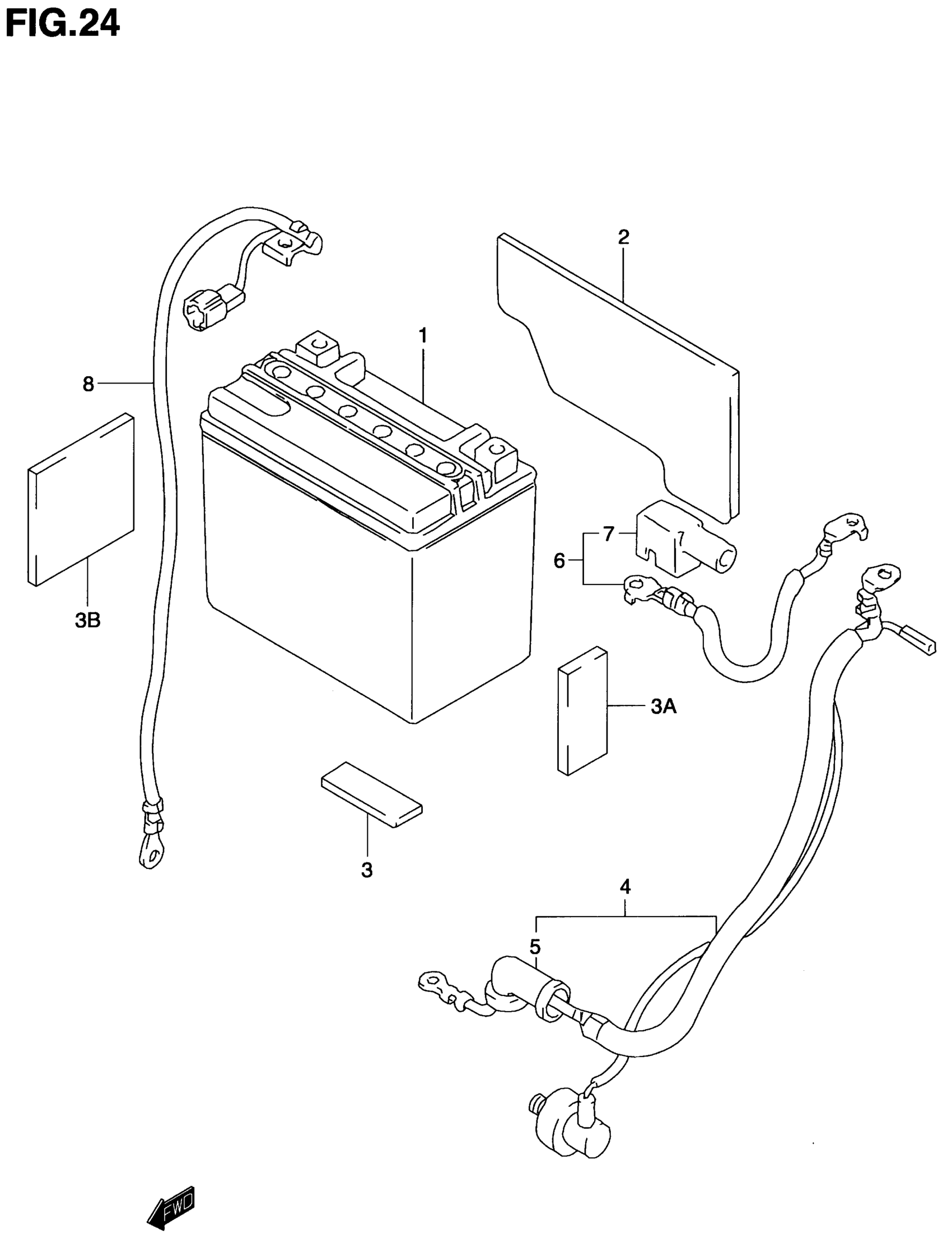

Suzuki TL1000S (2001) BATTERY Diagram

BATTERY ASSY (12V,10AH)

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (40X20,115X50)

PROTECTOR (50X20X8)

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

PROTECTOR (50X50X5)

WIRE, STARTER MOTOR LEAD | Includes Item(s) 5

CAP, STARTER MOTOR

WIRE,BATTERY PLUS LEAD | Includes Item(s) 7 - 7 This part replaces 33820-48E00.

CAP, BATTERY PLUG | MODEL V

CAP, BATTERY PLUG | MODEL W/X/Y/K1

WIRE, BATTERY MINUS
