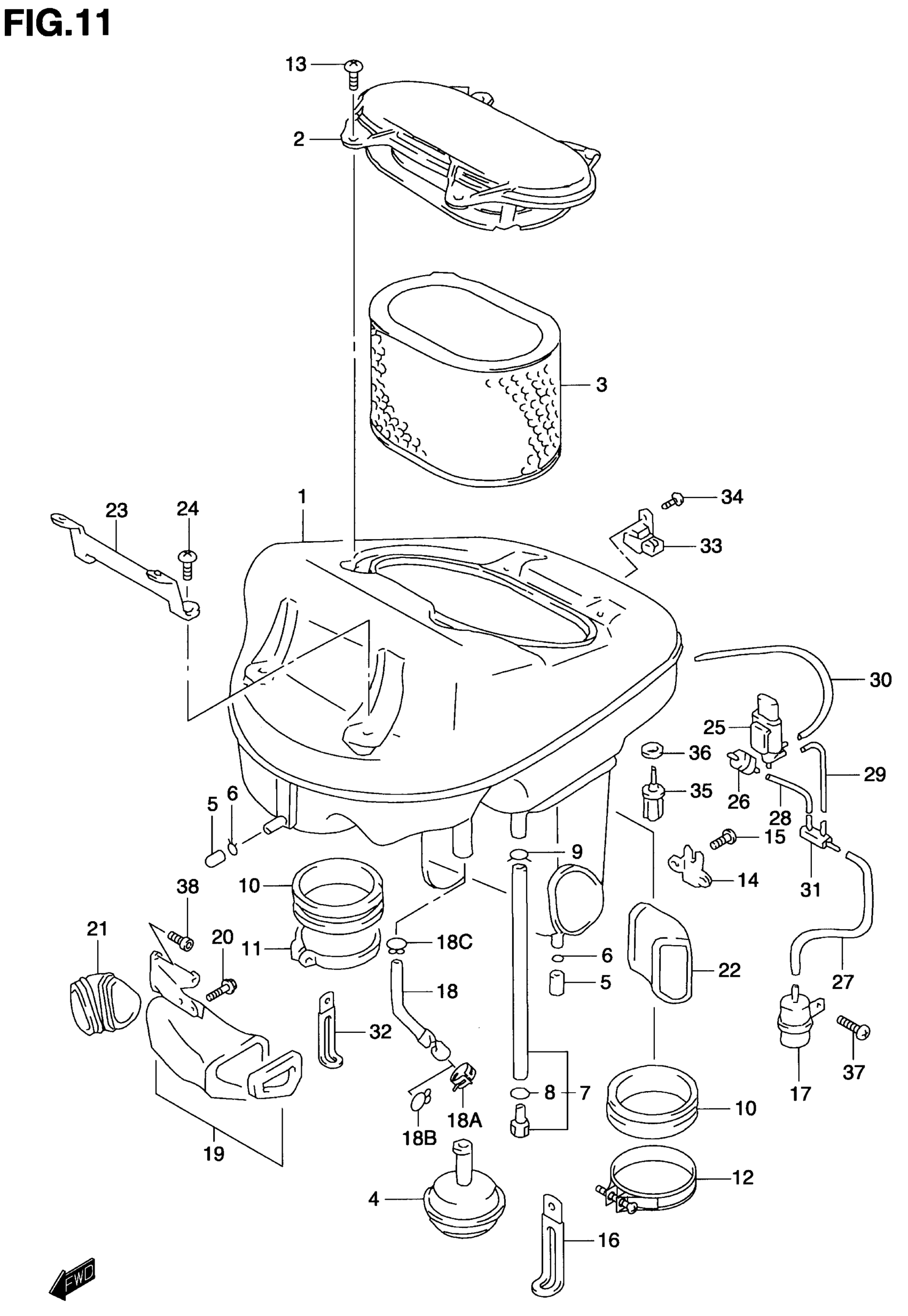

Suzuki TL1000S (2001) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL V/W/X

13700-02F00

Unavailable

1

CLEANER ASSY, AIR | MODEL Y/K1; Includes Item(s) 2 - 16 This part replaces 13700-02F20.

13700-02F00

Unavailable

2

CAP

13740-02F00

Unavailable

3

FILTER

13780-02F00

Unavailable

4

DIAPHRAGM

13895-02F00

Unavailable

5

.PLUG

13859-41B10

$7.38

6

CLIP

09401-14301

$2.35

7

TUBE, DRAIN

13870-11218

Unavailable

8

CLIP

09401-11101

$2.36

9

CLIP

09401-13409

$2.12

10

TUBE, OUTLET

13881-02F00

Unavailable

11

CLAMP

13826-02F00

$7.57

12

CLAMP

13826-02F00

$7.57

13

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

14

BRACKET, SOLENOID VALVE

18116-02F00

Unavailable

15

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

16

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

17

CHAMBER, VACUUM

13715-02F00

Unavailable

18

TUBE, BREATHER | MODEL V

13851-02F00

Unavailable

18

TUBE, BREATHER | MODEL W/X/Y/K1

13851-02F10

Unavailable

18A

CLAMP | MDOEL V

09402-28511

$6.88

18B

CLIP | MODEL W/X/Y/K1

09401-15301

$2.45

18C

CLIP

09401-14403

$4.77

19

DUCT, AIR CLEANER | Includes Item(s) 20

13890-02F00

Unavailable

20

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

21

BOOT,AIR INLET, This part replaces 13892-02F00.

13892-02F01

Unavailable

22

TUBE,INLET This part replaces 13893-02F00.

13893-02F01

Unavailable

23

BRACKET

13980-02F00

Unavailable

24

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

25

VALVE ASSY, SOLENOID

18115-70G10

$123.07

26

VALVE, CHECK

95569-78040

$44.97

27

HOSE | L:600?260

09355-40805-600

$11.33

28

HOSE | L:600?40

09355-40805-600

$11.33

29

HOSE | L:600?70

09355-40805-600

$11.33

30

HOSE | L:600?380

09355-40805-600

$11.33

31

3 WAY

09367-04009

$4.73

32

CLAMP(L:80) | MODEL V/W This part replaces 09404-06433.

09404-06036

$1.74

33

SENSOR, BOOST

15620-02F00

$233.13

34

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

35

SENSOR, AIR TEMPERATURE

13650-61B00

$109.08

36

GASKET (12X17X1.0)

09168-12017

$1.95

37

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

38

BOLT This part replaces 01580-06163.

01580-0616A

$2.42
