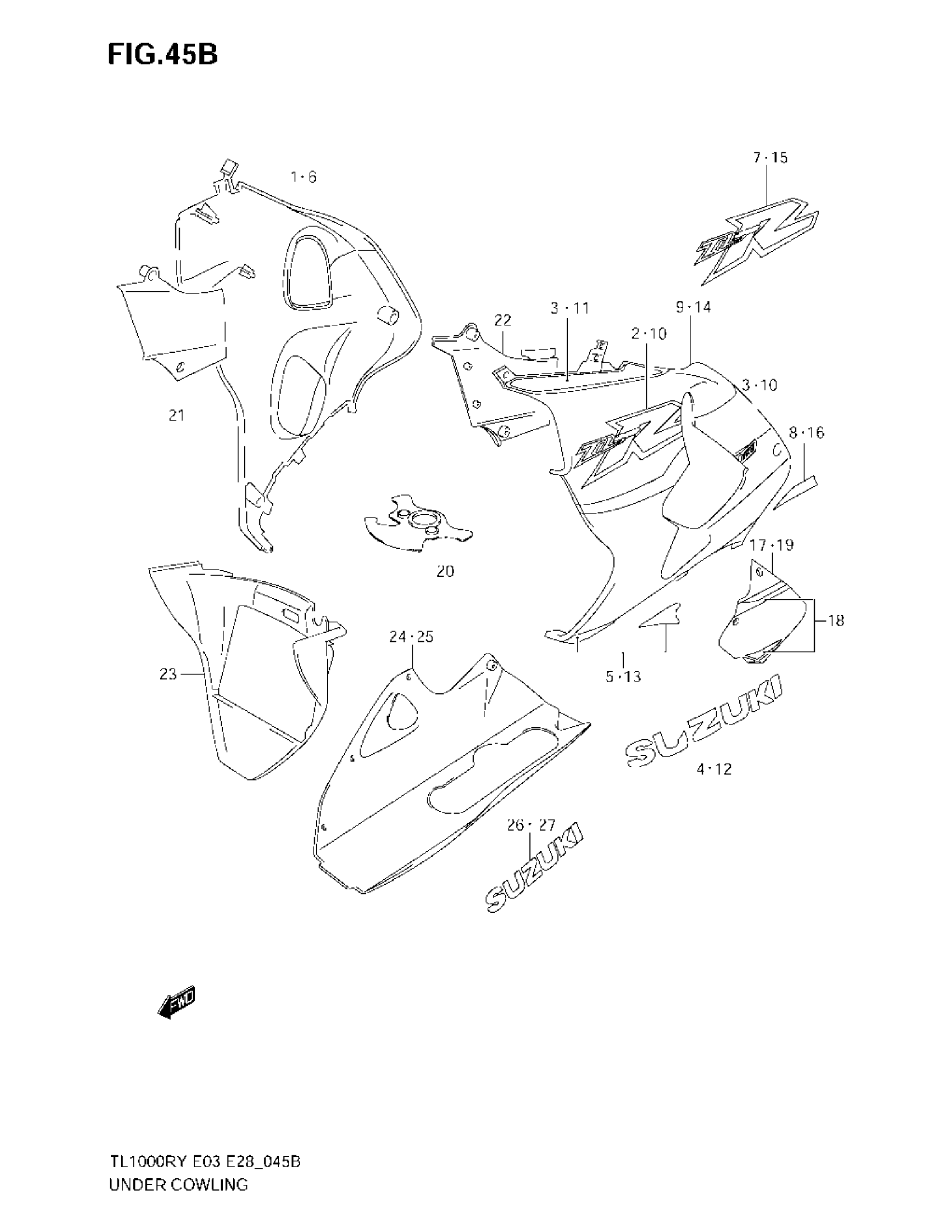

Suzuki TL1000R (2003) UNDER COWLING (MODEL Y) Diagram

#

Description
Price

1

COWLING, UNDER RH | FOR L99; Includes Item(s) 2 - 5

94407-02FE0-M18

Unavailable

2

EMBLEM, "TL1000R"

68182-02FB0-K8S

Unavailable

3

TAPE, UPPER (BLUE)

68185-02FB0-1LF

Unavailable

4

EMBLEM, "SUZUKI" (BLUE)

68181-02FB0-1LF

Unavailable

5

TAPE SET, LOWER (BLUE)

68180-02FA0-Y3P

Unavailable

6

COWLING, UNDER RH (YELLOW) | Includes Item(s) 7 - 8

94407-02FF0-Y9H

Unavailable

7

EMBLEM, "TL1000R"

68181-02F30-CA4

Unavailable

8

TAPE, LOWER RH (SILVER)

68185-02FA0-Y2D

Unavailable

9

COWLING, UNDER LH | FOR L99; Includes Item(s) 10 - 13

94408-02FE0-M18

Unavailable

10

EMBLEM, "TL1000R"

68182-02FB0-K8S

Unavailable

11

TAPE, UPPER (BLUE)

68195-02FB0-1LF

Unavailable

12

EMBLEM, "SUZUKI" (BLUE)

68191-02FB0-1LF

Unavailable

13

TAPE SET, LOWER (BLUE)

68190-02FA0-Y3P

Unavailable

14

COWLING, UNDER LH (YELLOW) | Includes Item(s) 15 - 16

94408-02FF0-Y9H

Unavailable

15

EMBLEM, "TL1000R"

68191-02F30-CA4

Unavailable

16

TAPE, LOWER LH (SILVER)

68195-02FA0-Y2D

Unavailable

17

LID ASSY, LH (BLUE) | FOR L99; Includes Item(s) 18

94405-02FE0-1LE

Unavailable

18

TAPE, LOWER (WHITE)

68199-02FB0-0JW

Unavailable

19

LID, LH (YELLOW)

94690-02FA0-Y9H

Unavailable

20

COVER, LOWER BRACKET

94458-02FA0

Unavailable

21

COWLING, INNER RH

94461-02FA0

Unavailable

22

COWLING, INNER LH

94462-02FA0

Unavailable

23

COWLING, CENTER

94490-02FA0

Unavailable

24

COWLING, REAR (BLUE) | FOR L99

94660-02FA0-Y3P

Unavailable

25

COWLING, REAR (SILVER) | FOR Y9H; Includes Item(s) 26 - 27

94606-02FB0-Y2D

Unavailable

26

EMBLEM, RH (BLACK)

68191-02F20-Y7L

Unavailable

27

EMBLEM, LH (BLACK)

68181-33C20-Y7L

Unavailable

28

COLOR :

SPECIAL NOTE

Unavailable
