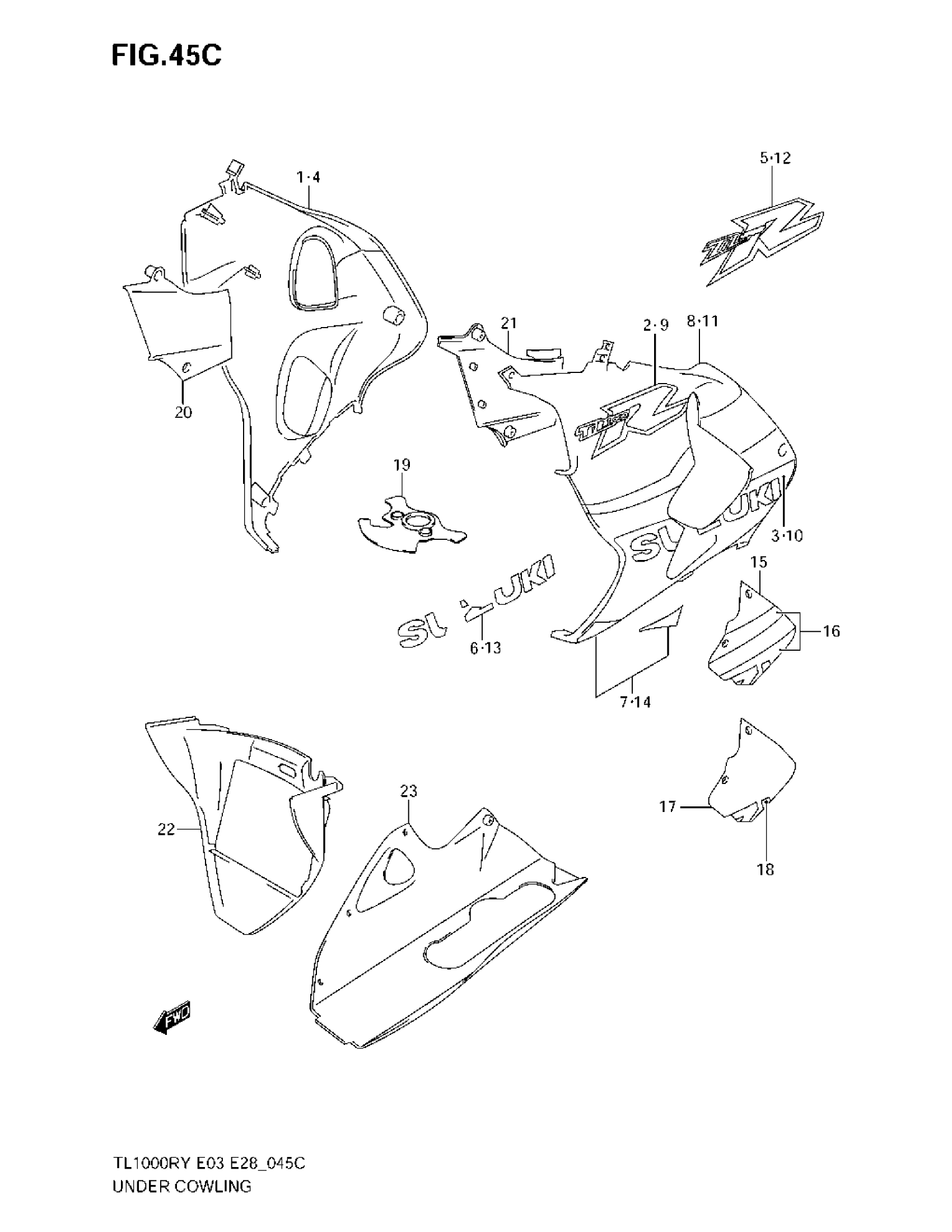

Suzuki TL1000R (2003) UNDER COWLING (MODEL K1) Diagram

#

Description
Price

1

COWLING, UNDER RH | FOR L99; Includes Item(s) 2 - 3

94407-02FG0-L99

Unavailable

2

EMBLEM, "TL1000R" RH

68182-02FC0-FL4

Unavailable

3

TAPE SET, LOWER

68180-02FB0-M18

Unavailable

4

COWLING, UNDER RH (YELLOW) | Includes Item(s) 5 - 7

94407-02FH0-Y9H

Unavailable

5

EMBLEM, "TL1000R" RH

68181-02F30-FL9

Unavailable

6

EMBLEM, "SUZUKI" (BLACK)

68181-02FC0-Y7L

Unavailable

7

TAPE, LOWER RH (BLACK)

68180-02FA0-Y7L

Unavailable

8

COWLING, UNDER LH | FOR L99; Includes Item(s) 9 - 10

94408-02FG0-L99

Unavailable

9

EMBLEM, "TL1000R" LH

68192-02FC0-FL4

Unavailable

10

TAPE SET, UNDER This part replaces 68190-02FB0-M18.

68190-02FB1-M18

Unavailable

11

COWLING, UNDER LH (YELLOW) | Includes Item(s) 12 - 14

94408-02FH0-Y9H

Unavailable

12

EMBLEM, "TL1000R" LH

68191-02F30-FL9

Unavailable

13

EMBLEM, "SUZUKI" (BLACK)

68191-02FC0-Y7L

Unavailable

14

TAPE, LOWER LH (BLACK)

68190-02FA0-Y7L

Unavailable

15

LID ASSY, LH (WHITE) | FOR L99; Includes Item(s) 16

94405-02FF0-0JW

Unavailable

16

TAPE, LOWER

68199-02FC0-G8Z

Unavailable

17

LID ASSY, LH (YELLOW) | Includes Item(s) 18

94405-02FG0-Y9H

Unavailable

18

EMBLEM (BLACK)

68199-02FD0-Y7L

Unavailable

19

COVER, LOWER BRACKET

94458-02FA0

Unavailable

20

COWLING, INNER RH

94461-02FA0

Unavailable

21

COWLING, INNER LH

94462-02FA0

Unavailable

22

COWLING, CENTER

94490-02FA0

Unavailable

23

COWLING, REAR (BLUE) | FOR L99

94660-02FA0-1LE

Unavailable

23

COWLING, REAR (BLACK) | FOR Y9H

94660-02FA0-Y7L

Unavailable

24

COLOR :

SPECIAL NOTE

Unavailable
