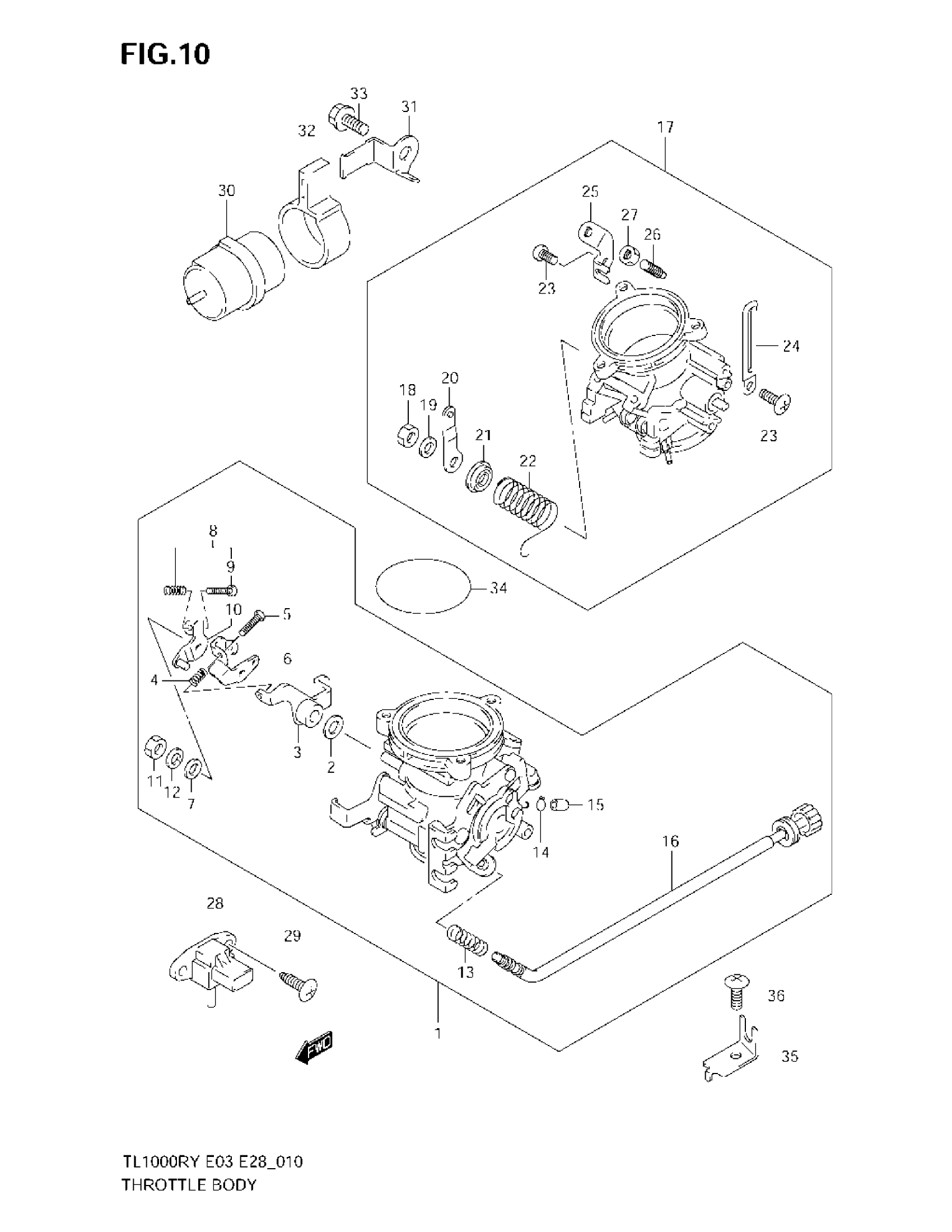

Suzuki TL1000R (2003) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE FRONT

13401-02FB0

Unavailable

1

BODY ASSY, THROTTLE FRONT | E33; Includes Item(s) 2 - 16

13401-02FC0

Unavailable

2

PACKING

13557-02FA0

Unavailable

3

LEVER ASSY

13542-02FA0

Unavailable

4

SPRING

13375-60A00

$8.42

5

SCREW

13602-42E10

Unavailable

6

LEVER

13543-02FA0

Unavailable

7

RING

95569-82140

Unavailable

8

SCREW SET, ADJUST

13601-60AT0

Unavailable

9

SCREW This part replaces 02112-04203.

02112-0420A

$1.49

10

LEVER ASSY

13544-02FA0

Unavailable

11

NUT This part replaces 13607-37010.

08310-00087

$2.13

12

.LOCK WASHER

08321-01087

$2.13

13

SPRING

13271-93011

$5.32

14

CLIP

09401-06101

$2.03

15

CAP

13274-84000

$3.82

16

ADJUST SCREW ASSY

13270-02FA0

$102.17

17

BODY ASSY, THROTTLE REAR

13402-02FB0

Unavailable

17

BODY ASSY, THROTTLE REAR | E33; Includes Item(s) 18 - 27

13402-02FC0

Unavailable

18

NUT This part replaces 13607-37010.

08310-00087

$2.13

19

.LOCK WASHER

08321-01087

$2.13

20

LEVER ASSY

13545-02FA0

Unavailable

21

RING

13574-02FA0

Unavailable

22

SPRING

13573-02FA0

Unavailable

23

SCREW

13602-02F00

Unavailable

24

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

25

BRACKET

13627-02FA0

Unavailable

26

SCREW

13605-47080

$7.77

27

NUT

13607-47070

$3.13

28

SENSOR, AIR PRESSURE

18590-80C50

Unavailable

29

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

30

CHAMBER, VACUUM

13715-02FA0

Unavailable

31

PLATE

13911-02FA0

Unavailable

32

BAND

13912-02FA0

Unavailable

33

BOLT

09248-10010

$4.17

34

.O RING (D:2.4,ID:60.5)

09280-60005

$3.18

35

PLATE, IDLE ADJUST

13279-02FA0

$6.47

36

SCREW This part replaces 02142-06163.

02142-0616A

$1.49
