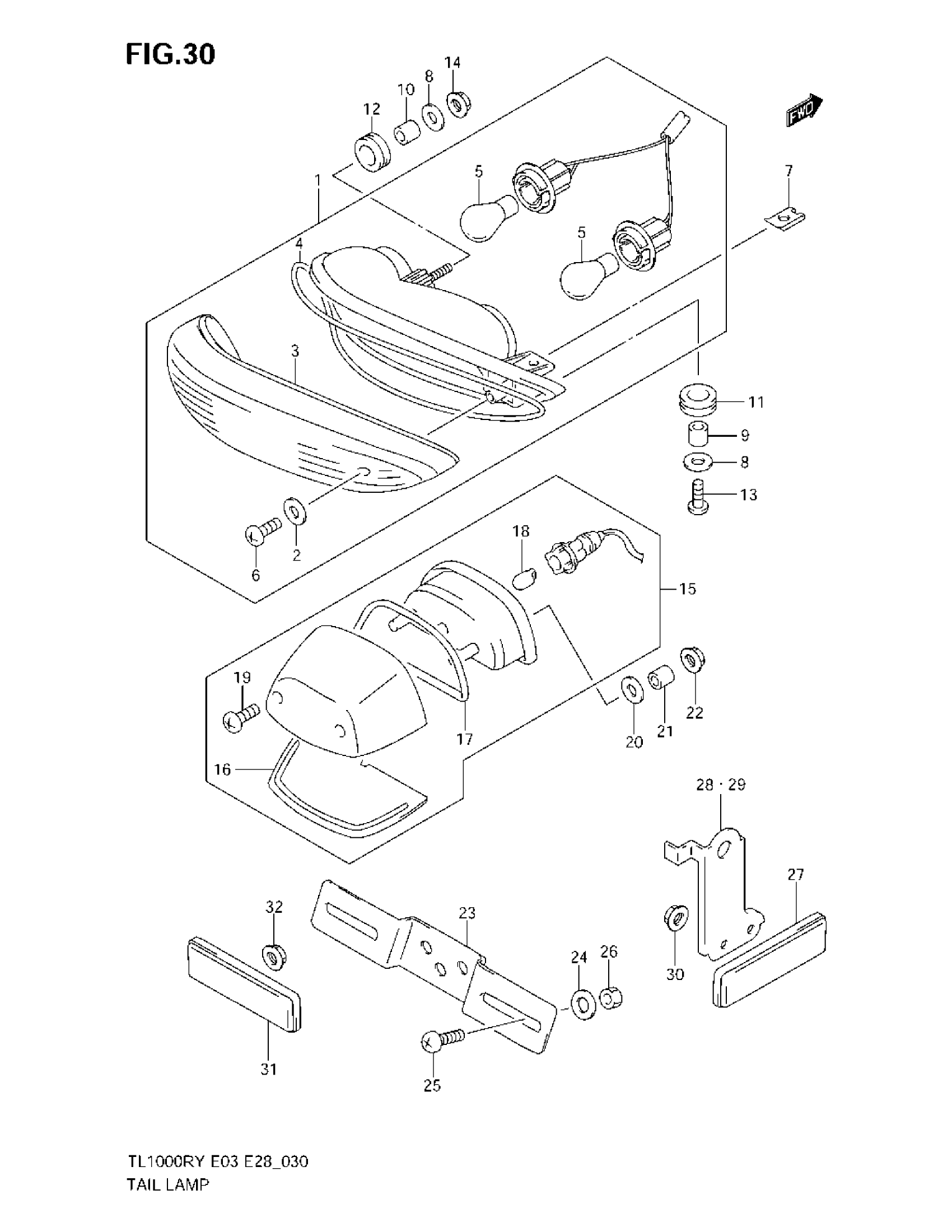

Suzuki TL1000R (2003) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 6

35710-02F30

Unavailable

2

GASKET

35627-43010

$2.28

3

LENS

35712-02F30

Unavailable

4

GASKET

35713-02F00

$7.63

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

6

SCREW

03211-04207

$1.49

7

NUT, LOWER

09148-05020

$2.18

8

.WASHER (6.5X20X1.6)

09160-06088

$1.65

9

SPACER, LOWER (6.5X10X9.0)

09180-06285

$2.74

10

SPACER, CENTER (6.5X10X12)

09180-06290

$2.35

11

CUSHION, LOWER

09320-09009

$4.64

12

CUSHION, CENTER

09320-09010

$2.84

13

SCREW This part replaces 03541-05203.

03541-0520A

$1.80

14

NUT This part replaces 08316-10063.

08316-1006B

$2.50

15

LAMP ASSY, LICENSE | Includes Item(s) 16 - 19

35910-02F00

Unavailable

16

LENS

35912-02F00

Unavailable

17

GASKET

35913-02F00

Unavailable

18

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

19

SCREW This part replaces 03211-04163.

03211-0416A

$1.49

20

.WASHER (6.5X20X1.6)

09160-06088

$1.65

21

SPACER (5.5X9.5X11.5)

09180-05054

Unavailable

22

NUT This part replaces 08316-10053.

08316-1005A

$2.19

23

BRACKET, LICENSE PLATE

35927-48B30

$14.20

24

.WASHER (6.5X20X1.6)

09160-06088

$1.65

25

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

26

NUT This part replaces 08316-10063.

08316-1006B

$2.50

27

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$20.88

28

BRACKET, REAR RH

35975-02F10

Unavailable

29

BRACKET, REAR LH

35976-02F10

Unavailable

30

NUT This part replaces 08310-00053.

08310-0005A

$1.84

31

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$20.88

32

NUT This part replaces 08316-10053.

08316-1005A

$2.19
