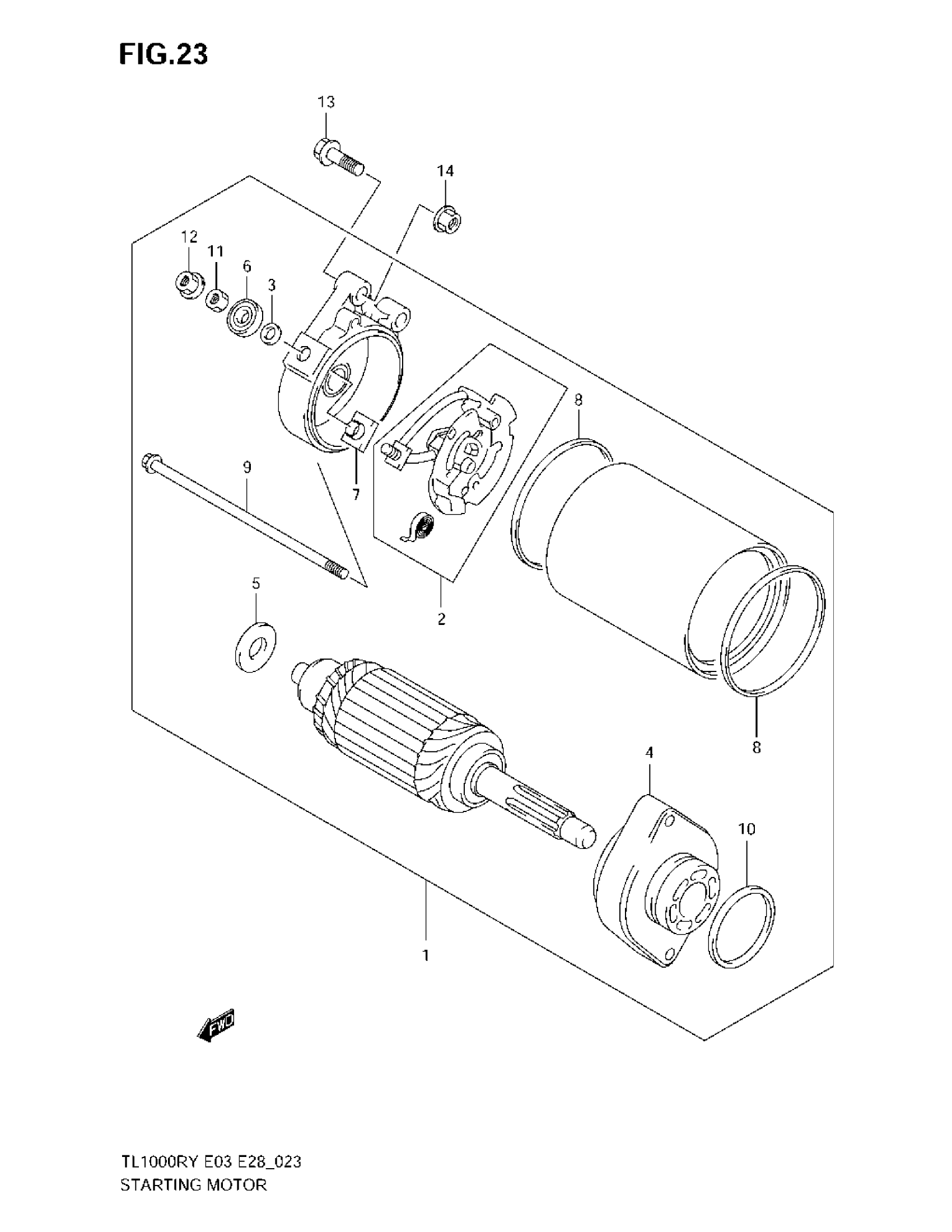

Suzuki TL1000R (2003) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 12

31100-02F10

Unavailable

2

HOLDER SET, BRUSH

31132-45C00

$71.38

3

O RING

31143-38300

$5.10

4

BRACKET SET

31150-44B00

Unavailable

5

SHIM SET

31170-43400

Unavailable

6

BUSHING

31172-38300

$6.55

7

BUSHING

31173-88C00

Unavailable

8

O RING

31264-44110

$11.87

9

BOLT This part replaces 31281-24B10.

31281-31D00

$8.65

10

O RING (D:2.1,ID:34.7)

09280-35005

$9.05

11

.NUT

08310-00067

$2.13

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80

13

BOLT

01547-06257

$2.03

14

NUT This part replaces 08361-35068.

08361-3506A

$1.80
