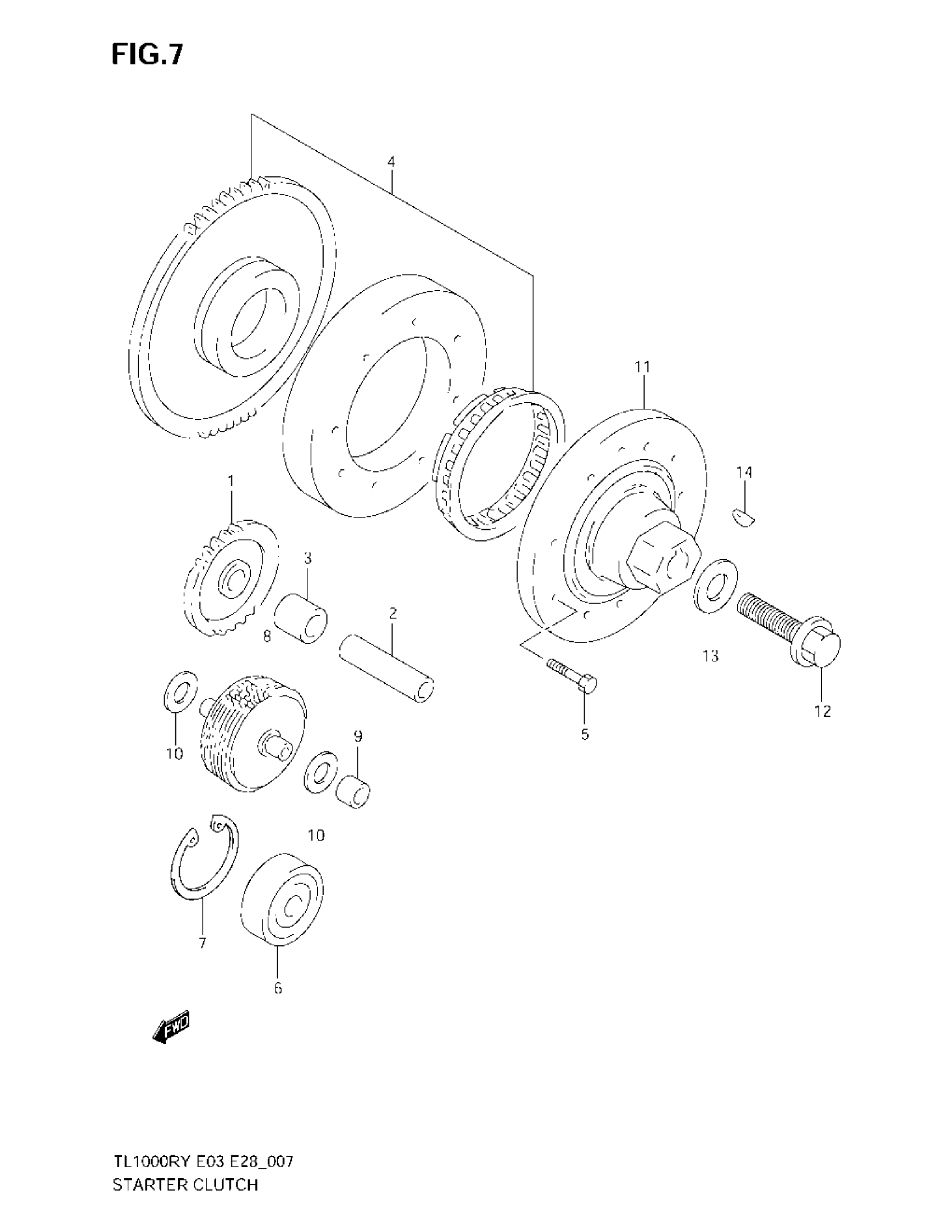

Suzuki TL1000R (2003) STARTER CLUTCH Diagram

GEAR, STARTER IDLE

12612-02F00

Unavailable

PIN

09206-12002

$16.00

SPACER

09180-12140

$9.10

CLUTCH SET, STARTER

12600-02841

Unavailable

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

BEARING

09262-12001

$18.47

CIRCLIP This part replaces 08331-41286.

08331-41289

$2.68

LIMITER ASSY, STARTER IDLE GEAR (NT:44) This part replaces 12600-12D00.

12600-12D01

$262.28

BUSH LIMITER GEAR SHAFT

12618-31D01

$22.62

WASHER

08211-10221

$2.28

HOUSING, STARTER CLUTCH

12641-02F00

Unavailable

BOLT

09103-12004

$4.00

WASHER (12X30X3.0)

09160-12036

$3.93

KEY

09420-04008

$3.42
