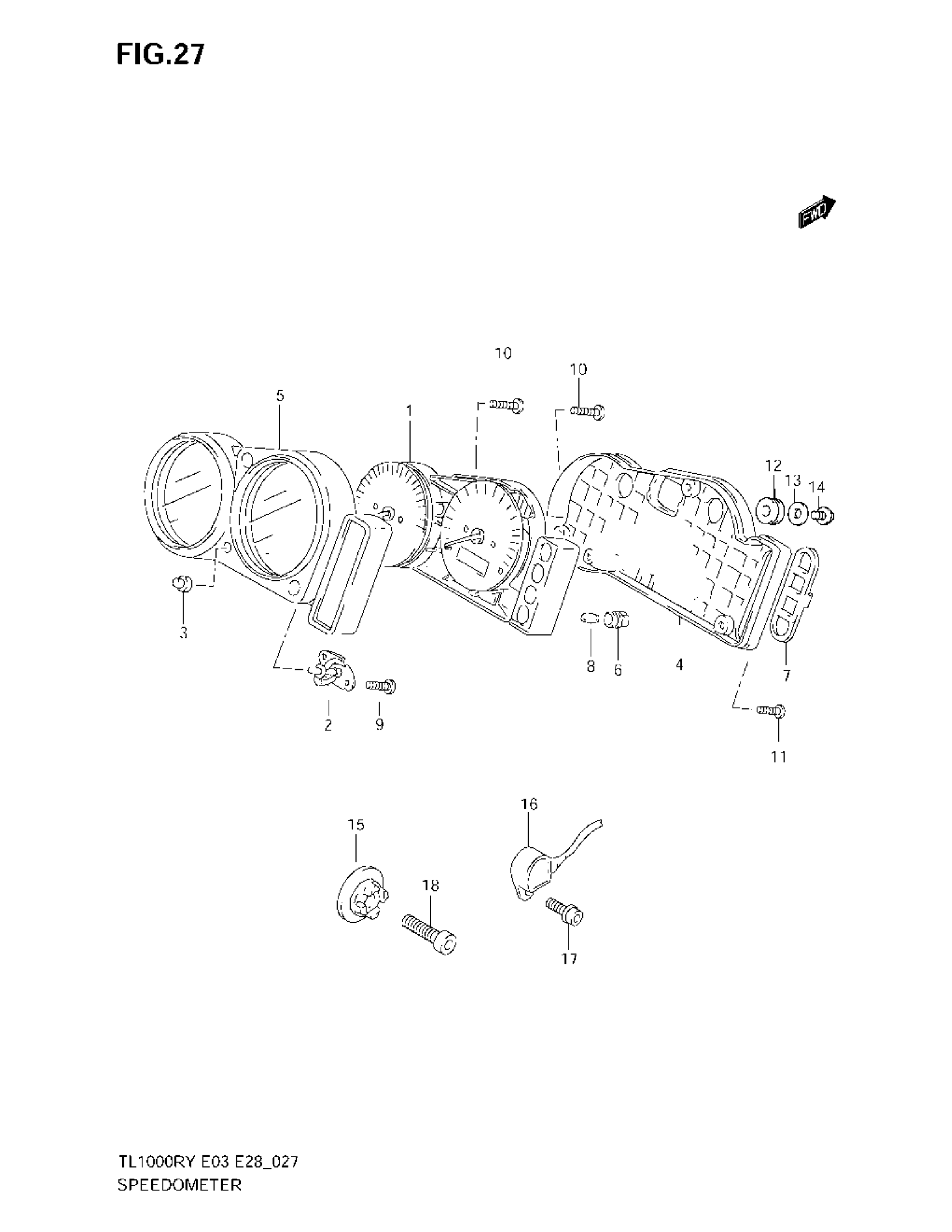

Suzuki TL1000R (2003) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL W/X/Y

34120-02FC0

Unavailable

1

SPEEDOMETER (KILO) | MODEL W/X/Y E28

34120-02FA0

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL K1/K2/K3

34120-02FH0

Unavailable

1

SPEEDOMETER (KILO) | MODEL K1/K2/K3 E28

34120-02FF0

Unavailable

2

SWITCH LEVER

34123-33E00

Unavailable

3

SWITCH GUM

34124-33E00

$5.75

4

CASE ASSY

34130-33E01

Unavailable

5

VISOR

34150-33EA0

Unavailable

6

SOCKET (T6.5)

34172-33E00

$7.53

7

CAP, BLIND

34198-33E10

Unavailable

8

.BULB (12V1.7W)

09471-12108

$3.42

9

SCREW (3X10)

09132-03005

Unavailable

10

SCREW This part replaces 03511-04163.

03511-0416A

$1.78

11

.SCREW This part replaces 03541-04203.

03541-0420A

$2.15

12

CUSHION, METER

34955-33E00

$3.56

13

WASHER, METER (5.5X16X1.2)

09160-05037

$1.49

14

SCREW This part replaces 02162-05083.

02162-0508A

$2.07

15

ROTOR,SPEED | MODEL W/X/Y This part replaces 34981-42E00.

34981-42E01

$17.42

15

ROTOR,SPEED | MODEL K1/K2/K3 This part replaces 34981-35F00.

34981-38G01

$17.92

16

SENSOR, SPEED | MODEL W/X/Y This part replaces 34990-33E10.

34990-35F00

$127.72

16

SENSOR, SPEED | MODEL K1/K2/K3

34990-35F00

$127.72

17

BOLT This part replaces 07120-05103.

07120-0510B

$3.05

18

BOLT | MODEL W/X/Y This part replaces 07130-08203.

07130-0820B

$3.49

18

BOLT | MODEL K1/K2/K3 This part replaces 07130-08253.

07130-0825B

$3.37
