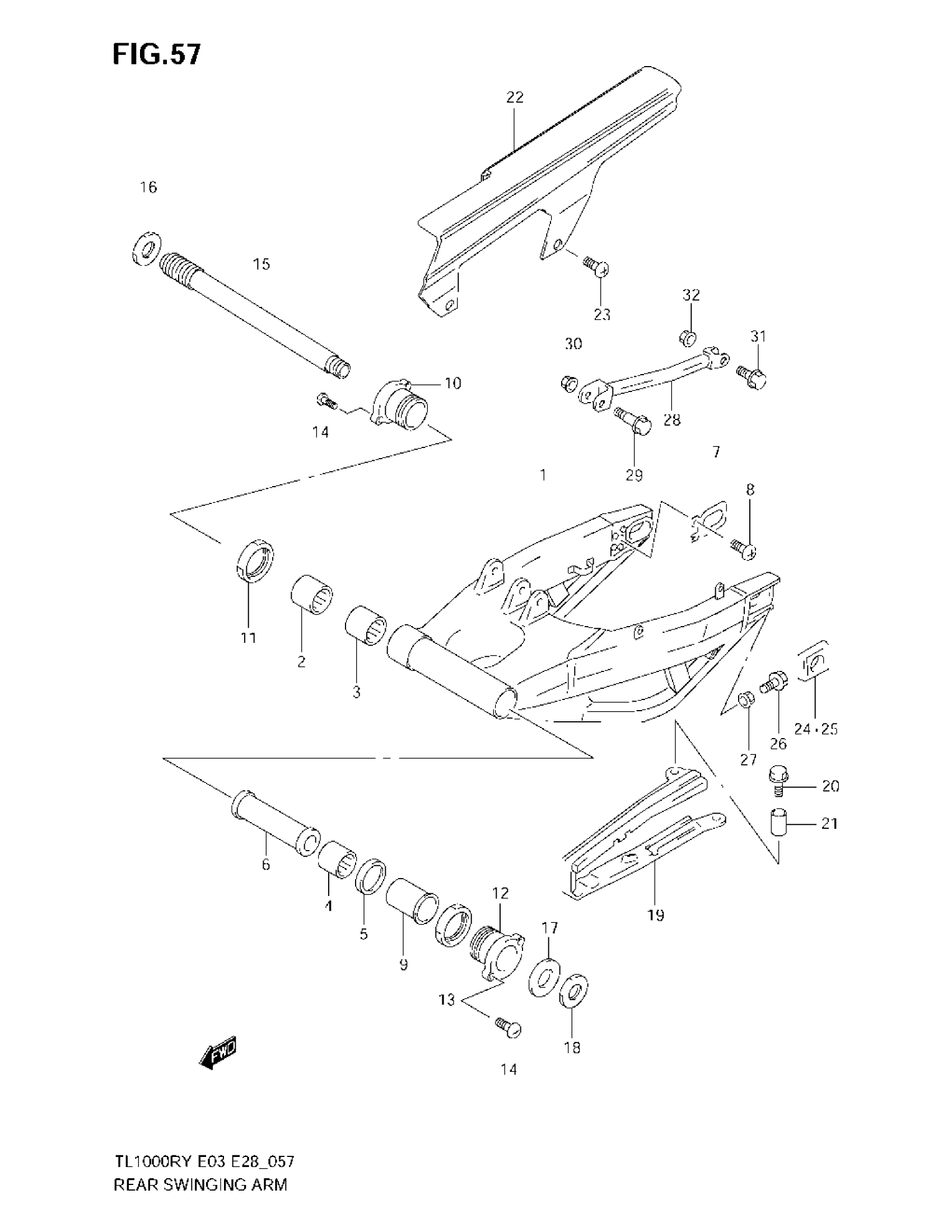

Suzuki TL1000R (2003) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 6

61000-02FA0

Unavailable

2

BEARING, OUTER RH (25X52X15)

09262-25061

$33.12

3

BEARING, INNER RH

08113-62057

$25.60

4

BEARING, LH (30X40X25)

09263-30040

$38.65

5

OIL SEAL (30X40X6)

09283-30053

$9.24

6

SPACER, CENTER This part replaces 61281-33E10.

61281-33E20

$56.48

7

PLATE, BRACKET

61124-33E00

$6.85

8

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

9

SPACER, BEARING

61251-02FA0

Unavailable

10

BOSS, PIVOT RH

61212-02FA0

Unavailable

11

NUT, PIVOT BOSS RH

61213-33E00

Unavailable

12

BOSS, PIVOT LH

61214-02FA0

Unavailable

13

NUT, PIVOT BOSS LH

61215-33E00

Unavailable

14

SCREW This part replaces 02122-05123.

02122-0512A

$1.86

15

SHAFT, PIVOT

61211-02FA0

Unavailable

16

NUT, PIVOT BOLT

61214-40C31

$56.90

17

WASHER

09160-25070

$4.77

18

NUT This part replaces 09159-25001.

09159-25003

$31.85

19

BUFFER,CHAIN TO This part replaces 61273-02FA0.

61273-02FA1

$60.57

20

BOLT (6X20)

09116-06152

$2.36

21

SPACER (6.5X9X5)

09180-06306

$2.03

22

CASE, CHAIN

61310-34E00

$94.72

23

SCREW (6X16)

09139-06083

$2.26

24

WASHER, CHAIN ADJUSTER RH

61445-33E00

$53.73

25

WASHER, CHAIN ADJUSTER LH

61446-33E10

$53.98

26

BOLT (8X50)

09100-08287

$3.10

27

NUT This part replaces 08316-10083.

08316-1008B

$2.66

28

TORQUE LINK, REAR

64310-02FA0

Unavailable

29

BOLT, FRONT (8X35.5)

09111-08085

$6.47

30

NUT

08319-31087

$2.32

31

BOLT, REAR (10X37)

09103-10019

$2.63

32

NUT

08319-31107

$2.73
