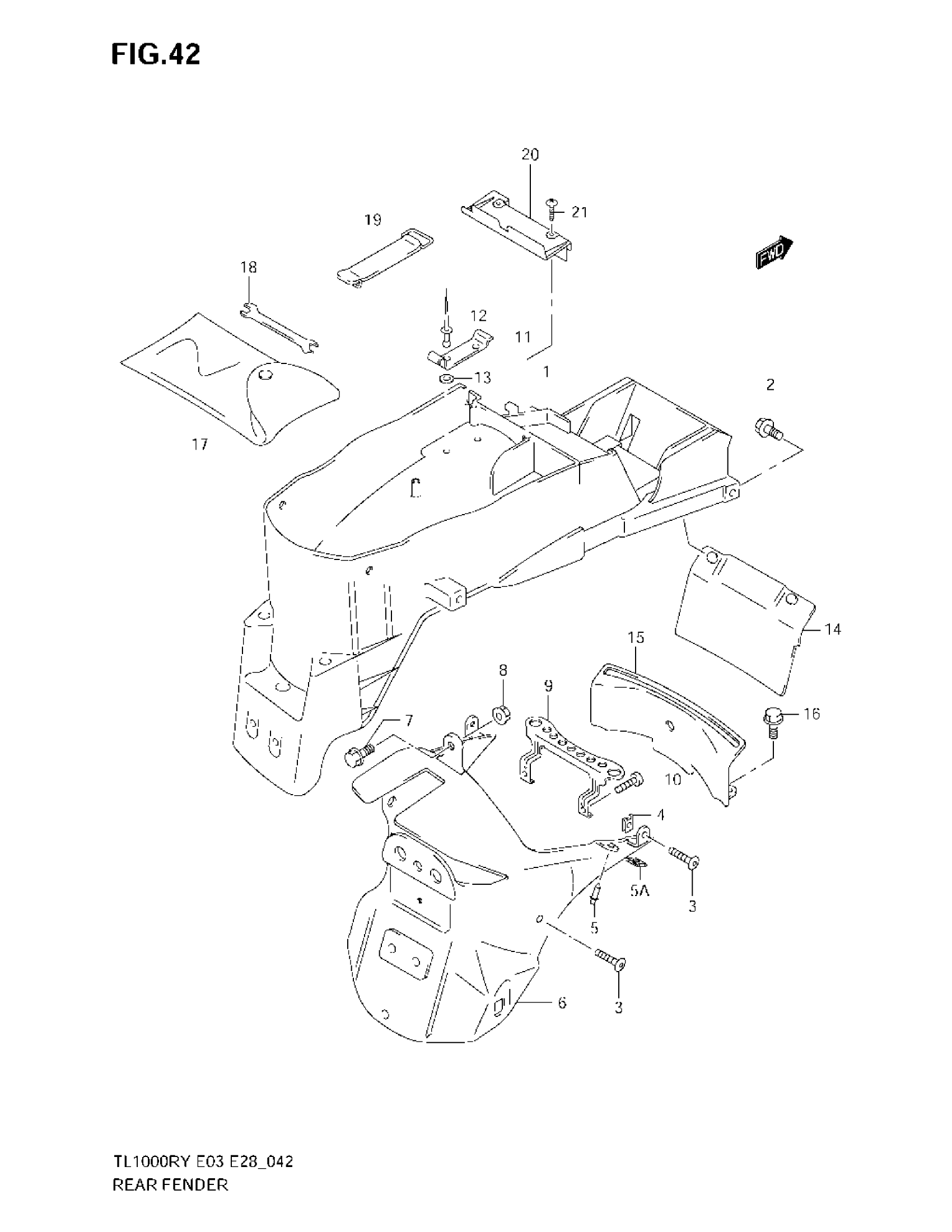

Suzuki TL1000R (2003) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT | MODEL W This part replaces 63111-02FA0.

63111-02FA1

$231.78

1

FENDER, REAR FRONT | MODEL X/Y/K1/K2/K3

63111-02FA1

$231.78

1

FENDER, REAR FRONT | MODEL W E33 This part replaces 63111-02FB0.

63111-02FB1

Unavailable

1

FENDER, REAR FRONT | MODEL X/Y/K1/K2/K3 E33

63111-02FB1

Unavailable

2

BOLT, CENTER | MODEL W This part replaces 09116-06144.

09116-06165

$3.30

2

BOLT | MODEL X/Y/K1/K2/K3

09116-06165

$3.30

3

SCREW

09139-05021

$1.49

4

NUT

09148-05021

$1.88

5

CLIP | MODEL W

09409-07313

$3.80

5

SCREW | MODEL X/Y/K1/K2/K3 This part replaces 03241-15123.

03241-1512B

$2.38

5A

NUT | MODEL X/Y/K1/K2/K3 This part replaces 09148-05004.

09148-05013

$1.94

6

FENDER, REAR

63112-02FA0

$123.37

7

BOLT

09111-06066

$2.64

8

NUT This part replaces 08316-10063.

08316-1006B

$2.50

9

BRACKET,REAR CO This part replaces 63256-02FA0.

63256-02FAV

Unavailable

10

SCREW

09132-05041

$0.78

11

HOLDER, TOOL

63466-02F00

Unavailable

12

RIVET

09229-04020

$2.56

13

WASHER This part replaces 08322-01043.

08322-0104A

$1.92

14

MUD GUARD,RR FE This part replaces 63411-02FB0.

63411-02FA0

Unavailable

15

MUDGUARD, FRONT LOWER

63421-02FA1

Unavailable

16

BOLT

09111-06066

$2.64

17

TOOL ASSY This part replaces 09800-21039.

09800-21089

$88.40

18

SPANNER (8X10)

09813-00027

Unavailable

19

BAND,TOOL This part replaces 47435-02F01.

47435-02F02

$9.40

20

COVER, REAR FENDER | MODEL X/Y/K1/K2/K3

63171-02FA0

Unavailable

21

SCREW | MODEL X/Y/K1/K2/K3 This part replaces 03541-05163.

03541-0516A

$1.37
