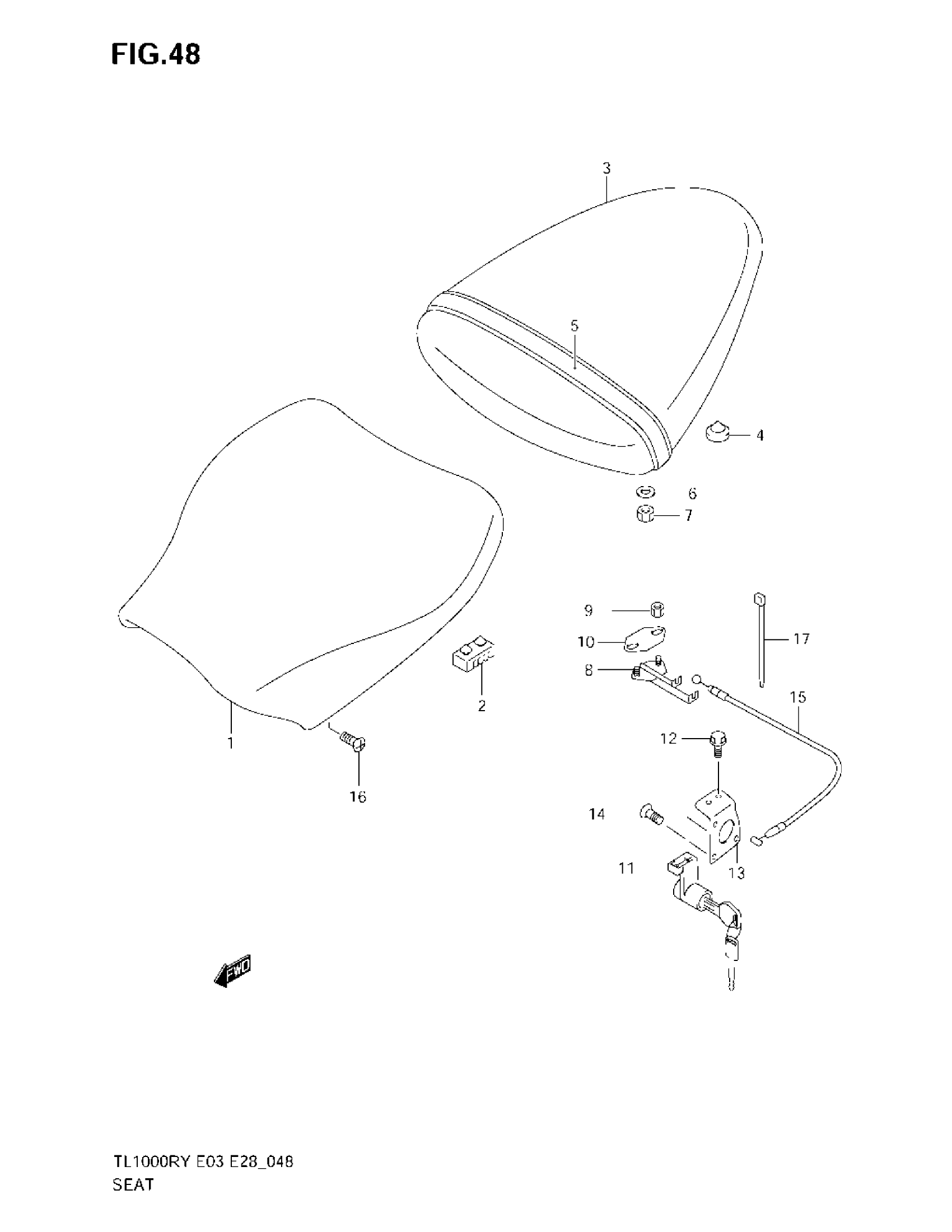

Suzuki TL1000R (2003) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 This part replaces 45100-02FA0-R42.

45100-02FA1-R42

$296.82

2

CUSHION

45149-31300

$3.26

3

SEAT ASSY,PILLI | Includes Item(s) 4 - 7 This part replaces 45300-02FA0-R42.

45300-02FA1-R42

$301.00

4

CUSHION

09321-10002

$2.02

5

BAND ASSY,PILLI This part replaces 45180-02FA0-R42.

45180-02FA1-R42

$38.02

6

.WASHER (6.5X20X1.6)

09160-06088

$1.67

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

BRACKET, SEAT SUPPORT

45220-03F00

Unavailable

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

PLATE, BRACKET

45228-03F00

Unavailable

11

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

$88.40

12

BOLT This part replaces 01547-05103.

01547-0510B

$3.22

13

BRACKET, SEAT LOCK

45289-03F00

Unavailable

14

SCREW This part replaces 03141-14123.

03141-1412B

$3.08

15

CABLE, SEAT LOCK

45280-02FA0

Unavailable

16

BOLT, SEAT (6X18)

09106-06064

$5.43

17

CLAMP, CABLE

09407-14407

$2.80
