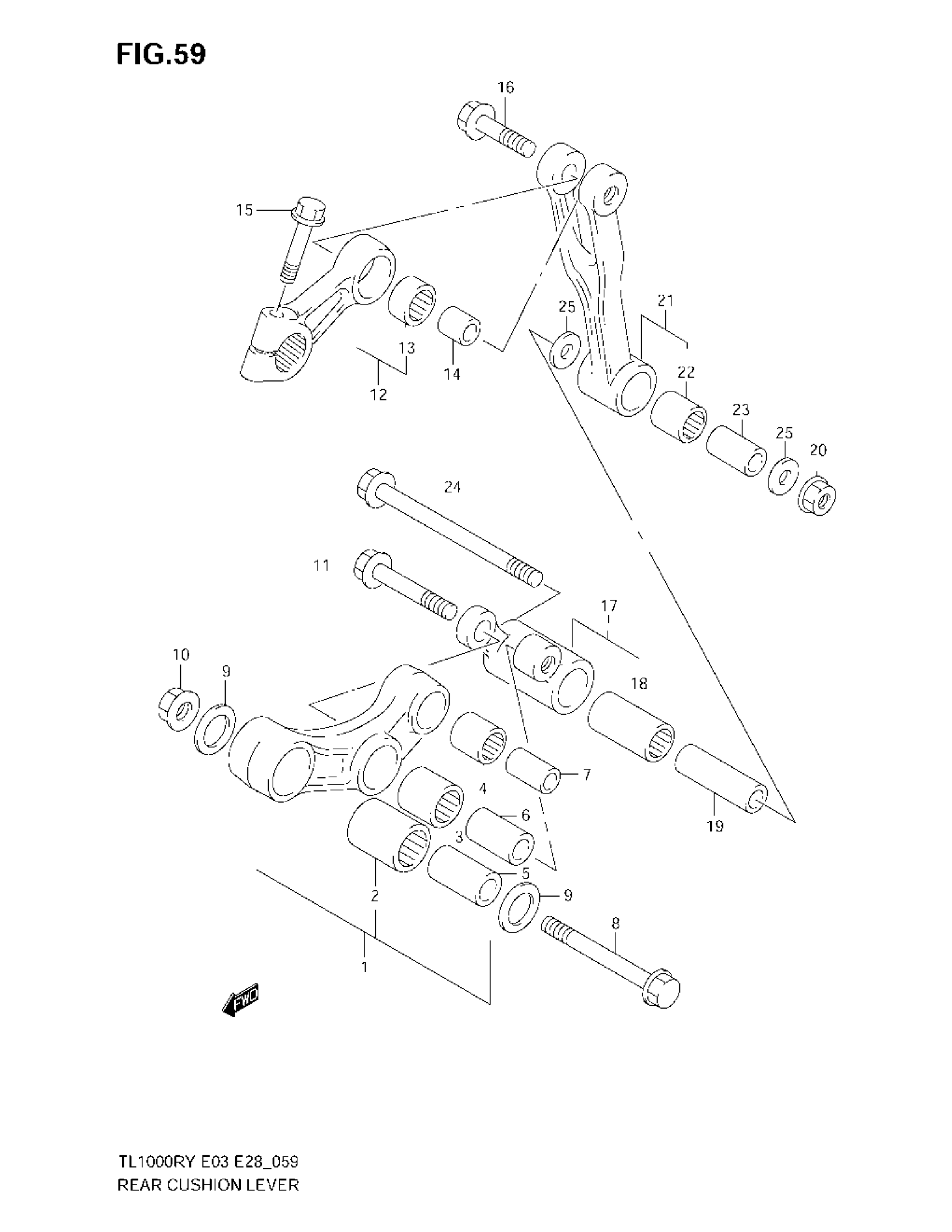

Suzuki TL1000R (2003) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-02870

Unavailable

2

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

3

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, LEVER FRONT (12X20X34

62317-27C10

$16.76

6

SPACER, LEVER CENTER

62317-27C10

$16.76

7

SPACER, LEVER REAR (10X17X30)

62684-40A10

$12.15

8

BOLT, LEVER FRONT (12X72)

62658-33E00

Unavailable

9

WASHER, LEVER FRONT

09181-20186

$2.78

10

NUT This part replaces 08319-31128.

08319-3112A

$3.76

11

BOLT, LEVER CENTER (12X62)

62668-42A02

$10.67

12

ARM SET, REAR CUSHION | Includes Item(s) 13

62600-02880

Unavailable

13

BEARING (17X25X16.7)

09263-17042

$29.70

14

SPACER, ARM (10X17X19)

62646-02FA0

Unavailable

15

BOLT, ARM (8X31)

09103-08042

$4.77

16

BOLT, ARM (10X40)

09103-10044

$4.68

17

ROD SET, REAR CUSHION RH | Includes Item(s) 18

62650-02820

Unavailable

18

BEARING (20X27X23.5)

09263-20071

$25.92

19

SPACER, ROD RH (12X20X57)

62317-02FA0

Unavailable

20

NUT This part replaces 08319-31128.

08319-3112A

$3.76

21

ROD SET, REAR CUSHION LH | Includes Item(s) 22

62640-02820

Unavailable

22

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

23

SPACER, ROD LH (12X20X30)

62684-01D00

$19.37

24

BOLT, ROD (12X131)

62657-31301

Unavailable

25

SHIM (20X28X1.50)

09181-20184

$3.15
