2003 Suzuki TL1000R Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2003 Suzuki TL1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

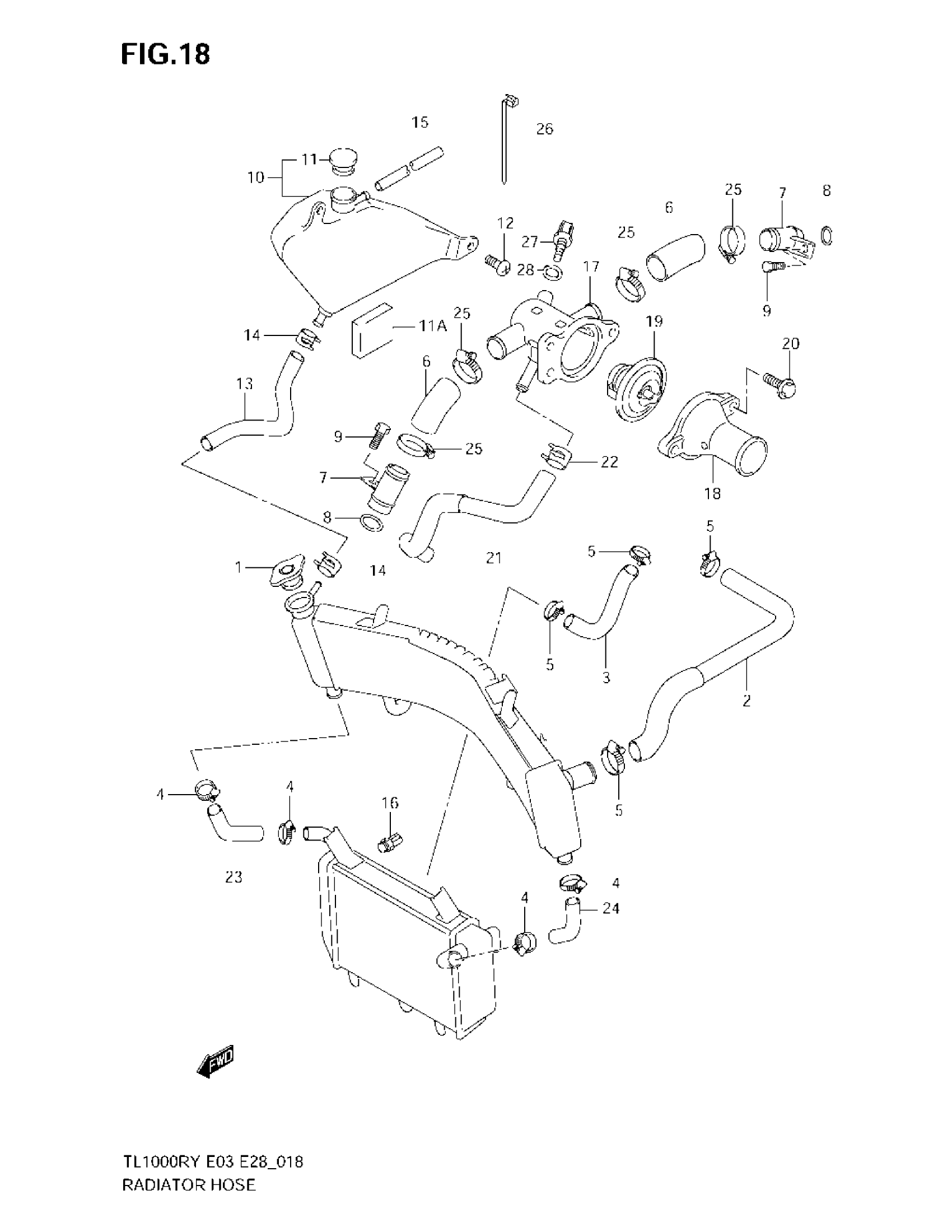

2003 Suzuki TL1000R Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

1
Out of stock

2

HOSE, RADIATOR INLET

17851-02FA0

1
Out of stock

3

HOSE, RADIATOR OUTLET

17852-02FA0

1
Out of stock

4

CLAMP

09402-28511

4
Out of stock

5

CLAMP

09402-38511

4

$11.46

In stock

6

HOSE, CONNECTOR INLET

17853-02F00

2
Out of stock

7

UNION, CONNECTOR HOSE This part replaces 17890-06G00.

17890-06G20

2
Out of stock

8

O RING

09280-18009

2
Out of stock

9

BOLT This part replaces 07130-06123.

07130-0612A

2
Out of stock

10

TANK ASSY, RESERVOIR | Includes Item(s) 11

17910-02FA0

1
Out of stock

11

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

11A

CUSHION This part replaces 51827-12E00.

51827-01A00

1
Out of stock

12

BOLT This part replaces 01550-06253.

01550-0625A

2
Out of stock

13

HOSE SET, RESERVOIR TANK INLE This part replaces 17981-48E00.

17900-27810

1
Out of stock

14

CLIP

09401-08411

2
Out of stock

15

HOSE, TANK OVERFLOW This part replaces 17982-02FA0.

17900-35810

1
Out of stock

16

SWITCH,RDTR FAN | Includes Item(s) 16A This part replaces 17680-33E00.

17680-33E01

1
Out of stock

16A

O RING

17689-50F00

1
Out of stock

17

CONNECTOR,THERMOSTAT INLET

17662-02F11

1
Out of stock

18

CAP,THERMOSTAT CONNECTOR This part replaces 17663-02FA0.

17663-17G00

1
Out of stock

19

THERMOSTAT,WTR, This part replaces 17670-50F00.

17670-50F01

1
Out of stock

20

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

21

HOSE, CONNECTOR TO WATER PUMP

17856-02FA0

1
Out of stock

22

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock

23

HOSE, RADIATOR JOINT RH

17854-02FA0

1
Out of stock

24

HOSE, RADIATOR JOINT LH

17855-02FA0

1
Out of stock

25

CLAMP

09402-28511

4
Out of stock

26

CLAMP, RESERVOIR OVERFLOW HOS

09407-14403

2
Out of stock

27

SENSOR, WATER TEMPERATURE | MODEL W/X/Y/K1/K2

13650-51G10

1
Out of stock

27

SENSOR, WATER TEMPERATURE | MODEL K3

13650-10G00

1
Out of stock

28

GASKET, TEMPERATURE SENSOR | MODEL W/X/Y/K1

09168-12016

1
Out of stock

28

GASKET, TEMPERATURE SENSOR | MODEL K2/K3

09168-12017

1
Out of stock
