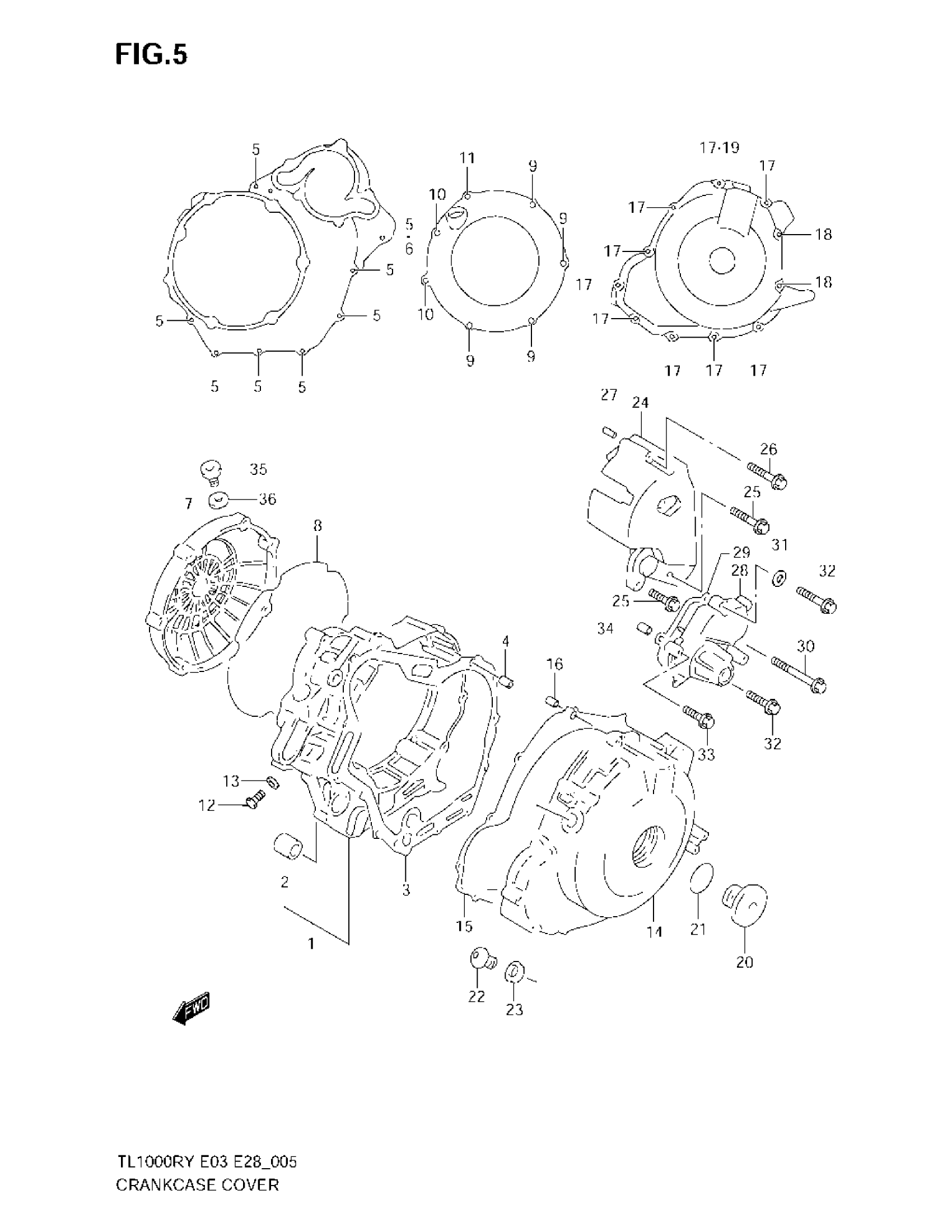

Suzuki TL1000R (2003) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-02F10

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$17.41

3

GASKET

11482-02F10

$23.56

4

PIN

04211-09149

$1.70

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.80

6

GASKET

09168-06023

$2.09

7

COVER, CLUTCH OUTER

11370-02F10

Unavailable

8

O RING

11484-02F10

$22.37

9

BOLT (6X30)

09103-06213

$2.53

10

BOLT (6X75)

09103-06257

$2.98

11

BOLT (6X85)

09103-06226

$4.18

12

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

13

GASKET

09168-06004

$1.46

14

COVER,MAGNETO This part replaces 11351-02F02.

11351-02F03

Unavailable

15

GASKET

11483-02F10

$16.79

16

PIN

04211-09149

$1.70

17

BOLT (6X35)

09103-06214

$2.57

18

BOLT (6X70)

09103-06225

$3.00

19

GASKET

09168-06023

$2.09

20

PLUG

09259-36021

$12.83

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

22

PLUG, SHAFT | MODEL W/X/Y/K1 This part replaces 09248-14005.

09248-14011

$2.81

22

PLUG, T.D.C | MODEL K2/K3

09248-14011

$2.81

23

GASKET

09168-14002

$2.83

24

COVER, ENGINE SPROCKET

11360-02FA0

Unavailable

25

BOLT (6X35)

09103-06214

$2.57

26

BOLT (6X70)

09103-06225

$3.00

27

PIN

04211-09149

$1.70

28

COVER, GEAR SHIFT

11381-02F01

Unavailable

29

GASKET

11485-02F10

$4.91

30

BOLT (6X105)

09103-06126

$4.12

31

GASKET

09168-06023

$2.09

32

BOLT (CHROME) | MODEL W/X

01547-06257

$2.09

32

BOLT, FINAL GEAR CASE COVER | MODEL Y/K1/K2/K3 This part replaces 01547-06253.

01547-0625B

$2.50

33

BOLT (CHROME) | MODEL W/X

01547-06357

$2.09

33

BOLT, WATER PUMP | MODEL Y/K1/K2/K3 This part replaces 01547-06353.

01547-0635B

$2.80

34

PIN

04211-09149

$1.70

35

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$6.97

36

O RING

09280-17003

$1.70
