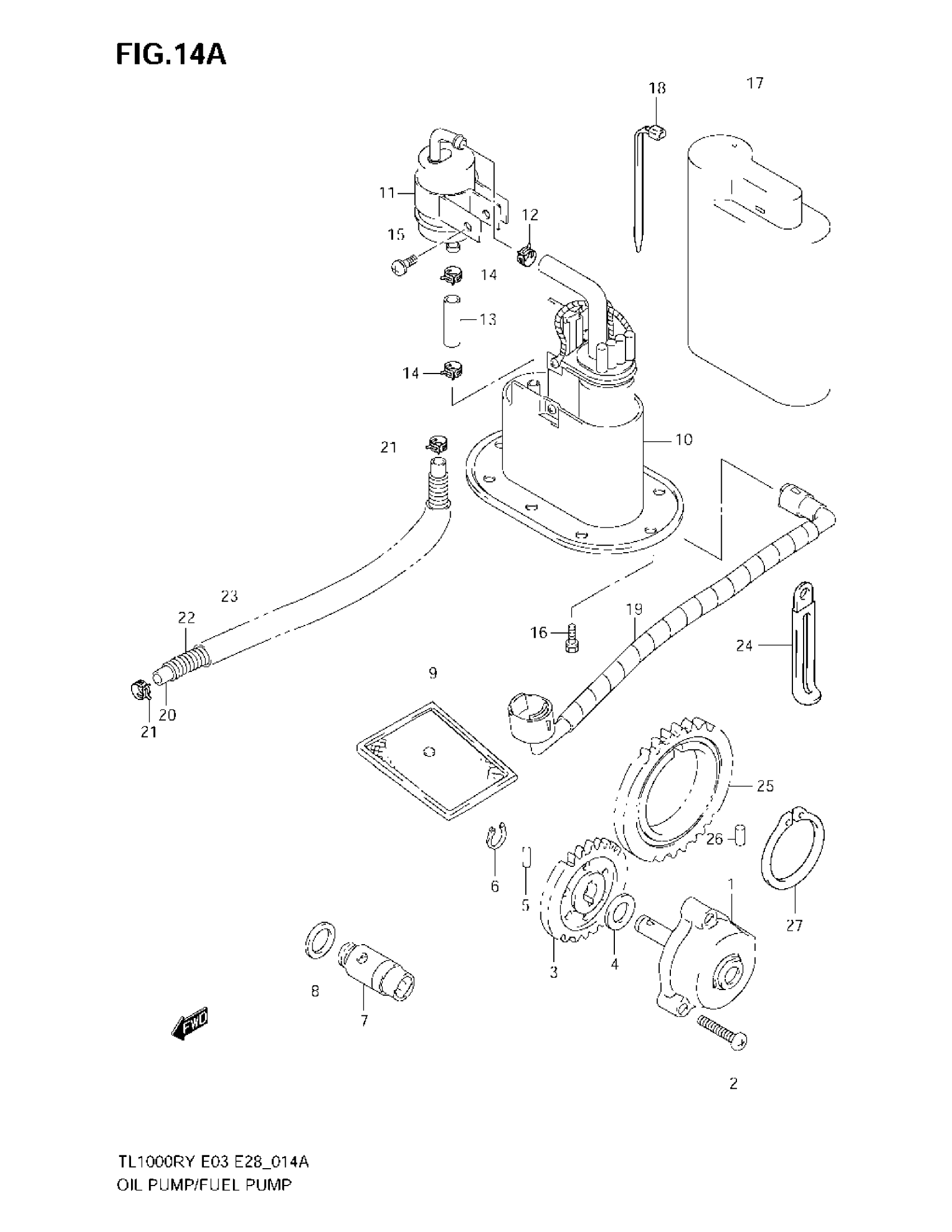

Suzuki TL1000R (2003) OIL PUMP / FUEL PUMP (MODEL X/Y/K1/K2/K3) Diagram

#

Description
Price

1

PUMP ASSY,ENG OIL

16400-02FB0

$208.38

2

SCREW This part replaces 02112-06253.

02112-0625A

$1.80

3

GEAR, OIL PUMP DRIVEN

16331-02F00

$69.38

4

WASHER

09181-10158

$1.97

5

PIN

09261-04009

$1.56

6

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

7

VALVE ASSY, OIL RELIEF

16440-33E00

Unavailable

8

GASKET

09168-16002

$1.91

9

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

10

PUMP ASSY, FUEL | Includes Item(s) 11 - 15

15100-02FB0

$1,146.85

11

FILTER, FUEL

15410-02FA0

$64.59

12

CLIP This part replaces 09401-12409.

09401-12414

$3.26

13

HOSE (7.6X14X600) | L:600->45

09356-76145-600

$37.45

14

CLIP This part replaces 09401-12409.

09401-12414

$3.26

15

SCREW This part replaces 02112-34083.

02112-3408A

$2.38

16

BOLT

09103-05017

$2.86

17

COVER,FUEL PUMP This part replaces 15199-02FA0.

15199-02FA1

$32.83

18

CLAMP, FUEL PUMP COVER

09407-14403

$2.26

19

HOSE, FUEL

15810-02FA0

$84.50

20

HOSE | L:600->340

09355-54115-600

$14.59

21

CLIP

09401-11411

$4.68

22

SPRING This part replaces 09440-13037.

09440-13037-XC0

Unavailable

23

PROTECTOR, FUEL RETURN NO.2

15819-02F00

$5.75

24

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

25

GEAR,OIL PUMP DRIVE

16321-02F00

Unavailable

26

PIN

09261-06002

$1.53

27

CIRCLIP This part replaces 08331-31506.

08331-31509

Unavailable
