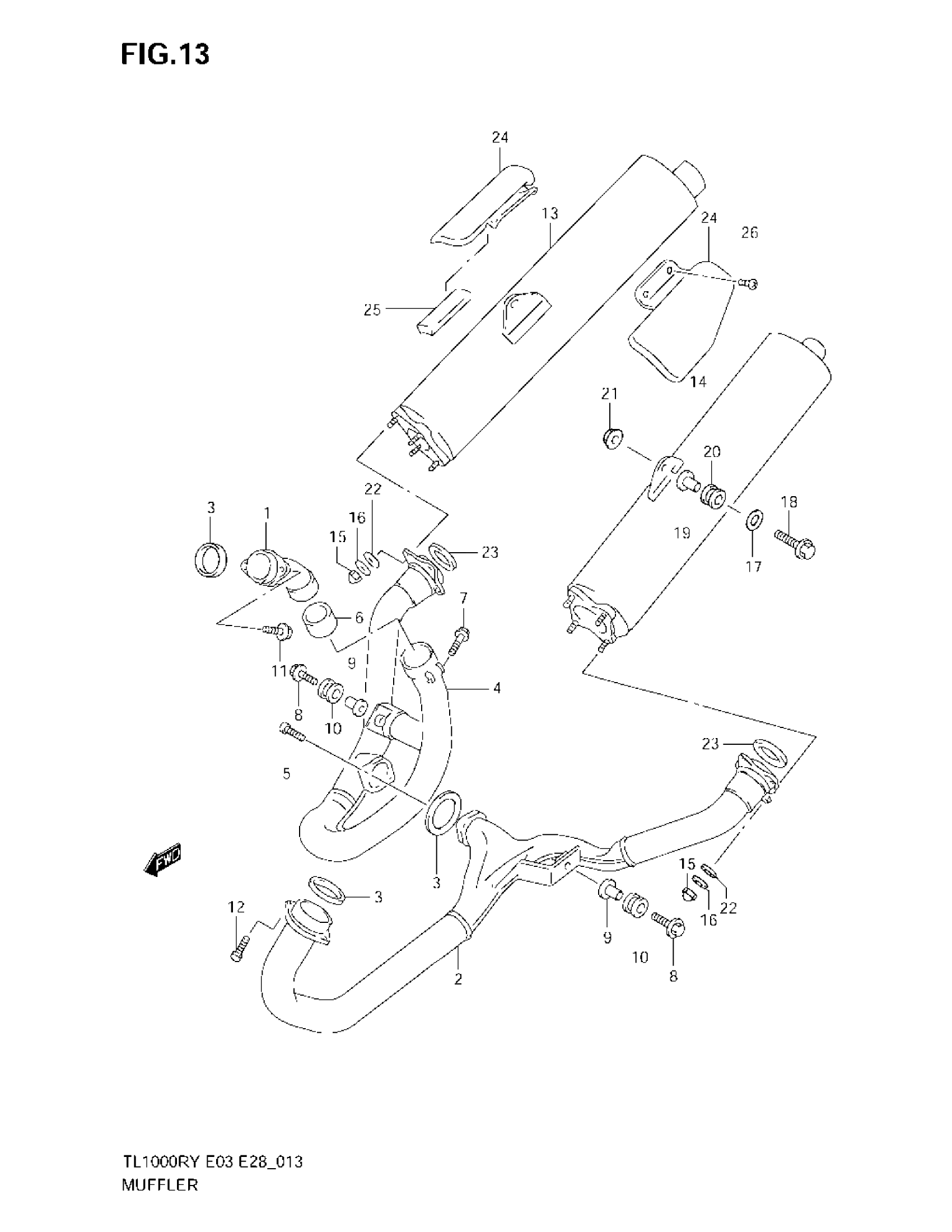

Suzuki TL1000R (2003) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-02F00

Unavailable

2

PIPE, EXHAUST LH

14160-02FA0

Unavailable

3

GASKET

14181-31D00

$10.28

4

PIPE, EXHAUST JOINT

14210-02FA0

Unavailable

5

BOLT, EXHAUST JOINT

14118-73G01

$13.47

6

CONNECTOR

14771-02F00

$21.84

7

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

8

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

9

SPACER

09180-08152

$5.83

10

CUSHION

09320-12048

$5.11

11

BOLT

01550-08257

$2.81

12

BOLT (8X25) This part replaces 09106-08104.

09106-08165

$4.03

13

BODY, MUFFLER RH

14310-02FA0-H01

Unavailable

14

BODY, MUFFLER LH

14340-02FA0-H01

Unavailable

15

NUT | MODEL W/X This part replaces 09159-08101.

09159-08116

$9.00

15

NUT | MODEL Y/K1/K2/K3 This part replaces 09159-08115.

09159-08116

$9.00

16

WASHER

09160-08059

$1.68

17

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

18

BOLT

01550-08457

$4.00

19

SPACER

09180-08156

$6.70

20

CUSHION

09320-12049

$10.68

21

NUT This part replaces 08361-25088.

08361-2508A

$1.97

22

O RING

09280-08012

$3.68

23

GASKET, MUFFLER JOINT

14181-02F00

$6.93

24

PROTECTOR, MUFFLER RH

14780-02FA0

Unavailable

24

PROTECTOR, MUFFLER LH | Includes Item(s) 25

14790-02FA0

Unavailable

25

CUSHION

14785-02FA0

Unavailable

26

SCREW

09139-06091

$3.04
