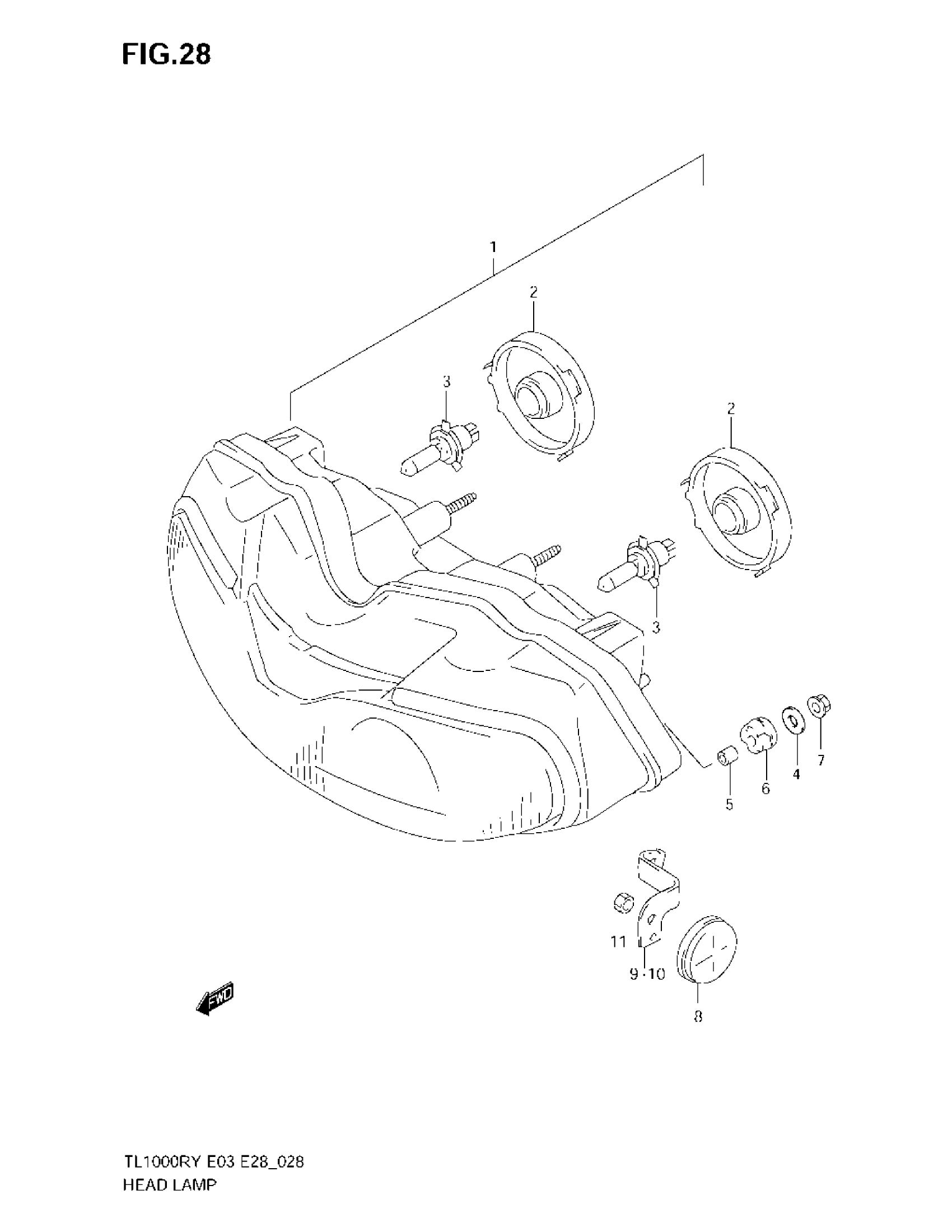

Suzuki TL1000R (2003) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL W This part replaces 35100-02F80-999.

35100-02F82-999

Unavailable

1

HEADLAMP ASSY | MODEL X/Y This part replaces 35100-02F81-999.

35100-02F82-999

Unavailable

1

HEADLAMP ASSY | MODEL K1/K2/K3; Includes Item(s) 2

35100-02F82-999

Unavailable

2

SOCKET, COVER

35125-02F00

$17.28

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

4

.WASHER (6.5X20X1.6) | MODEL W/X

09160-06088

$1.65

4

WASHER (6.5X18X1.60) | MODEL Y/K1/K2/K3

09160-06109

$1.49

5

SPACER (6.5X9X13.5)

09180-06268

$2.19

6

CUSHION

09320-09015

$3.40

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

REFLEX REFLECTOR ASSY, FRONT

35950-14A00

$16.94

9

BRACKET, RH

35956-02F00

Unavailable

10

BRACKET, LH

35957-02F00

Unavailable

11

NUT This part replaces 08310-00053.

08310-0005A

$1.84
