Description

Price

1

HANDLEBAR, RH

56111-33E20

Unavailable

2

HANDLEBAR, LH

56151-33E20

Unavailable

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

BOLT, HANDLEBAR

09103-08269

$2.71

5

BALANCER SET, HANDLEBAR | Includes Item(s) 6 - 11

56200-07831

$113.37

6

SCREW

09127-06018

$3.38

7

EXPANDER, OUTER

56272-10D00

Unavailable

8

SPACER

56276-17D00

$5.07

9

WASHER (6.5X14X2.0)

09160-06126

$1.91

10

EXPANDER, INNER

56272-44500

$4.42

11

NUT

09159-06024

$2.11

12

MIRROR ASSY, REAR VIEW RH

56500-22D11

Unavailable

13

MIRROR ASSY, REAR VIEW LH

56600-22D11

$242.27

14

CUSHION

94576-22D00

$5.44

15

NUT

56619-17C00

$7.72

16

CABLE ASSY, THROTTLE NO.1

58300-02FA0

$31.03

17

CABLE ASSY, THROTTLE NO.2

58300-02FB0

$28.70

18

CABLE, STARTER

58410-02FA0

$47.00

19

CLAMP

09407-18402

$2.19

20

GUIDE, CABLE

58620-02FA0

Unavailable

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

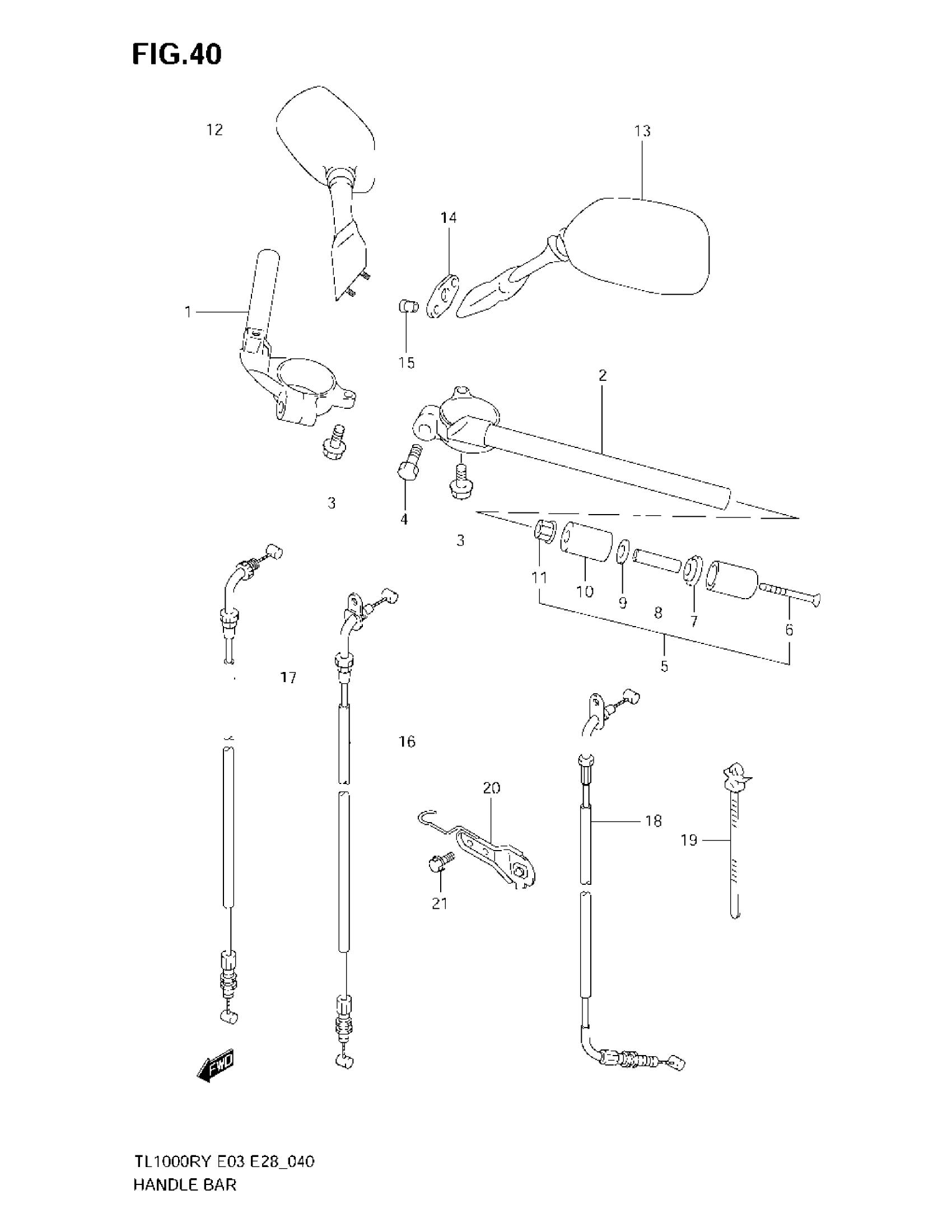

Suzuki TL1000R (2003) HANDLEBAR Diagram

HANDLEBAR, RH

HANDLEBAR, LH

BOLT This part replaces 01550-06163.

BOLT, HANDLEBAR

BALANCER SET, HANDLEBAR | Includes Item(s) 6 - 11

SCREW

EXPANDER, OUTER

SPACER

WASHER (6.5X14X2.0)

EXPANDER, INNER

NUT

MIRROR ASSY, REAR VIEW RH

MIRROR ASSY, REAR VIEW LH

CUSHION

NUT

CABLE ASSY, THROTTLE NO.1

CABLE ASSY, THROTTLE NO.2

CABLE, STARTER

CLAMP

GUIDE, CABLE

BOLT, CLAMP This part replaces 01550-06123.
