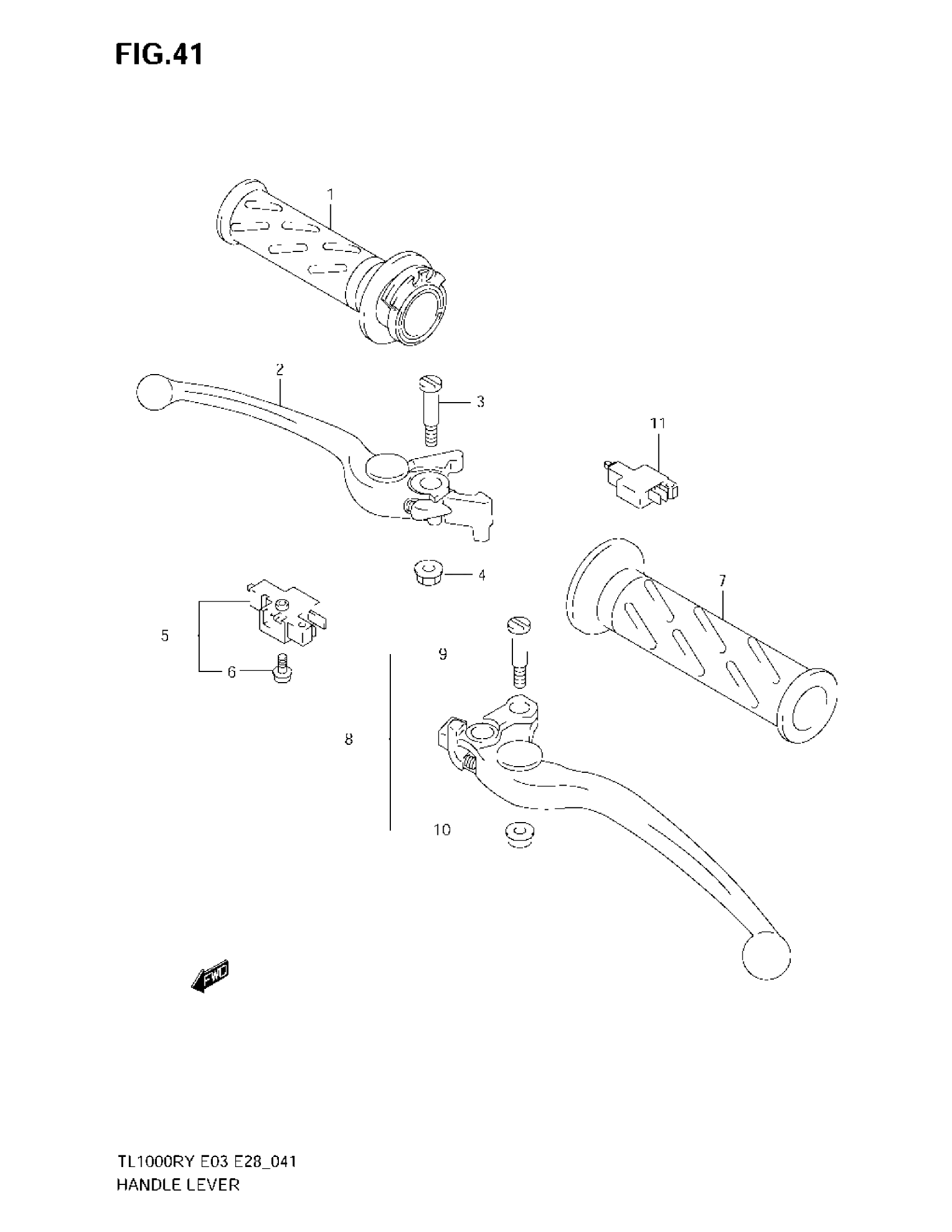

Suzuki TL1000R (2003) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, ADJUST | MODEL W This part replaces 57420-33E00.

57420-33E01

$55.27

2

LEVER, ADJUST | MODEL X/Y/K1/K2/K3

57420-33E01

$55.27

3

BOLT, KNOCKER

57431-17C00

$7.11

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C00.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

8

LEVER ASSY, CLUTCH | Includes Item(s) 9 - 10

57500-02FA0

$62.23

9

BOLT

57431-17C00

$7.11

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

SWITCH ASSY,CLUTCH

57560-02FA0

$23.58
