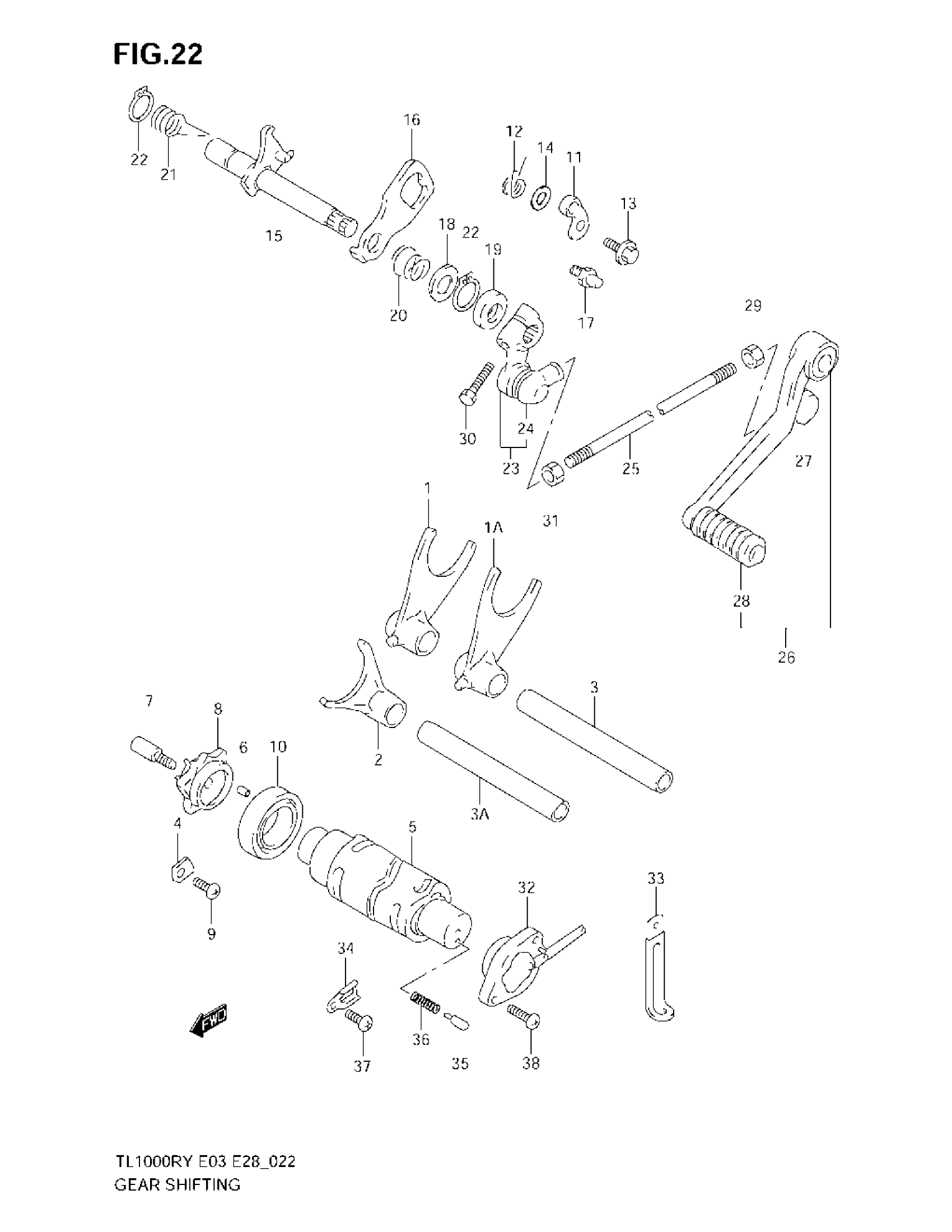

Suzuki TL1000R (2003) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT This part replaces 25211-17E01.

25211-17E02

$72.60

1A

FORK, GEAR SHIFT NO.1 This part replaces 25211-17E10.

25211-35F00

$89.95

2

FORK, GEAR SHIFT NO.3 This part replaces 25231-17E11.

25231-35F00

$105.82

3

SHAFT, GEAR SHIFT FORK NO.1

25411-02F20

$19.55

3A

SHAFT, GEAR SHIFT FORK NO.2

25411-02F10

Unavailable

4

RETAINER, SHIFT CAM

24741-21A00

$2.81

5

CAM, GEAR SHIFT | Includes Item(s) 6

25310-02F10

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

STOPPER, SHIFT CAM

25312-12C00

$8.05

8

PLATE, GEAR SHIFT

25381-13E10

$55.65

9

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

10

BEARING

08113-69050

$35.66

11

STOPPER, SHIFT CAM

25350-26D01

$16.22

12

SPRING, SHIFT CAM STOPPER This part replaces 25355-13E00.

25355-13E10

Unavailable

13

BOLT (6X14.3)

09111-06041

$2.61

14

WASHER

08211-06141

$1.59

15

SHAFT,GEAR SHIF This part replaces 25510-02F11.

25510-02F1V

$111.53

16

PLATE, GEAR SHIFT

25512-13E11

$30.26

17

STOPPER, ARM | MODEL W/X/Y This part replaces 25671-01000.

25671-01011

$4.48

17

STOPPER, GEAR SHIFT | MODEL K1/K2/K3

25671-01011

$4.48

18

WASHER, GEAR SHIFT RH | 14X22X1.0

09181-14167

$2.53

19

SEAL, SHIFT SHAFT OIL | 14X22X6.0

09283-14006

$6.70

20

SPRING. GEAR SHIFT PLATE

09440-17009

$1.71

21

SPRING, SHIFT SHAFT

09444-20001

$5.24

22

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

23

ARM,GEAR SHIFT | Includes Item(s) 24 This part replaces 25520-19C02.

25520-19C03

$34.66

24

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

25

ROD, GEAR SHIFT LINK

25525-19D20

$12.48

26

LEVER ASSY,GEAR | Includes Item(s) 27 - 28 This part replaces 25600-33E00.

25600-33E01

$142.81

27

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

28

RUBBER

25652-20C00

$5.44

29

NUT | MODEL W/X/Y/K1/K2

09140-06011

$1.49

29

NUT | MODEL K3

09140-06025

$2.05

30

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

$1.78

31

.NUT

08310-00067

$2.13

32

BASE ASSY, GEAR SHIFT TERM

37730-02F10

$141.12

33

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

34

CLAMP, GEAR SHIFT

31497-45000

$1.92

35

CONTACT, GEAR SHIFT

09209-05011

$2.20

36

SPRING, GEAR SHIFT SW

09440-04010

$1.54

37

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

38

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49
