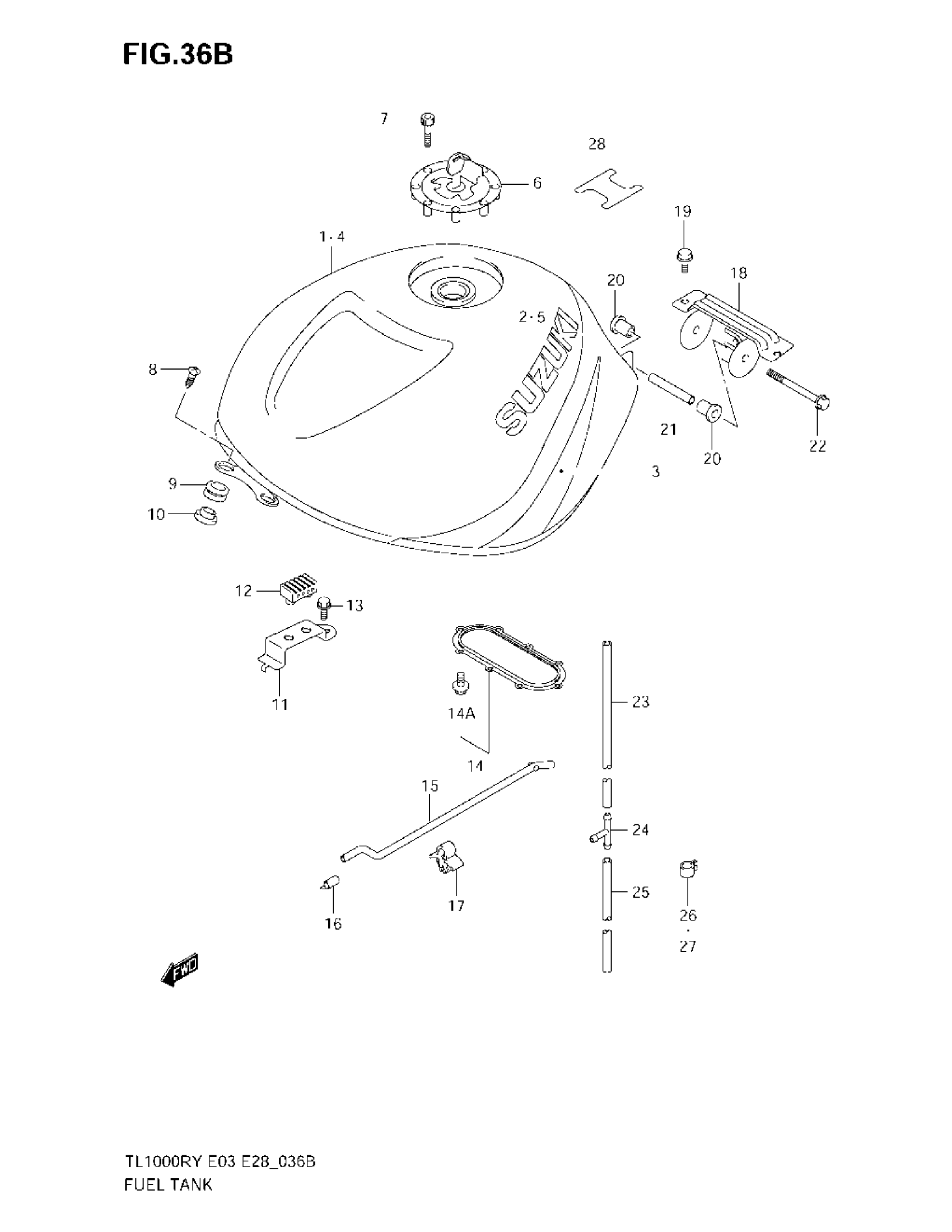

Suzuki TL1000R (2003) FUEL TANK (MODEL Y) Diagram

TANK ASSY,FUEL This part replaces 44100-02FJ0-L99.

44110-02FA0-13L

Unavailable

TANK ASSY, FUEL | E33; Includes Item(s) 2 - 3

44100-02FK0-L99

Unavailable

EMBLEM (WHITE) | FOR L99 This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

TAPE SET, FUEL TANK (BLUE) | FOR L99

68110-02FB0-1LE

Unavailable

TANK ASSY,FUEL This part replaces 44100-02FL0-Y9H.

44110-02FA0-13L

Unavailable

TANK ASSY, FUEL (YELLOW) | E33; Includes Item(s) 5

44100-02FM0-Y9H

Unavailable

EMBLEM (BLACK) | FOR Y9H This part replaces 68111-12C00-Y7L.

68111-12C30-Y7L

Unavailable

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

BOLT, CAP

09106-05017

$2.83

BOLT, FRONT

09139-06029

$5.36

CUSHION

09320-09009

$4.64

SPACER

09169-06062

$2.50

BRACKET, SIDE CUSHION

44531-02FA0

Unavailable

CUSHION, SIDE

45149-31300

$3.56

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

PACKING SET,FUE | Includes Item(s) 14A This part replaces 44590-02840.

44590-02841

$47.20

BOLT This part replaces 15211-02F00..

09103-05017

$2.86

STAY, FUEL TANK

44574-33E01

$15.45

PLUG

09251-05006

$5.85

CLAMP

09403-05310

$2.66

BRACKET, REAR

44550-02FA1

Unavailable

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

$11.60

SPACER, JOINT

44561-33E10

Unavailable

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

HOSE,FUEL TANK This part replaces 44423-02F01.

44423-02F02

Unavailable

3 WAY, DRAIN HOSE

09367-08005

$4.83

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

CLAMP

09403-14408

Unavailable

CLAMP

09403-24302

Unavailable

LABEL, FUEL

44261-02F00

Unavailable

COLOR :

SPECIAL NOTE

Unavailable
