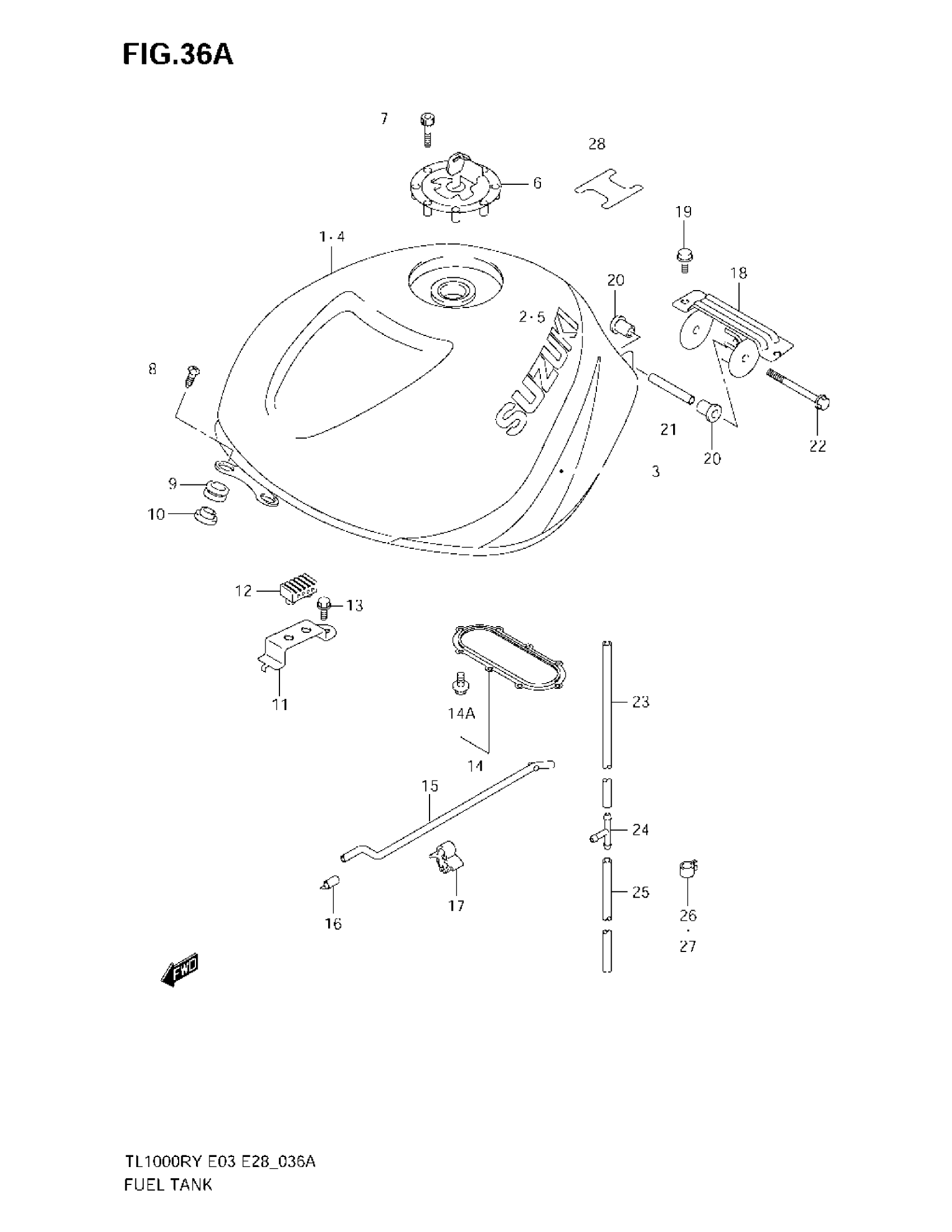

Suzuki TL1000R (2003) FUEL TANK (MODEL X) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-02FE0-L99

Unavailable

1

TANK ASSY, FUEL | E33; Includes Item(s) 2 - 3

44100-02FG0-L99

Unavailable

2

EMBLEM (WHITE) | FOR L99 This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

3

NO DESCRIPTION AVAILABLE | FOR L99 This part replaces 68110-02FA0-1LE.

68110-02FA1-1LE

Unavailable

4

TANK ASSY,FUEL This part replaces 44100-02FC0-163.

44110-02FA0-13L

Unavailable

4

TANK ASSY,FUEL This part replaces 44100-02FC0-33J.

44110-02FA0-13L

Unavailable

4

TANK ASSY, FUEL (YELLOW) | E33

44100-02FD0-163

Unavailable

4

TANK ASSY, FUEL (BLACK) | E33; Includes Item(s) 5 - 5

44100-02FD0-33J

Unavailable

5

EMBLEM | FOR 163 This part replaces 68111-12C00-20G.

68111-12C30-20G

Unavailable

5

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 68111-12C00-Y2D.

68111-12C30-Y2D

Unavailable

6

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

6

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

7

BOLT, CAP

09106-05017

$2.83

8

BOLT, FRONT

09139-06029

$5.36

9

CUSHION

09320-09009

$4.64

10

SPACER

09169-06062

$2.50

11

BRACKET, SIDE CUSHION

44531-02FA0

Unavailable

12

CUSHION, SIDE

45149-31300

$3.56

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

PACKING SET,FUE | Includes Item(s) 14A This part replaces 44590-02840.

44590-02841

$47.20

14A

BOLT This part replaces 15211-02F00..

09103-05017

$2.86

15

STAY, FUEL TANK

44574-33E01

$15.45

16

PLUG

09251-05006

$5.85

17

CLAMP

09403-05310

$2.66

18

BRACKET, REAR

44550-02FA1

Unavailable

19

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

20

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

$11.60

21

SPACER, JOINT

44561-33E10

Unavailable

22

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

23

HOSE,FUEL TANK This part replaces 44423-02F01.

44423-02F02

Unavailable

24

3 WAY, DRAIN HOSE

09367-08005

$4.83

25

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

26

CLAMP

09403-14408

Unavailable

27

CLAMP

09403-24302

Unavailable

28

LABEL, FUEL

44261-02F00

Unavailable

29

COLOR :

SPECIAL NOTE

Unavailable
