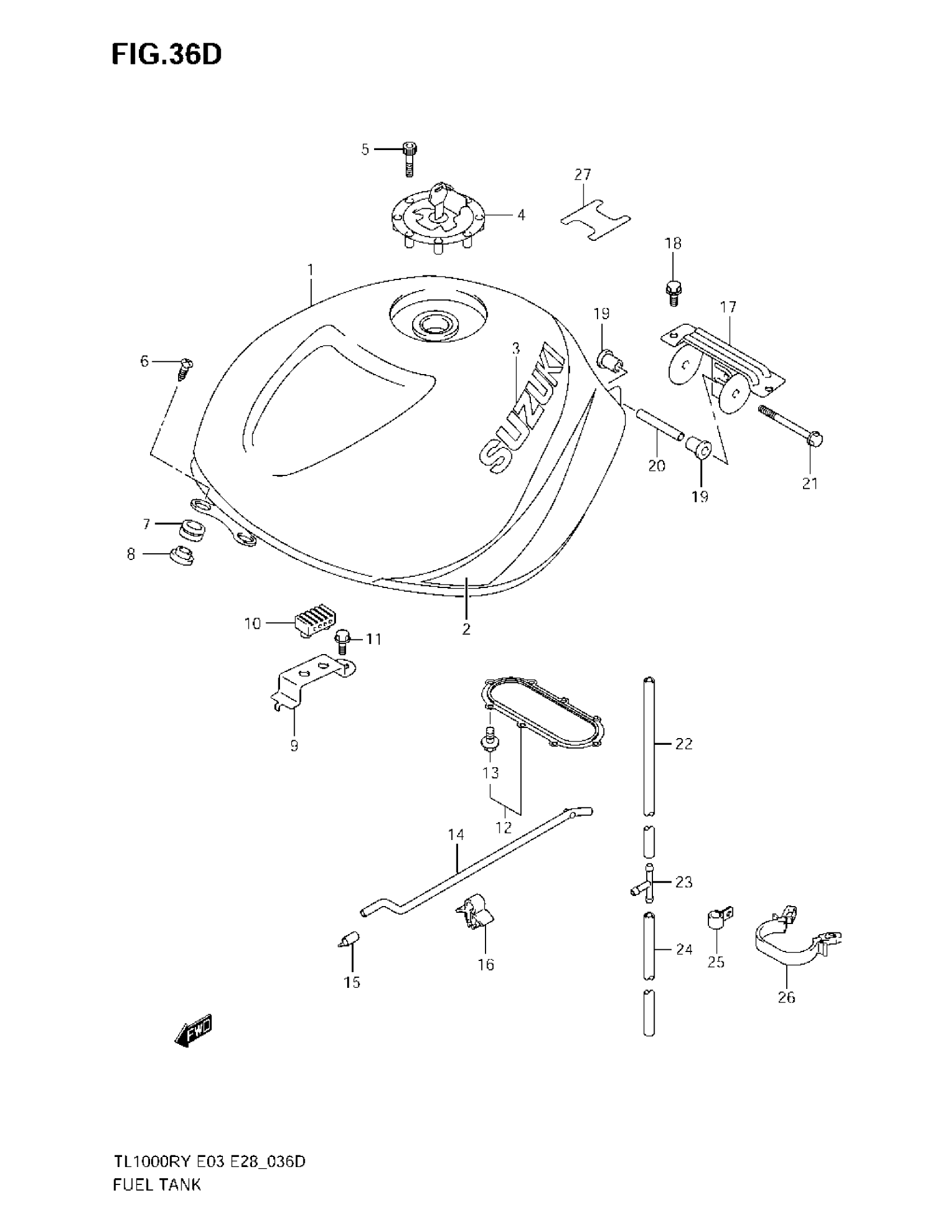

Suzuki TL1000R (2003) FUEL TANK (MODEL K2) Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-02FQ0-L99.

44110-02FA0-13L

Unavailable

1

TANK ASSY, FUEL | E33

44100-02FS0-L99

Unavailable

1

TANK ASSY, FUEL (YELLOW)

49100-02FA0-Y9H

Unavailable

1

TANK ASSY, FUEL (YELLOW) | E33; Includes Item(s) 2 - 3

49100-02FB0-Y9H

Unavailable

2

TAPE SET, FUEL TANK (BLUE) | FOR L99

68110-02F20-1LE

Unavailable

2

TAPE SET, FUEL TANK (SILVER) | FOR Y9H

68110-02F20-YD8

Unavailable

3

EMBLEM (WHITE) | FOR L99

68111-12C30-0JW

$21.47

3

EMBLEM (BLACK) | FOR Y9H

68111-12C30-Y7L

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

4

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

5

BOLT, CAP

09106-05017

$2.83

6

BOLT, FRONT

09139-06029

$5.36

7

CUSHION

09320-09009

$4.64

8

SPACER

09169-06062

$2.50

9

BRACKET, SIDE CUSHION

44531-02FA0

Unavailable

10

CUSHION, SIDE

45149-31300

$3.56

11

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

12

PACKING SET,FUE | Includes Item(s) 13 This part replaces 44590-02840.

44590-02841

$47.20

13

BOLT

09103-05017

$2.86

14

STAY, FUEL TANK

44574-33E01

$15.45

15

PLUG

09251-05006

$5.85

16

CLAMP

09403-05310

$2.66

17

BRACKET, REAR

44550-02FA1

Unavailable

18

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

19

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

$11.60

20

SPACER, JOINT

44561-33E10

Unavailable

21

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

22

HOSE,FUEL TANK This part replaces 44423-02F01.

44423-02F02

Unavailable

23

3 WAY, DRAIN HOSE

09367-08005

$4.83

24

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

25

CLAMP

09403-14408

Unavailable

26

CLAMP

09403-24302

Unavailable

27

LABEL, FUEL

44261-02F00

Unavailable

28

COLOR :

SPECIAL NOTE

Unavailable
