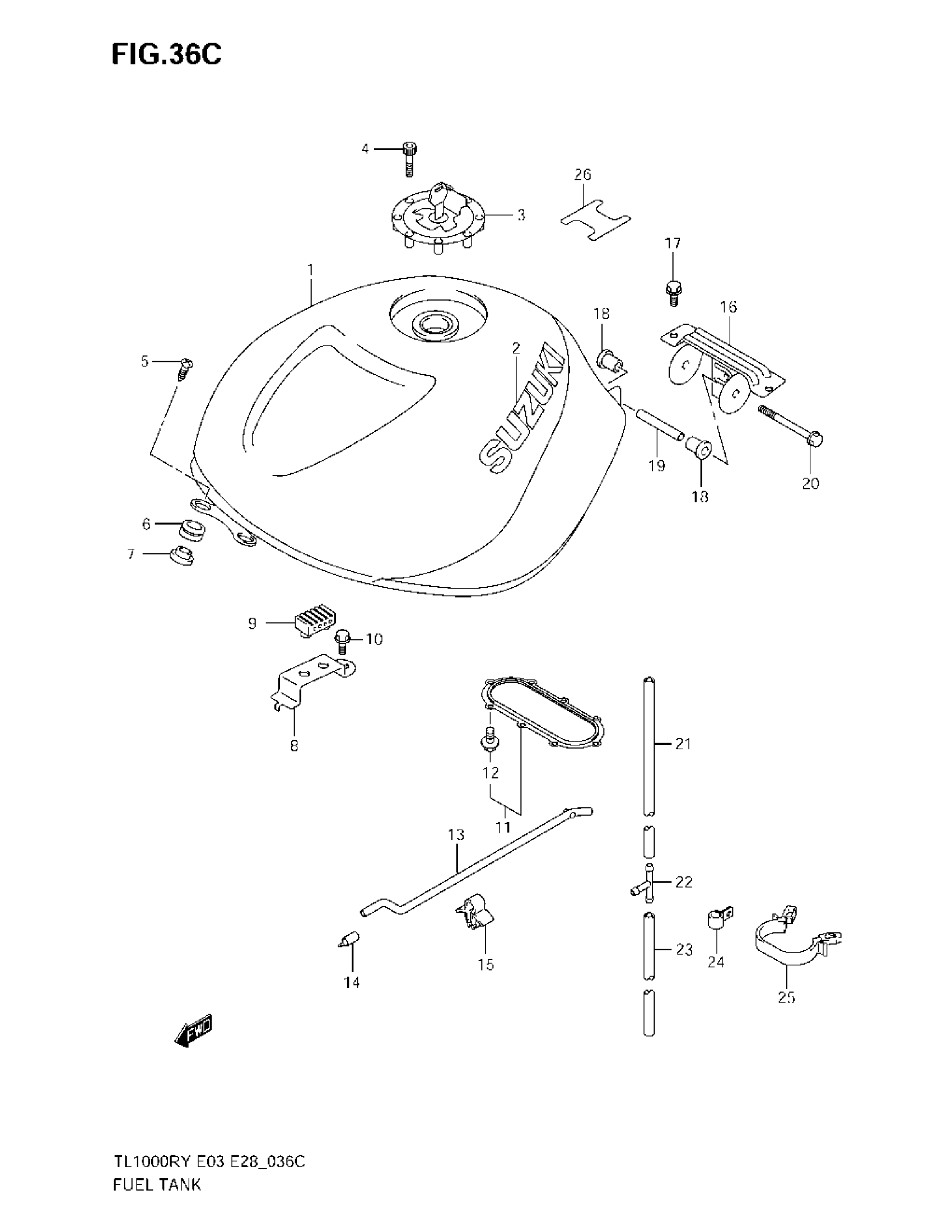

Suzuki TL1000R (2003) FUEL TANK (MODEL K1) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-02FN0-L99.

44100-02F70-L99

Unavailable

1

(CA)TANK ASSY,F | E33 This part replaces 44100-02FP0-L99.

44100-02F80-L99

Unavailable

1

TANK ASSY, FUEL (YELLOW)

44100-02F50-Y9H

Unavailable

1

TANK ASSY, FUEL (YELLOW) | E33; Includes Item(s) 2 - 2

44100-02F60-Y9H

Unavailable

2

EMBLEM (WHITE) | FOR L99 This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

2

EMBLEM (BLACK) | FOR Y9H This part replaces 68111-12C00-Y7L.

68111-12C30-Y7L

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-33870.

44200-33872

$211.40

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

4

BOLT, CAP

09106-05017

$2.83

5

BOLT, FRONT

09139-06029

$5.36

6

CUSHION

09320-09009

$4.64

7

SPACER

09169-06062

$2.50

8

BRACKET, SIDE CUSHION

44531-02FA0

Unavailable

9

CUSHION, SIDE

45149-31300

$3.56

10

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

11

PACKING SET,FUE | Includes Item(s) 12 This part replaces 44590-02840.

44590-02841

$47.20

12

BOLT This part replaces 15211-02F00..

09103-05017

$2.86

13

STAY, FUEL TANK

44574-33E01

$15.45

14

PLUG

09251-05006

$5.85

15

CLAMP

09403-05310

$2.66

16

BRACKET, REAR

44550-02FA1

Unavailable

17

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

18

CUSHION,FUEL TANK RR This part replaces 44541-02F00.

44541-02F01

$11.60

19

SPACER, JOINT

44561-33E10

Unavailable

20

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

21

HOSE,FUEL TANK This part replaces 44423-02F01.

44423-02F02

Unavailable

22

3 WAY, DRAIN HOSE

09367-08005

$4.83

23

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

24

CLAMP

09403-14408

Unavailable

25

CLAMP

09403-24302

Unavailable

26

COLOR :

SPECIAL NOTE

Unavailable
