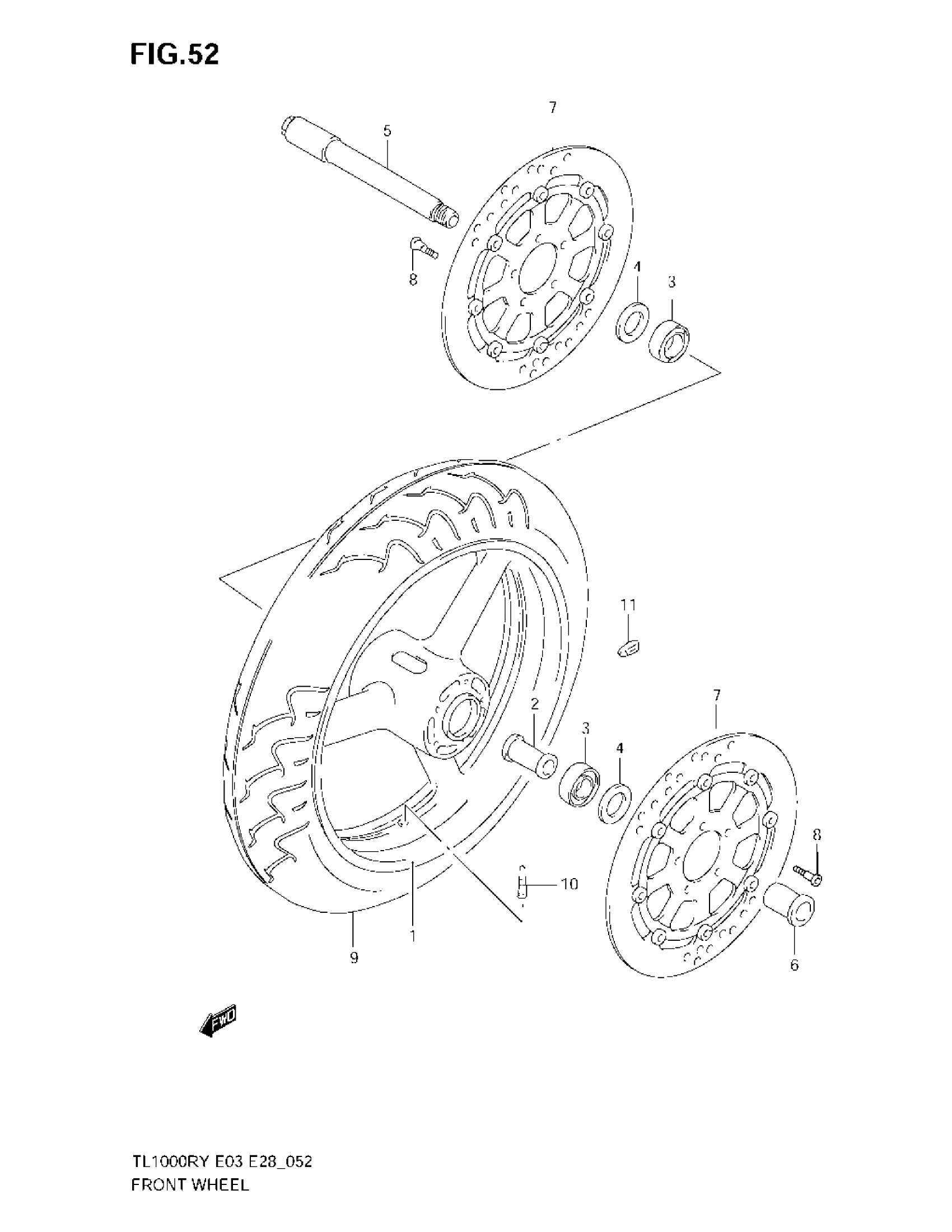

Suzuki TL1000R (2003) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (17XMT3.50) (SILVER) | MODEL W/X FOR 163->54111-33E10-Y6G This part replaces 54111-33E00-Y6G.

54111-33E11-Y6G

Unavailable

1

WHEEL,FR,17M/CX | MODEL W/X FOR L99->54111-33E10-28W This part replaces 54111-33E00-28W.

54111-33E11-28W

Unavailable

1

WHEEL, FRONT (17XMT3.50) (SILVER) | MODEL Y/K1/K2 FOR Y9H This part replaces 54111-33E10-Y6G.

54111-33E11-Y6G

Unavailable

1

WHEEL,FR,17M/CX | MODEL Y/K1/K2/K3 FOR L99 This part replaces 54111-33E10-28W.

54111-33E11-28W

Unavailable

1

WHEEL, FRONT (17XMT3.50) (BLACK) | MODEL K3 FOR KU2 This part replaces 54111-33E10-019.

54111-33E11-019

$1,015.88

2

SPACER, HUB BEARING

54731-33E10

$41.11

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-33E00

$156.07

6

NUT, AXLE

54712-33E00

$58.96

7

DISC, FRONT BRAKE | FOR 163,Y9H,KU2

59210-33E30

$625.47

7

DISC, FRONT BRAKE | FOR L99

59210-33E40

Unavailable

8

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

9

TIRE, FRONT

55110-02FB0

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

BALANCER (10G)

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
