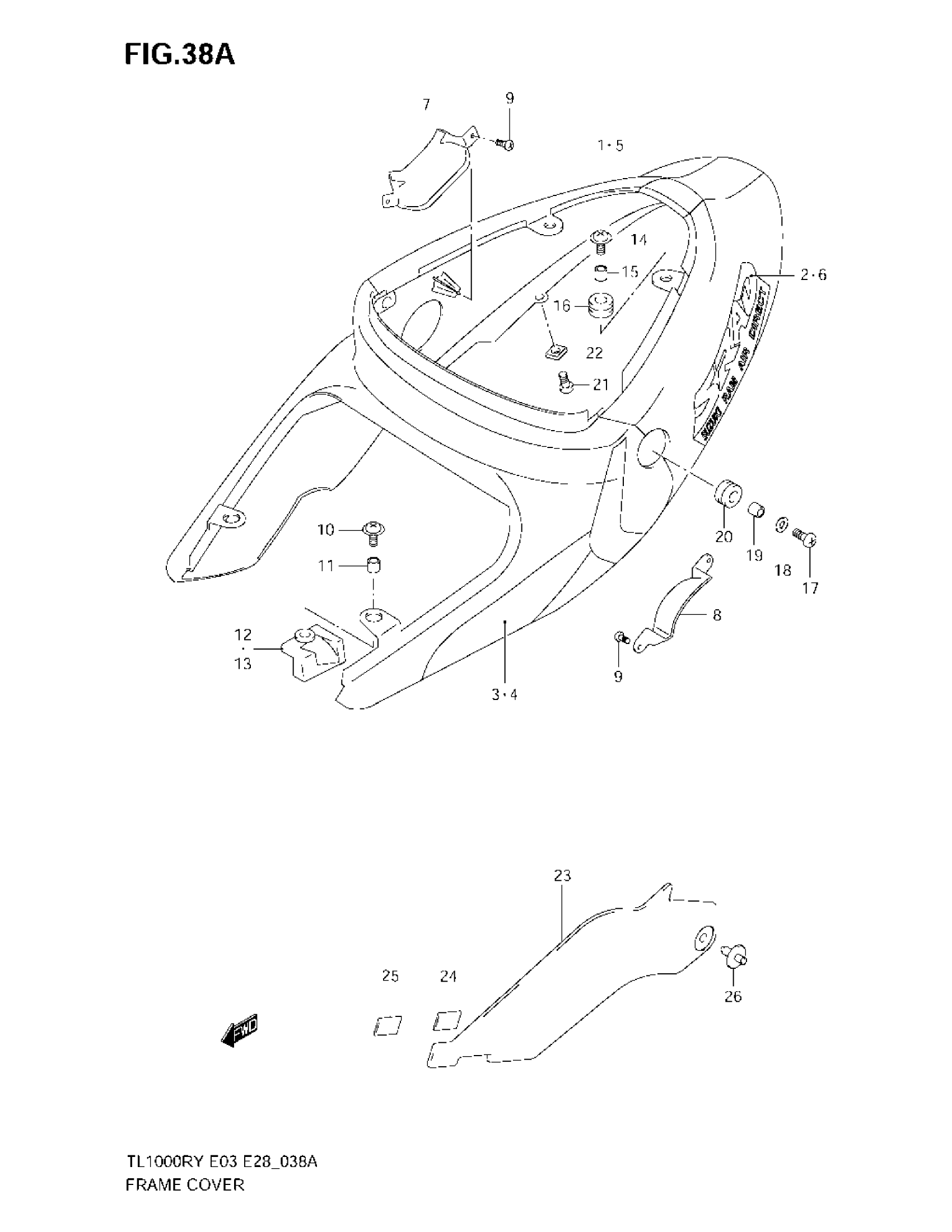

Suzuki TL1000R (2003) FRAME COVER (MODEL X) Diagram

#

Description
Price

1

COVER, FRAME (WHITE) | FOR L99; Includes Item(s) 2 - 4

47110-02FC0-0JW

Unavailable

2

EMBLEM

68131-33E30-K8S

Unavailable

3

TAPE SET, RH

68130-02FA0-D4Z

Unavailable

4

TAPE SET, LH

68140-02FA0-D4Z

Unavailable

5

COVER, FRAME | FOR 163

47110-02FD0-N0W

Unavailable

5

COVER, FRAME | FOR 33J; Includes Item(s) 6 - 6

47110-02FD0-N0Y

Unavailable

6

EMBLEM | FOR N0W

68131-02F30-N1A

Unavailable

6

EMBLEM | FOR N0Y

68131-02F30-N1B

Unavailable

7

CAP, RH

47511-02FA0

Unavailable

8

CAP, LH

47521-02FA0

Unavailable

9

SCREW This part replaces 03541-04163.

03541-0416A

$1.49

10

SCREW, FRONT

09136-06022

$2.21

11

SPACER

09180-06263

$2.03

12

CUSHION,FRAME C This part replaces 47161-02FA0.

47161-02FA1

Unavailable

13

CUSHION,FRAME C This part replaces 47261-02FA0.

47261-02FA1

Unavailable

14

SCREW, UPPER

09136-06105

$1.97

15

SPACER

09180-06286

$2.50

16

CUSHION

09320-10045

$3.76

17

SCREW, SIDE

09139-06071

$4.41

18

WASHER

09160-06054

$1.62

19

SPACER

09180-06258

$1.81

20

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

21

CLIP, REAR

09409-07313

$3.50

22

NUT

09148-05038

$1.97

23

COVER, FRAME FRONT

47321-02FA0

Unavailable

24

FASTENER, NO.1

47322-02FA0

Unavailable

25

FASTENER, NO.2

47323-02FA0

Unavailable

26

CLIP, FRONT (GRAY)

09409-07330-6GS

Unavailable

27

COLOR :

SPECIAL NOTE

Unavailable
