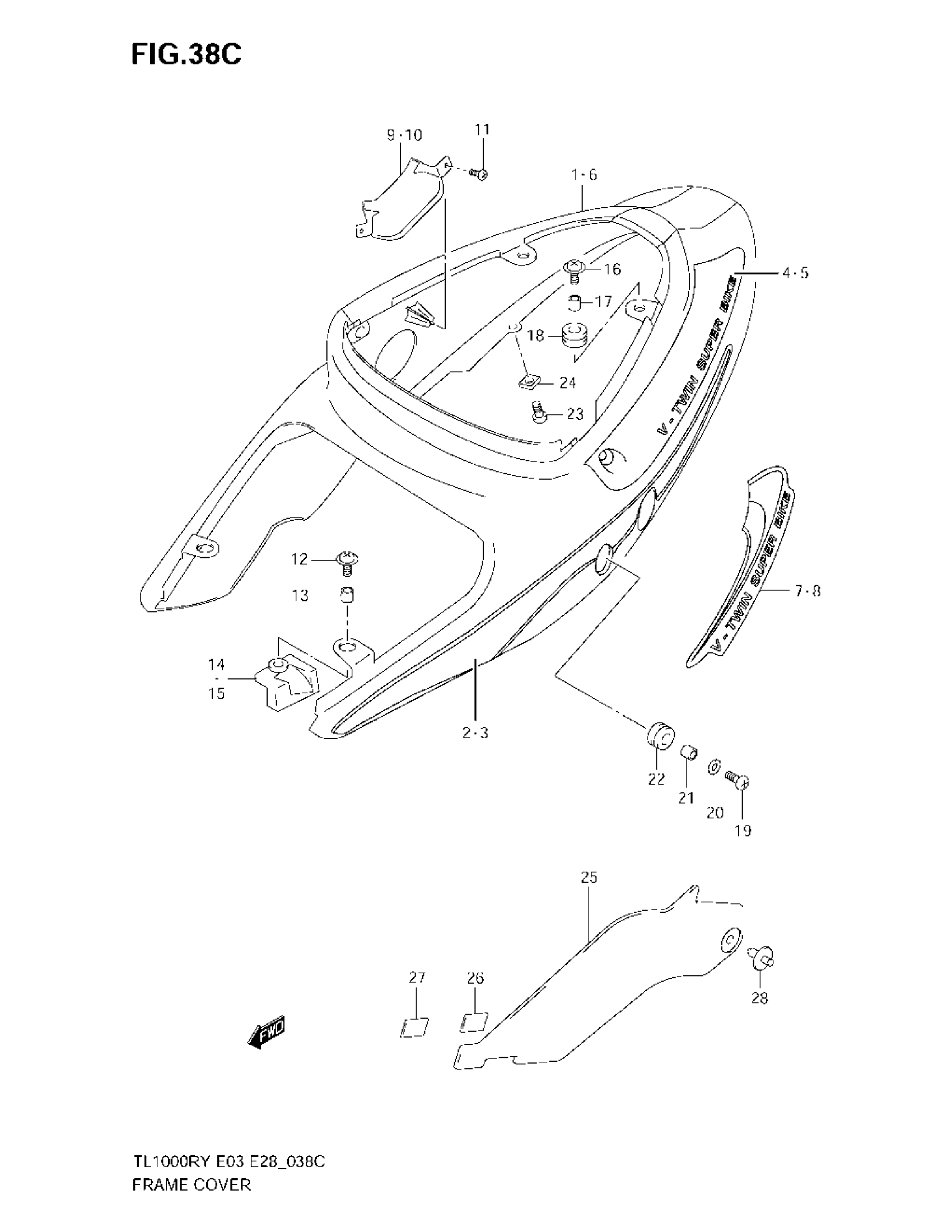

Suzuki TL1000R (2003) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER, FRAME | FOR L99; Includes Item(s) 2 - 5

47110-02FG0-019

Unavailable

2

TAPE SET, RH LOWER

68130-02FD0-D4Z

Unavailable

3

TAPE SET, LH LOWER

68140-02FD0-D4Z

Unavailable

4

TAPE SET, RH | FOR L99

68135-02FD0-3SP

Unavailable

5

TAPE SET, LH | FOR L99

68145-02FD0-3SP

Unavailable

6

COVER, FRAME (YELLOW) | FOR Y9H; Includes Item(s) 7 - 8

47110-02FH0-Y9H

Unavailable

7

TAPE, RH

68135-02FE0-FL7

Unavailable

8

TAPE, LH

68145-02FE0-FL7

Unavailable

9

CAP, RH

47511-02FA0

Unavailable

10

CAP, LH

47521-02FA0

Unavailable

11

SCREW This part replaces 03541-04163.

03541-0416A

$1.49

12

SCREW, FRONT

09136-06022

$2.21

13

SPACER

09180-06263

$2.03

14

CUSHION,FRAME C This part replaces 47161-02FA0.

47161-02FA1

Unavailable

15

CUSHION,FRAME C This part replaces 47261-02FA0.

47261-02FA1

Unavailable

16

SCREW, UPPER

09136-06105

$1.97

17

SPACER

09180-06286

$2.50

18

CUSHION

09320-10045

$3.76

19

SCREW, SIDE

09139-06071

$4.41

20

WASHER

09160-06054

$1.62

21

SPACER

09180-06258

$1.81

22

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

23

CLIP, REAR

09409-07313

$3.50

24

NUT

09148-05038

$1.97

25

COVER, FRAME FRONT

47321-02FA0

Unavailable

26

FASTENER, NO.1

47322-02FA0

Unavailable

27

FASTENER, NO.2

47323-02FA0

Unavailable

28

CLIP, FRONT (GRAY)

09409-07330-6GS

Unavailable

29

COLOR :

SPECIAL NOTE

Unavailable
