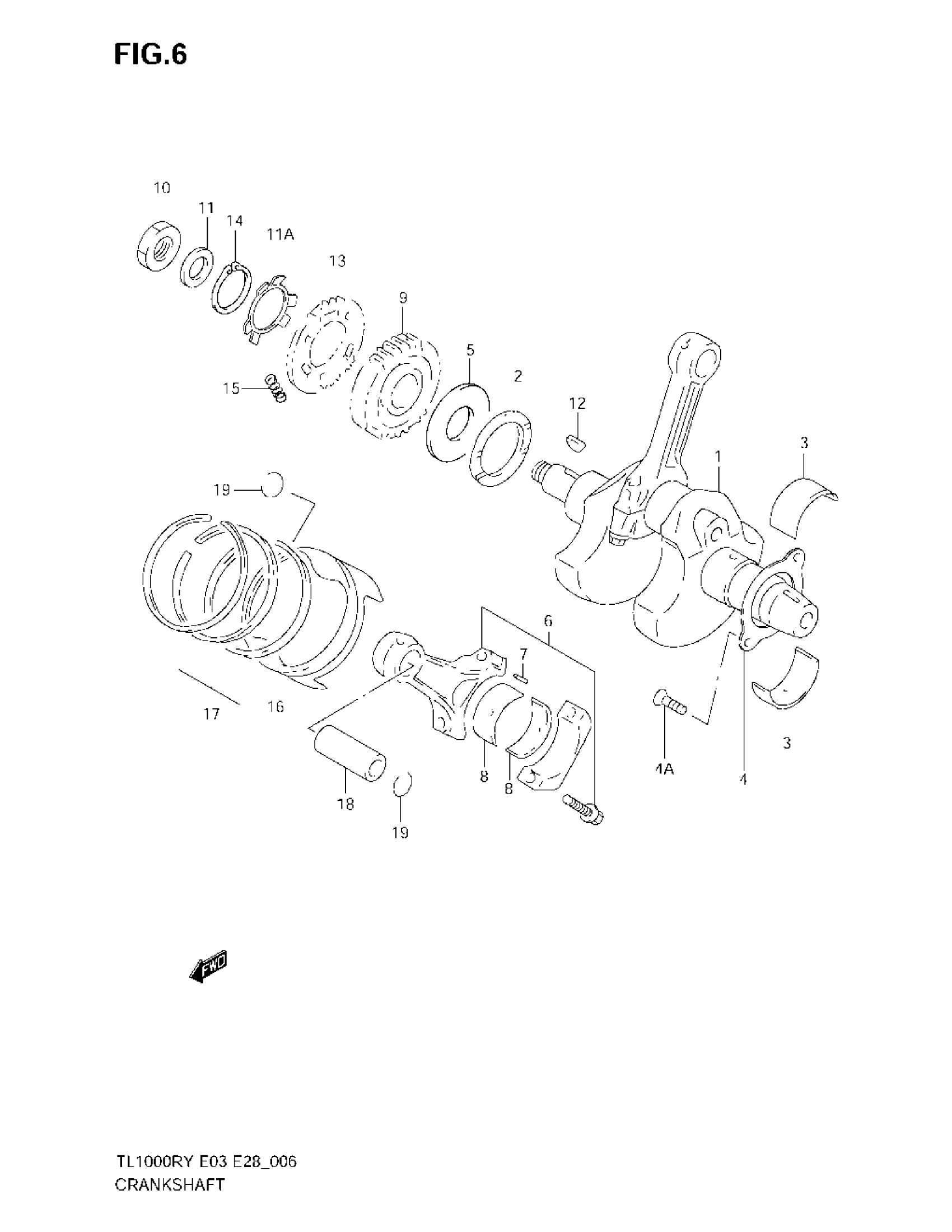

Suzuki TL1000R (2003) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | *SEE NOTE; Includes Item(s) 2 - 2

12000-02821

Unavailable

2

WASHER, CRANK THRUST (T:1.94

09160-48001

Unavailable

2

WASHER, CRANK THRUST (T:1.96

09160-48002

Unavailable

2

WASHER, CRANK THRUST (T:1.99

09160-48003

Unavailable

2

WASHER, CRANK THRUST (T:2.01

09160-48004

Unavailable

2

WASHER, CRANK THRUST (T:2.04

09160-48005

Unavailable

2

WASHER, CRANK THRUST (T:2.06

09160-48006

$30.35

2

WASHER, CRANK THRUST (T:2.09

09160-48007

Unavailable

2

WASHER, CRANK THRUST (T:2.11

09160-48008

Unavailable

2

WASHER, CRANK THRUST (T:2.14

09160-48009

Unavailable

2

WASHER, CRANK THRUST (T:2.16

09160-48010

$30.35

3

BEARING, CRANKSHAFT (GREEN) | *SEE NOTE

12229-02F21-0A0

Unavailable

3

BEARING, CRANKSHAFT (BLACK) | *SEE NOTE

12229-02F21-0B0

$27.70

3

BEARING, CRANKSHAFT (BROWN) | *SEE NOTE

12229-02F21-0C0

$27.70

4

RETAINER, CRANKSHAFT BEARING

12541-02F10

Unavailable

4A

SCREW, BEARING RETAINER

09126-06011

$2.03

5

WASHER

12652-02F00

Unavailable

6

CONNECTING ROD ASSY | Includes Item(s) 7

12160-02F12

Unavailable

7

PIN

12165-27A50

$1.54

8

BEARING, CRANK PIN (GREEN) | *SEE NOTE This part replaces 12164-02F11-0A0.

12164-02F12-0A0

Unavailable

8

BEARING, CRANK PIN (BLACK) | *SEE NOTE This part replaces 12164-02F11-0B0.

12164-02F12-0B0

$21.84

8

BEARING, CRANK PIN (BROWN) | *SEE NOTE This part replaces 12164-02F11-0C0.

12164-02F12-0C0

$25.68

8

BEARING, CRANK PIN (YELLOW) | *SEE NOTE This part replaces 12164-02F11-0D0.

12164-02F12-0D0

$25.68

9

GEAR, PRIMARY DRIVE | MODEL W/X/Y This part replaces 21111-02F10.

21111-02F11

Unavailable

9

GEAR, PRIMARY DRIVE | MODEL K1/K2/K3

21111-02F11

Unavailable

10

NUT

09140-22012

$13.20

11

WASHER

09164-22007

$7.35

11A

WASHER, WAVE

21114-02F00

$10.65

12

KEY

09420-06001

$9.27

13

GEAR, PRIMARY DRIVE SCISSORS

21112-02F00

Unavailable

14

CIRCLIP This part replaces 08331-31406.

08331-31409

$3.58

15

SPRING

09440-07001

$2.38

16

PISTON

12111-02F11-0F0

Unavailable

17

RING SET, PISTON

12140-02F42

$74.78

18

PIN, PISTON

12151-02F00

$29.82

19

CIRCLIP

09381-22002

$1.65

THERE IS A BEARING KIT FOR

SPECIAL NOTE

Unavailable
